Dell Precision 5820 Tower Rack Rails Installation Guide

Summary

This installation guide provides comprehensive documentation for the Precision 5820. The document covers safety instructions and precautions, installation procedures, regulatory compliance information. Regulatory compliance and safety information are also provided. This documentation is intended for end users and system administrators, system installers and administrators. The manual provides detailed guidance to ensure proper operation and maintenance of the Precision 5820. Users will find step-by-step instructions and technical details necessary for effective utilization of the product.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 15 ›

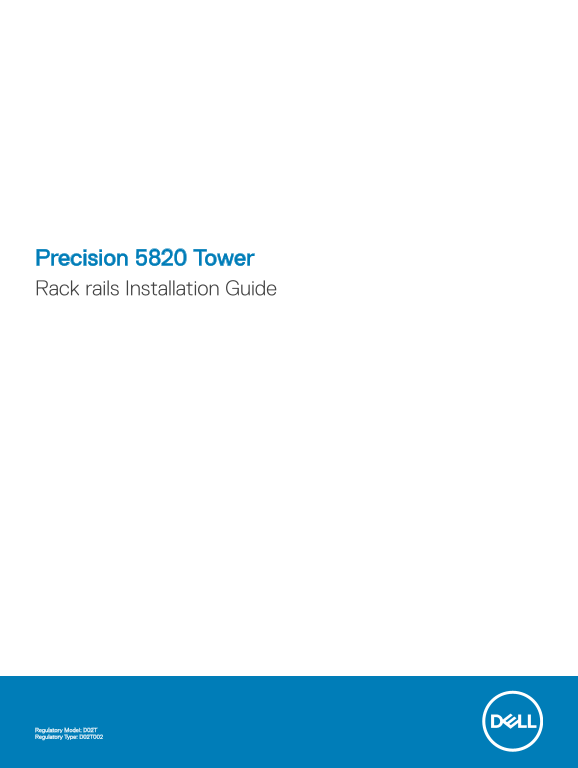

‹ Dell Precision 5820 Tower Rack Rails Installation Guide - Page 1 ›

Page 1 Text Content

Precision 5820 Tower Rack rails Installation Guide

Regulatory Model: D02T Regulatory Type: D02T002

Page Summary Contents For Dell Precision 5820 Tower Rack Rails Installation Guide

Page 1 Precision 5820 Tower Rack rails Installation Guide Regulatory Model: D02T Regulatory Type: D02T002
Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3 Contents 1 Before you begin............................................................................................................................................ Safety instructions................
Page 4 Before you begin Safety instructions Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure inclu...
Page 5 7 Remove any installed Express Cards or Smart Cards from the appropriate slots. Safety precautions The safety precautions chapter details the primary steps to be taken before performing any disassembl...
Page 6 Use a wired ESD wrist strap that is properly grounded. The use of wireless anti-static straps is no longer allowed; they do not provide adequate protection. Touching the chassis before handling parts ...
Page 7 Transporting sensitive components When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe...
Page 8 Rack rails Installing the rack rails 1 Follow the procedure in Before working inside your computer. 2 To remove the side cover: Press the latch. Pull the latch [1] upward and slide the side cover outw...
Page 9 3 Remove the 3 screws that secure the top cover to the system chassis [1]. 4 Slide the top cover outwards and lift it away from the system [2]. Rack rails
Page 10 5 Align and install the side cover to the system. Rack rails
Page 11 CAUTION: Ensure to install the side cover on the system to prevent any hazards or loss of components. 6 Before installing the rails, ensure to remove the six (M5x6) screws secured to the screw slots i...
Page 12 7 Align the hooks in the rail to the hook slots on top of the system chassis. Rack rails
Page 13 8 Fasten the two (#6-32x1/4) screws to secure the rail on the top of the system chassis. 9 Fasten the three (M5x6) screws removed from the rail in step 6, to secure the rail to the system. 10 Align th...
Page 14 11 Align the screw holes on the rack ears with the screw holes on the rails on the top and bottom of the system. 12 Fasten the 4 (M3.5x8.4) screws on the top and bottom of the system to secure the rac...
Page 15 Getting help Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Dell provid...
