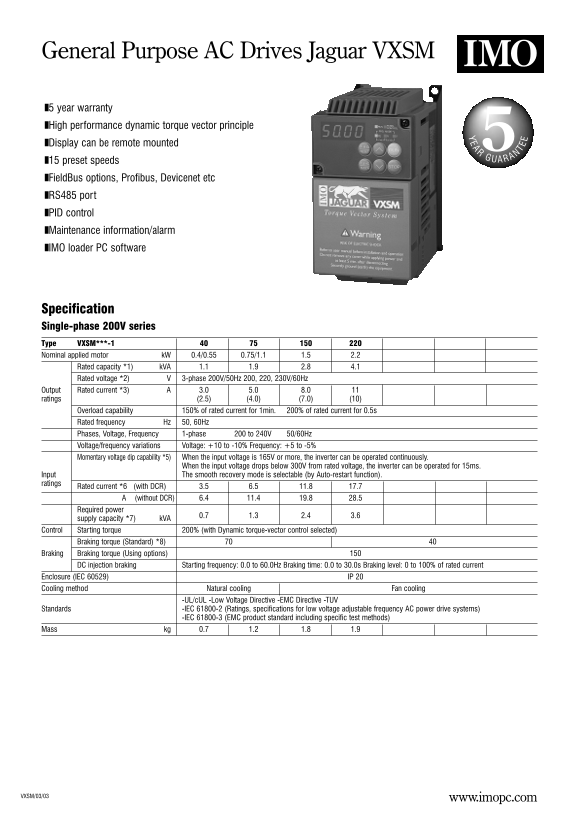

General Purpose AC Drives Jaguar VXSM
❚5 year warranty ❚High performance dynamic torque vector principle ❚Display can be remote mounted ❚15 preset speeds ❚Field Bus options, Profibus, Devicenet etc ❚RS485 port ❚PID control ❚Maintenance information/alarm ❚IMO loader PC software
Specification Single-phase 200V series Type VXSM***-1 Nominal applied motor k W 0.4/0.55 0.75/1.1 1.5 2.2
Rated capacity *1) k VA 1.1 1.9 2.8 4.1 Rated voltage *2) 3-phase 200V/50Hz 200, 220, 230V/60Hz
Output Rated current *3) 3.0 5.0 8.0 ratings (2.5) (4.0) (7.0) (10)
Overload capability 150% of rated current for 1min. 200% of rated current for 0.5s Rated frequency Hz 50, 60Hz Phases, Voltage, Frequency 1-phase 200 to 240V 50/60Hz Voltage/frequency variations Voltage: +10 to -10% Frequency: +5 to -5% Momentary voltage dip capability *5) When the input voltage is 165V or more, the inverter can be operated continuously.
When the input voltage drops below 300V from rated voltage, the inverter can be operated for 15ms.
Input The smooth recovery mode is selectable (by Auto-restart function). ratings
Rated current *6 (with DCR) 3.5 6.5 11.8 17.7
A (without DCR) 6.4 11.4 19.8 28.5
Required power
0.7 1.3 2.4 3.6supply capacity *7)
Control Starting torque 200% (with Dynamic torque-vector control selected)
Braking torque (Standard) *8)
Braking Braking torque (Using options)
DC injection braking Starting frequency: 0.0 to 60.0Hz Braking time: 0.0 to 30.0s Braking level: 0 to 100% of rated current
Enclosure (IEC 60529) IP 20 Cooling method Natural cooling Fan cooling
-UL/c UL -Low Voltage Directive -EMC Directive -TUV
Standards -IEC 61800-2 (Ratings, specifications for low voltage adjustable frequency AC power drive systems)
-IEC 61800-3 (EMC product standard including specific test methods)
Mass kg 0.7 1.2 1.8 1.9
VXSM/03/03 www.imopc.com
