Fairchild TN6715A NZT6715 NPN General Purpose Amplifier Data Manual
Summary
The TN6715A/NZT6715 is a general-purpose NPN amplifier transistor designed for reliable medium-power switching applications. This comprehensive datasheet provides electronic designers with all necessary electrical and thermal specifications, including detailed performance curves, absolute maximum ratings, and optimal operating guidelines. It is an essential resource for engineers building circuits that require stable amplification and precise power handling in robust designs.
Page 1 Text Content

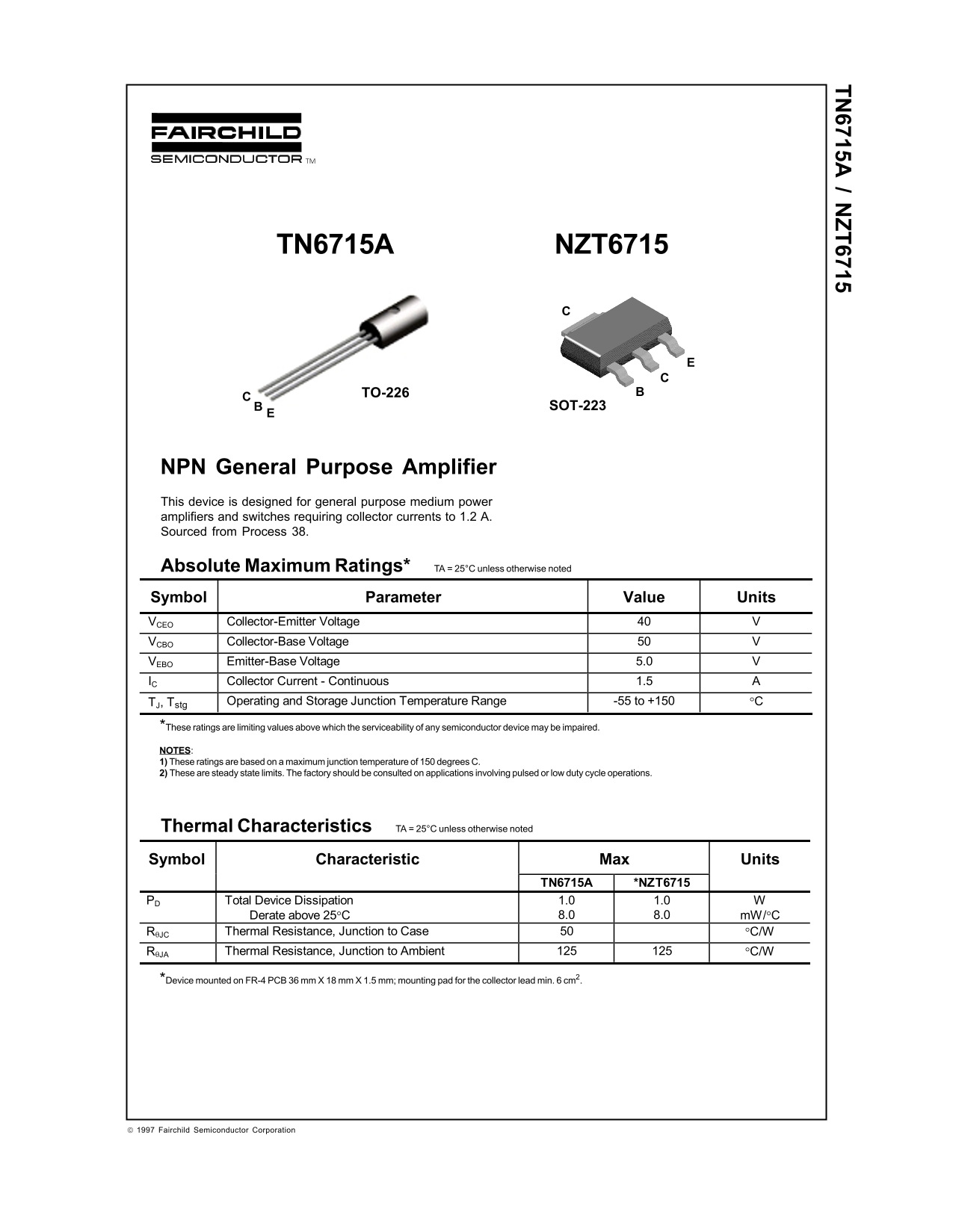

TN6715A NZT6715
TO-226C
SOT-223
NPN General Purpose Amplifier This device is designed for general purpose medium power amplifiers and switches requiring collector currents to 1.2 A. Sourced from Process 38.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VCEO Collector-Emitter Voltage VCBO Collector-Base Voltage VEBO Emitter-Base Voltage 5.0 IC Collector Current - Continuous 1.5
TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics TA = 25°C unless otherwise noted Symbol Characteristic Max Units
TN6715A *NZT6715
PD Total Device Dissipation 1.0 1.0
Derate above 25°C 8.0 8.0 m W/°C
RθJC Thermal Resistance, Junction to Case °C/W RθJA Thermal Resistance, Junction to Ambient °C/W
*Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm2.
1997 Fairchild Semiconductor Corporation
