Fairchild MMPQ2907 PNP General Purpose Amplifier Data Manual
Summary
A quad PNP general-purpose amplifier transistor array in SOIC-16 surface-mount package, each die rated at 40V collector-emitter voltage and 600mA continuous collector current. Features DC current gain of 75 to 300, collector-emitter breakdown voltage of 40V minimum, and 1000mW total device dissipation. Sourced from Process 63 with effective thermal resistance of 125 degrees C/W for four die configuration. Designed for analog circuit designers and electronics engineers requiring multiple matched PNP transistors for general-purpose amplification, switching, and current steering in consumer electronics, industrial controls, and automotive subsystems.
Page 1 Text Content

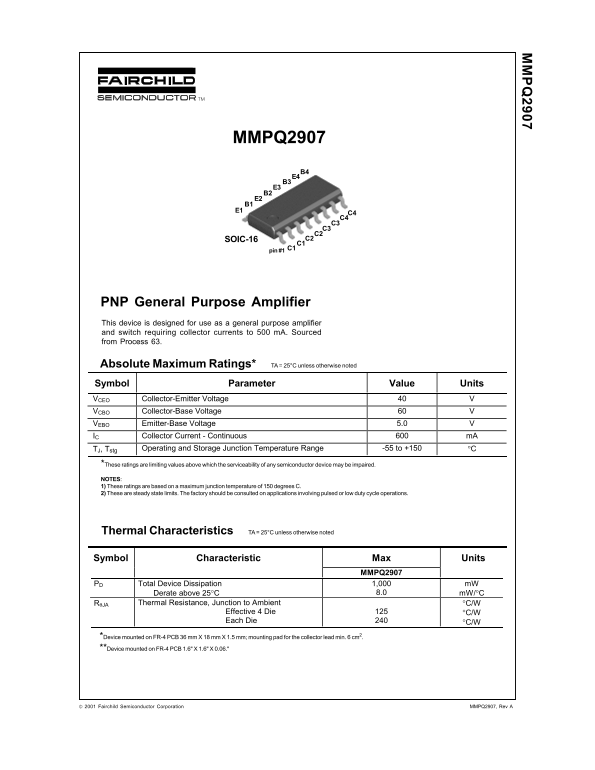

MMPQ2907
SOIC-16 C2C2 C1C1
pin #1
PNP General Purpose Amplifier This device is designed for use as a general purpose amplifier and switch requiring collector currents to 500 m A. Sourced from Process 63.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VCEO Collector-Emitter Voltage 40 V VCBO Collector-Base Voltage VEBO Emitter-Base Voltage 5.0 IC Collector Current - Continuous m A
TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics TA = 25°C unless otherwise noted
Symbol Characteristic Max Units
MMPQ2907
PD Total Device Dissipation 1,000 m W
Derate above 25°C 8.0 m W/°C
RθJA Thermal Resistance, Junction to Ambient °C/W
Effective 4 Die °C/W Each Die °C/W
*Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm2. **Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."
2001 Fairchild Semiconductor Corporation MMPQ2907, Rev A
