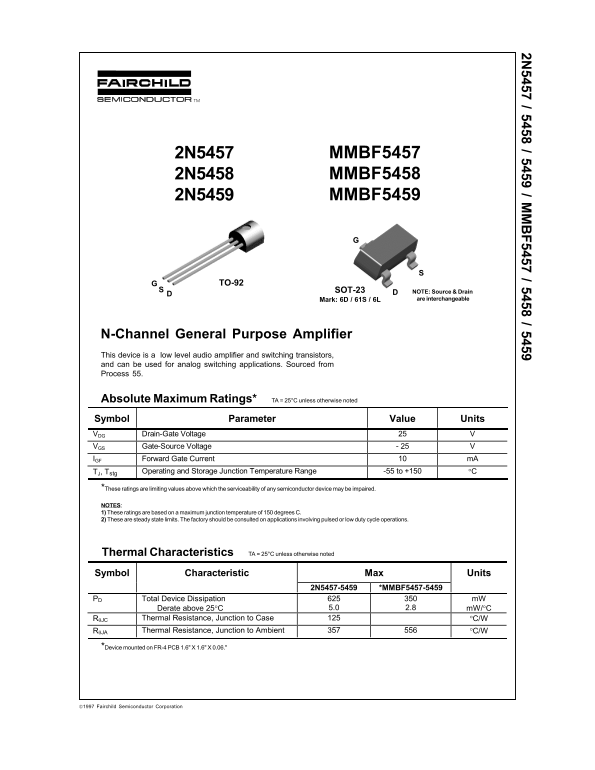

Fairchild 2N5457 2N5458 2N5459 Data Manual, MMBF5457 MMBF5458 MMBF5459 N-channel General Purpose Amplifier Specification Guide.

2N5457 MMBF5457 2N5458 MMBF5458 2N5459 MMBF5459

TO-92

SOT-23 NOTE: Source & Drain

Mark: 6D / 61S / 6L are interchangeable

N-Channel General Purpose Amplifier This device is a low level audio amplifier and switching transistors, and can be used for analog switching applications. Sourced from Process 55.

Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VDG Drain-Gate Voltage VGS Gate-Source Voltage - 25 IGF Forward Gate Current m A

TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics TA = 25°C unless otherwise noted Symbol Characteristic Max Units

2N5457-5459 *MMBF5457-5459

PD Total Device Dissipation m W

Derate above 25°C 5.0 2.8 m W/°C

RθJC Thermal Resistance, Junction to Case °C/W RθJA Thermal Resistance, Junction to Ambient °C/W

*Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."

1997 Fairchild Semiconductor Corporation
