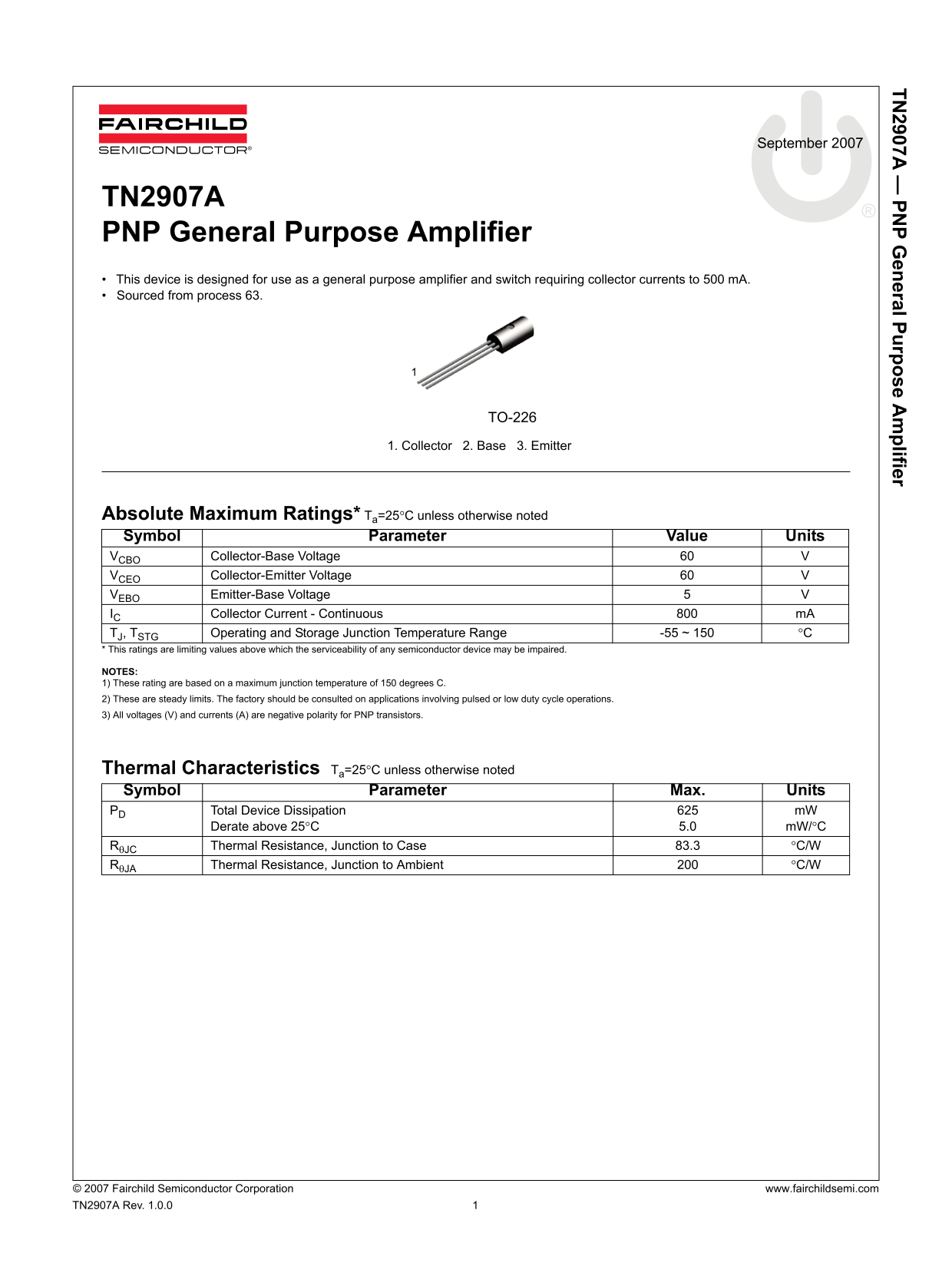

TN 2907A PN P G eneral Purpose A plifier
September 2007
TN2907A PNP General Purpose Amplifier This device is designed for use as a general purpose amplifier and switch requiring collector currents to 500 m A. Sourced from process 63.
TO-226
1. Collector 2. Base 3. Emitter
Absolute Maximum Ratings* Ta=25°C unless otherwise noted Symbol Parameter Value Units VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current - Continuous m A TJ, TSTG Operating and Storage Junction Temperature Range -55 ~ 150 °C * This ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These rating are based on a maximum junction temperature of 150 degrees C. 2) These are steady limits. The factory should be consulted on applications involving pulsed or low duty cycle operations. 3) All voltages (V) and currents (A) are negative polarity for PNP transistors.
Thermal Characteristics Ta=25°C unless otherwise noted Symbol Parameter Max. Units PD Total Device Dissipation m W
Derate above 25°C 5.0 m W/°C
RθJC Thermal Resistance, Junction to Case 83.3 °C/W RθJA Thermal Resistance, Junction to Ambient °C/W
