HP Scitex FB10000 Industrial Printing Press Geffen TS Error 66064
Summary
Systematically resolve error code 60064, which indicates a timeout failure during black secondary ink tank filling. This crucial technical guide provides maintenance professionals with comprehensive troubleshooting steps for the ink feeding system. It details all possible causes—ranging from minor obstructions in the tubing and clogged filters to major component failures like faulty pumps or valves. Use this manual to diagnose component malfunctions, verify operational commands, and rapidly restore proper liquid handling function to your equipment.

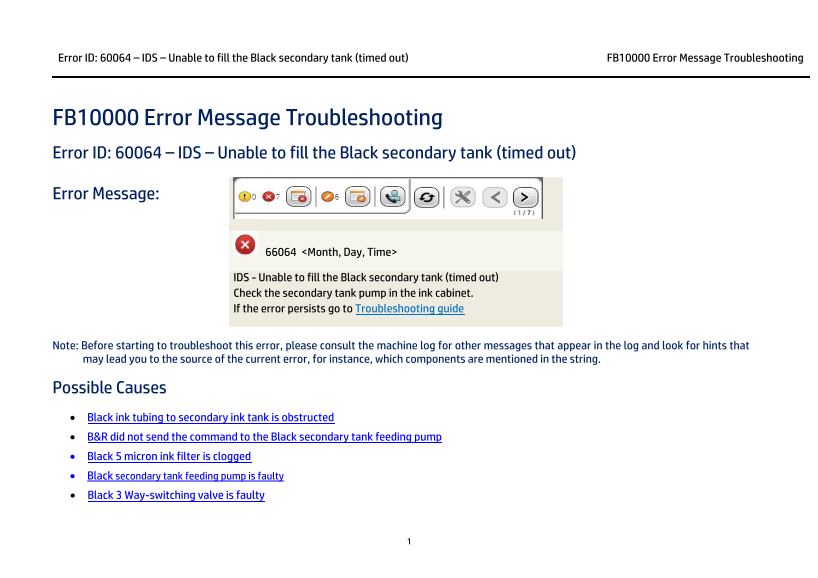

Page 1 Text Content
Error ID: 60064 – IDS – Unable to fill the Black secondary tank (timed out) FB10000 Error Message Troubleshooting
FB10000 Error Message Troubleshooting Error ID: 60064 – IDS – Unable to fill the Black secondary tank (timed out)
Error Message:
66064 <Month, Day, Time>
IDS - Unable to fill the Black secondary tank (timed out) Check the secondary tank pump in the ink cabinet. If the error persists go to Troubleshooting guide
Note: Before starting to troubleshoot this error, please consult the machine log for other messages that appear in the log and look for hints that may lead you to the source of the current error, for instance, which components are mentioned in the string.
Possible Causes • Black ink tubing to secondary ink tank is obstructed • B&R did not send the command to the Black secondary tank feeding pump • Black 5 micron ink filter is clogged • Black secondary tank feeding pump is faulty • Black 3 Way-switching valve is faulty
Page Summary Contents For HP Scitex FB10000 Industrial Printing Press Geffen TS Error 66064
Manual Details
| Brand | HP |
|---|---|
| Pages | 6 |
| File Size | 577.37 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What does Error ID: 60064 mean?
It means the device was unable to fill the Black secondary ink tank and timed out.
How do I troubleshoot a stalled black secondary tank fill?
First, check for obstructions in the black ink tubing. Inspect, repair if damaged, or proceed to checking the 5 micron filter.
If the error persists after cleaning hoses, what might be clogged?
You should check and potentially replace the Black 5 micron ink filter.
What steps should I take if the pump seems unresponsive?
Verify both power/wiring connections, confirm that the B&R sent the command via Control Tools, and finally, try replacing the secondary tank feeding pump.
