HP Deskjet F4200 All-in-One Printer Series User Guide
Summary
The HP Deskjet F4200 is a versatile All-in-One printer designed for home use, capable of effortlessly handling printing, scanning, and copying tasks. This comprehensive guide provides everything new users need to get started. It walks through the device overview, proper operation using control panel buttons, loading paper correctly, and detailed steps for troubleshooting common issues like paper jams or ink cartridge malfunctions. Use this manual for easy setup, maintenance tips, technical specifications, and accessing essential support information.
Page 1 Text Content
HP Deskjet F4200 All-in-One series
基础知识手册 Basics Guide
Page Summary Contents For HP Deskjet F4200 All-in-One Printer Series User Guide

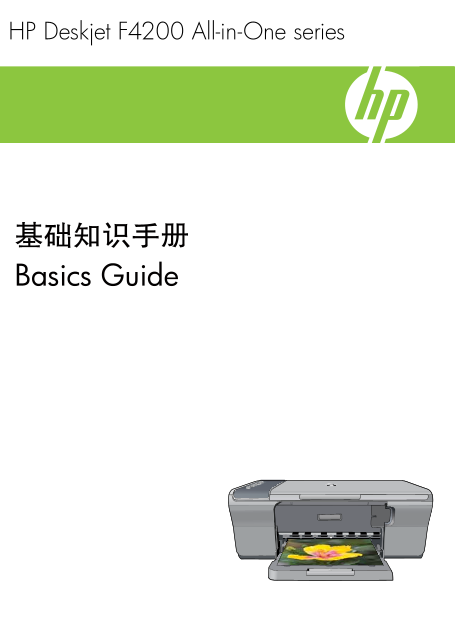

Page 1
HP Deskjet F4200 All-in-One series 基础知识手册 Basics Guide
Page 2
Hewlett-Packard Company notices The information contained in this document is subject to change without notice. All rights reserved. Reproduction, adaptation, or translation of this material is prohib...
Page 3
HP Deskjet F4200 All-in-One series 基础知识手册
Page 4
HP All-in-One 概述 HP All-in-One 总览......................................................................................................2 控制面板按钮............................................................
Page 5
HP All-in-One 概述 HP Deskjet F4200 All-in-One series 是一种通用设备，它可以让您轻松进行复 印、扫描和打印。有关其所有特征和功能的信息，请参见屏幕帮助。 HP All-in-One 总览 后置 USB 端口 只用于 HP 提供的电源适配器 HP Deskjet F4200 All-in-One series
Page 6
扫描：开始扫描当前放在玻璃扫描板上的原件。 如果 HP All-in-One 忙于其 他作业，则会忽略按下扫描按钮这一操作。扫描按钮仅当计算机处于启动状 态时才起作用。 重新开始：在问题解决后指示 HP All-in-One 继续工作。 重新开始按钮旁闪烁的重新开始指示灯说明需要放入纸张或清除卡纸。
Page 7
开／关机：打开或关闭 HP All-in-One。打开 HP All-in-One 时，开／关机按 钮点亮。 状态指示灯概述 指示灯可以表示 HP All-in-One 的状态。 所有指示灯均不亮。 HP All-in-One 已关机。按下开／关机按钮启动打印机。 开／关机指示灯闪烁。 HP All-in-One 忙于打印、扫描、复印或校准墨盒。 开／关机指示灯快速闪烁 3 秒钟， 在 HP Al...
Page 8
重新开始指示灯闪烁。 HP All-in-One 缺纸。 HP All-in-One 卡纸。 没有墨盒或墨盒放置不正确。 没有撕下墨盒上的胶带。 墨盒与 HP All-in-One 不兼容。 墨盒可能有问题。 关闭 HP All-in-One，然后重新打开。如果问题仍然存在，请联系 HP 支 持。 所有指示灯均闪烁。 HP All-in-One 发生严重错误。 1. 关闭打印机。 2. 拔掉电源线...
Page 9
扫描原件 对于玻璃板上的原始文档或图像，可以从您的计算机或 HP All-in-One 开始扫 描。要使用扫描功能，HP All-in-One 必须已经与计算机连接并已打开。同时， 扫描前，HP Photosmart 软件必须已经安装并在计算机上运行。 注意 如果使用 Windows 2000，请使用 Windows 扫描仪而非按下扫描按 钮。 HP Deskjet F4200 All-in-On...
Page 10
疑难排解和支持 本章提供了有关安装和配置问题的疑难排解信息以及一些有关操作的主题。有关疑难排解 方面的详细信息，请参阅屏幕帮助。 如果在计算机上安装 HP Photosmart 软件之前，已经用 USB 电缆将产品连接到计算机 上，这会引起许多问题。如果在软件的安装屏幕提示您将产品连接到计算机上之前就已经 执行该操作，则必须遵循以下步骤： 软件安装疑难排解 1. 从计算机上拔下 USB 电缆。 2...
Page 11
小心 如果产品仍无法启动，则可能存在机械故障。切断产品的电源连接。 与 HP 支持部门联系进行维修。 请访问：www.hp.com/support。如果出现提示信息，请选择您所在的国家（地 区），然后单击“联系 HP”以获得联系技术支持的信息。 连接了 USB 电缆，但是无法从计算机使用 HP All-in-One 解决方法: 连接 USB 电缆之前，必须首先安装打印机随附的软件。在安装过程中， ...
Page 12
有关安装软件和连接 USB 电缆的详细信息，请参阅 HP All-in-One 随附的《安装手 册》。 HP All-in-One 不打印 解决方法: 如果打印机和计算机相互无法通信，请尝试执行以下操作： 查看打印机上的开／关机按钮。如果该指示灯未点亮，则表示打印机已关机。确 保电源线紧紧地连接到打印机和电源适配器上并且插入电源插座中。按下开／关 机按钮启动打印机。 确保已安装墨盒。 确保进纸盒中...
Page 13
如果是通过 USB 集线器连接该产品，请确保集线器的电源已打开。如果集线器的 电源已打开，请尝试直接连接到计算机。 检查其他打印机或扫描仪。可能需要从计算机上拔掉旧产品。 试着将 USB 电缆连接到计算机的另一个 USB 端口上。检查完连接之后，请尝试 重新启动计算机。关闭打印机，然后再启动打印机。 检查完连接之后，请尝试重新启动计算机。关闭打印机，然后再启动打印机。 如有必要，请卸载与打印机一同...
Page 14
访问屏幕帮助 Windows：单击“开始 > 所有程序 > HP > Deskjet F4200 All-in-One series > 帮 助”。 要安装屏幕帮助，请将软件 CD 插入计算机，然后按照屏幕上的说明执行操作。 Macintosh：单击“帮助 > Mac 帮助 > 资料库 > HP 产品帮助”。 HP 网站 如果能访问 Internet，可以...
Page 15
纸张规格 进纸盒容量：普通纸最多 80 张 （65-90 gsm 纸张） 出纸盒容量：普通纸最多 50 张 （65-90 gsm 纸张） 物理规格 高：161.5 mm 宽：437.5 mm 深（进纸盒朝上）：290.4 mm 重量：4.9 kg 电源规格 功耗：打印时平均 20 W 输入电压：AC 100-240 V ~ 1 A 50 - 60 Hz 输出电压：DC 32 V===375 m A...
Page 17
HP Deskjet F4200 All-in-One series Basics Guide En gl is
Page 18
English
Page 19
Contents HP All-in-One overview The HP All-in-One at a glance....................................................................................................2 Control panel buttons...................
Page 20
HP All-in-One overview The HP Deskjet F4200 All-in-One series is a versatile device that gives you easy-to-use copying, scanning, and printing. For information about the full range of features and fun...
Page 21
Control panel buttons Label Icon Name and Description Ink Level lights: Show ink level information for each print cartridge, four for the tri-color cartridge and four for the black cartridge. Check Pr...
Page 22
Chapter 1 (continued) Label Icon Name and Description Resume: Instructs the HP All-in-One to continue after a problem is solved. A blinking Resume light next to the Resume button indicates the need to...
Page 23
Light status What it means All lights are off. The HP All-in-One is turned off. Press the On button to turn on the product. The On light is blinking. The HP All-in-One is busy printing, scanning, copy...
Page 24
Chapter 1 3. Close the lid. Make a copy You can make quality copies from the control panel. To make a copy from the control panel 1. Make sure you have paper loaded in the input tray. 2. Load your ori...
Page 25
Troubleshooting and support This chapter contains troubleshooting information for installation and configuration issues and some operational topics. For more troubleshooting information, see the onscr...
Page 26
Chapter 2 The product will not turn on Solution Make sure the power cord is firmly connected to both the product and the power adapter. Plug the power cord into a power outlet, surge protector, or pow...
Page 27
For more information on installing the software and connecting the USB cable, see the Setup Guide that came with the HP All-in-One. The HP All-in-One does not print Solution: If the product and comput...
Page 28
Chapter 2 If you are connecting the product through a USB hub, make sure the hub is turned on. If the hub is on, try connecting directly to your computer. Check other printers or scanners. You might n...
Page 29
To access the onscreen Help Windows: Click Start > All Programs > HP > Deskjet F4200 All-in-One series > Help. To install the onscreen Help, insert the software CD in your computer and fol...
Page 30
Chapter 2 System requirements Software system requirements are located in the Readme file. Paper specifications Input tray capacity: Plain paper sheets: Up to 80 (65-90 gsm (16-24 lb.) paper) Output t...
Page 31
Warranty HP product Duration of limited warranty Software Media 90 days Printer 1 year Print or Ink cartridges Until the HP ink is depleted or the “end of warranty” date printed on the cartridge has b...
Page 32
Chapter 2 English HP Deskjet F4200 All-in-One series
