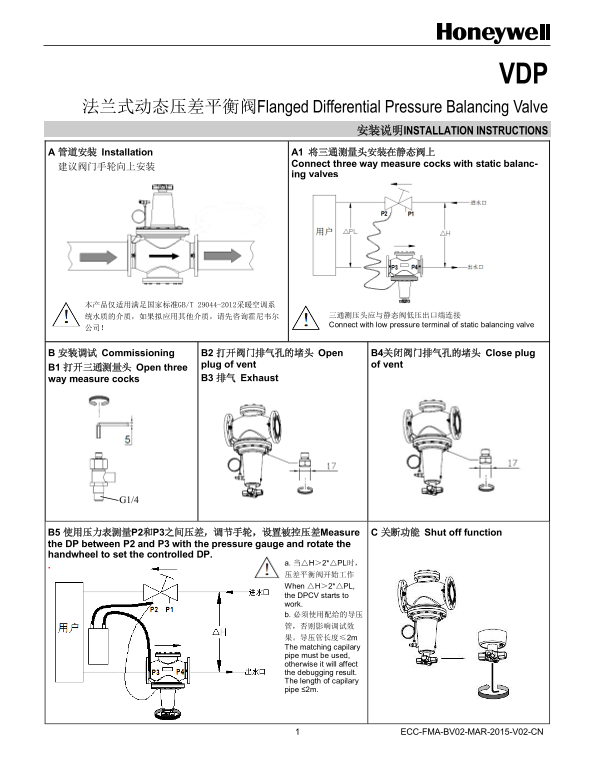

Page 1 Text Content
法兰式动态压差平衡阀Flanged Differential Pressure Balancing Valve
安装说明INSTALLATION INSTRUCTIONS
A 管道安装 Installation A1 将三通测量头安装在静态阀上
Connect three way measure cocks with static balanc-
ing valves
本产品仅适用满足国家标准GB/T 29044-2012采暖空调系
统水质的介质，如果拟应用其他介质，请先咨询霍尼韦尔 三通测压头应与静态阀低压出口端连接 Connect with low pressure terminal of static balancing valve
B 安装调试 Commissioning B2 打开阀门排气孔的堵头 Open B4关闭阀门排气孔的堵头 Close plug
plug of vent of vent
B1 打开三通测量头 Open three
way measure cocks B3 排气 Exhaust
C 关断功能 Shut off function B5 使用压力表测量P2和P3之间压差，调节手轮，设置被控压差Measure
the DP between P2 and P3 with the pressure gauge and rotate the handwheel to set the controlled DP.
a. 当△H＞2*△PL时， 压差平衡阀开始工作 When △H＞2*△PL, the DPCV starts to work. b. 必须使用配给的导压 管，否则影响调试效 果。导压管长度≤2m The matching capilary pipe must be used, otherwise it will affect the debugging result. The length of capilary pipe ≤2m.
ECC-FMA-BV02-MAR-2015-V02-CN
