Discover high-performance, miniaturized magnetic sensors ideal for precision measurements. These magnetoresistive chips provide highly accurate 1 and 2-axis magnetic field sensing down to sub-milligauss levels. This guide details the technical specifications, operational characteristics (including set/reset procedures), and application guidelines for integrating these robust low-power devices into your systems. Perfect for engineers developing navigation, compassing, attitude reference, or medical positioning equipment requiring reliable, high-sensitivity magnetic detection.

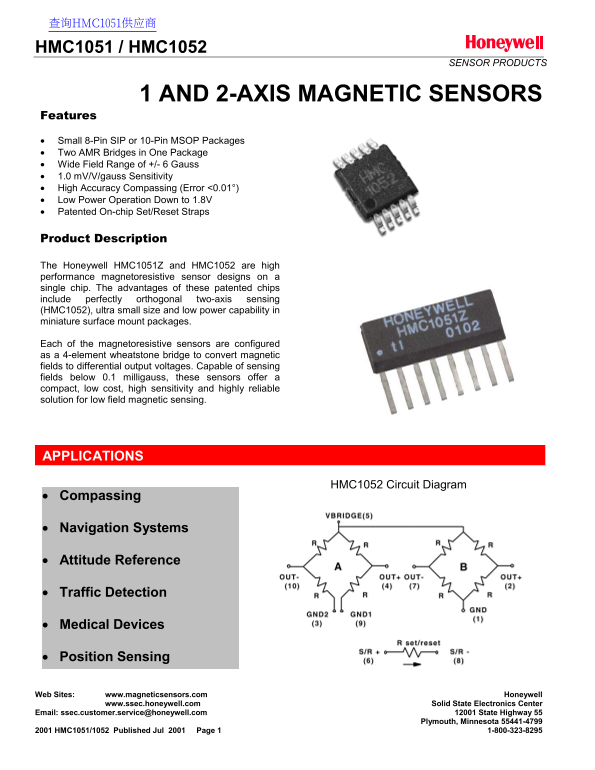

Page 1 Text Content
查询HMC1051供应商
HMC1051 / HMC1052
SENSOR PRODUCTS
1 AND 2-AXIS MAGNETIC SENSORS
Features
Small 8-Pin SIP or 10-Pin MSOP Packages Two AMR Bridges in One Package Wide Field Range of +/- 6 Gauss 1.0 m V/V/gauss Sensitivity High Accuracy Compassing (Error <0.01°) Low Power Operation Down to 1.8V Patented On-chip Set/Reset Straps
Product Description
The Honeywell HMC1051Z and HMC1052 are high performance magnetoresistive sensor designs on a single chip. The advantages of these patented chips include perfectly orthogonal two-axis sensing (HMC1052), ultra small size and low power capability in miniature surface mount packages.
Each of the magnetoresistive sensors are configured as a 4-element wheatstone bridge to convert magnetic fields to differential output voltages. Capable of sensing fields below 0.1 milligauss, these sensors offer a compact, low cost, high sensitivity and highly reliable solution for low field magnetic sensing.
APPLICATIONS
HMC1052 Circuit Diagram Compassing
Navigation Systems
Attitude Reference
Traffic Detection
Medical Devices
Position Sensing
Web Sites: www.magneticsensors.com Honeywell
www.ssec.honeywell.com Solid State Electronics Center
Email: [email protected] 12001 State Highway 55
Plymouth, Minnesota 55441-4799
2001 HMC1051/1052 Published Jul 2001 Page 1 1-800-323-8295
Page Summary Contents For Honeywell HMC1051 HMC1052 Handbook/Instructions/User Guide
Manual Details
| Brand | Honeywell |
|---|---|
| Pages | 8 |
| File Size | 319.44 KB |
| Published | May 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the difference between HMC1051 and HMC1052?
HMC1051 is a single-axis sensor, while HMC1052 provides perfectly orthogonal two-axis sensing.
How low can these sensors sense magnetic fields?
They are capable of sensing fields below 0.1 milligauss.
What resolution does the HMC1052 offer at 50Hz and Vbridge=5V?
The resolution is 120 degrees-gauss for the X,Y sensors (HMC1052 only).
Under what conditions should I use a Set/Reset pulse?
Use an S/R pulse to restore sensitivity if the disturbing field causes degradation.
