Master precise magnetic field measurements with this series of highly sensitive magnetoresistive sensors. These solid-state components detect weak to moderate fields across 1-, 2-, or 3 axes for applications ranging from navigation systems to medical devices. This manual provides comprehensive technical specifications, performance curves, and design guidelines for selecting between the high-sensitivity HMC100x series and the cost-effective HMC102x series. Ideal for engineers and OEMs requiring reliable, low-cost magnetic sensing solutions in demanding environments.

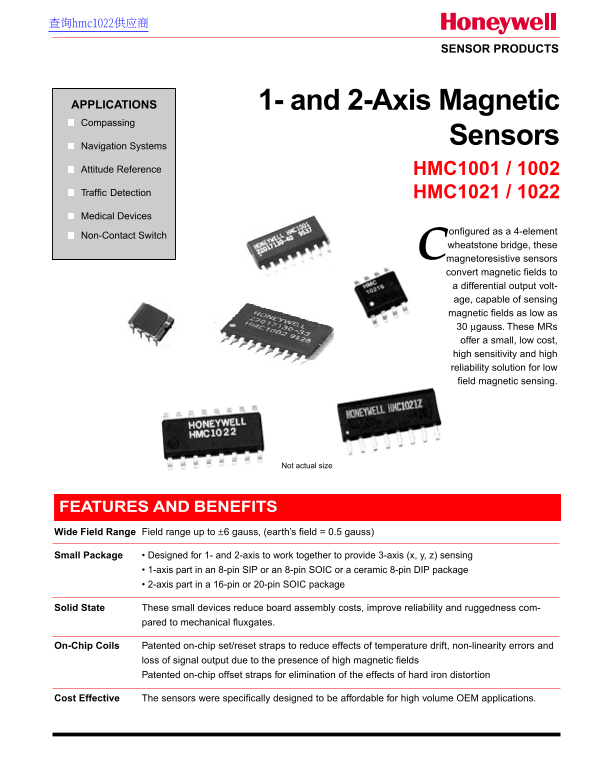

Page 1 Text Content
查询hmc1022供应商
SENSOR PRODUCTS
APPLICATIONS 1- and 2-Axis Magnetic Compassing
Sensors
Navigation Systems
Attitude Reference HMC1001 / 1002 Traffic Detection HMC1021 / 1022 Medical Devices
onfigured as a 4-element
Non-Contact Switch
wheatstone bridge, these magnetoresistive sensors convert magnetic fields to a differential output volt- age, capable of sensing magnetic fields as low as µgauss. These MRs offer a small, low cost, high sensitivity and high reliability solution for low field magnetic sensing.
Not actual size
FEATURES AND BENEFITS Wide Field Range Field range up to ±6 gauss, (earth’s field = 0.5 gauss) Small Package • Designed for 1- and 2-axis to work together to provide 3-axis (x, y, z) sensing
• 1-axis part in an 8-pin SIP or an 8-pin SOIC or a ceramic 8-pin DIP package • 2-axis part in a 16-pin or 20-pin SOIC package
Solid State These small devices reduce board assembly costs, improve reliability and ruggedness com-
pared to mechanical fluxgates.
On-Chip Coils Patented on-chip set/reset straps to reduce effects of temperature drift, non-linearity errors and
loss of signal output due to the presence of high magnetic fields Patented on-chip offset straps for elimination of the effects of hard iron distortion
Cost Effective The sensors were specifically designed to be affordable for high volume OEM applications.
Page Summary Contents For Honeywell 1- 2-Axis Magnetic Sensors HMC1001 1002 HMC1021 1022 handbook
Manual Details
| Brand | Honeywell |
|---|---|
| Pages | 15 |
| File Size | 229.83 KB |
| Published | May 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I achieve a complete 3-axis magnetic sensing configuration?
The system requires using single-axis parts designed to work together to provide the necessary three-axis (x, y, z) measurement.
Which sensor series is best for high volume or cost-sensitive applications?
The HMC1021/1022 series generally offers lower cost, a wider field range, and lower set/reset current compared to the HMC100x series.
What straps are used to mitigate magnetic distortions like hard iron effects?
The patented on-chip offset straps are utilized for eliminating the effects of hard iron distortion from the measurement.
What is the typical output variation needed after a Set pulse when using the HMC102x sensors?
No explicit "typical" post-set variation value is given; however, the Bridge Offset is listed as -10 ± 2.5 to 11.25 mV after a set pulse (Vbridge=5V).
