The Fluke 714 Thermocouple Calibrator is a precision source and measurement device used for calibrating various thermocouple instruments, providing accurate readings in °C, °F, or mV. This manual guides professionals through the use of the calibrator, covering operational modes (Input/Output), safety procedures, maintenance guidelines, detailed technical specifications, and troubleshooting tips. It is essential reading for technicians and engineers requiring reliable standards for thermocouple testing across multiple types (J, K, T, E, R, S, B).
Page 1 Text Content

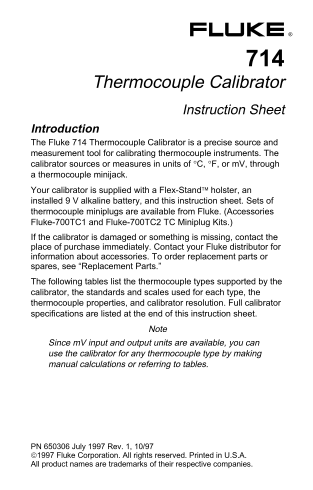

714 English Instruction Sheet
Thermocouple Calibrator
Instruction Sheet
Introduction The Fluke 714 Thermocouple Calibrator is a precise source and measurement tool for calibrating thermocouple instruments. The calibrator sources or measures in units of °C, °F, or m V, through a thermocouple minijack. Your calibrator is supplied with a Flex-Stand holster, an installed 9 V alkaline battery, and this instruction sheet. Sets of thermocouple miniplugs are available from Fluke. (Accessories Fluke-700TC1 and Fluke-700TC2 TC Miniplug Kits.) If the calibrator is damaged or something is missing, contact the place of purchase immediately. Contact your Fluke distributor for information about accessories. To order replacement parts or spares, see “Replacement Parts.” The following tables list the thermocouple types supported by the calibrator, the standards and scales used for each type, the thermocouple properties, and calibrator resolution. Full calibrator specifications are listed at the end of this instruction sheet.
Since m V input and output units are available, you can use the calibrator for any thermocouple type by making manual calculations or referring to tables.
PN 650306 July 1997 Rev. 1, 10/97 1997 Fluke Corporation. All rights reserved. Printed in U.S.A. All product names are trademarks of their respective companies.
Page Summary Contents For Fluke 712 RTD Process Calibrator 714
Manual Details
| Brand | Fluke |
|---|---|
| Pages | 15 |
| File Size | 275.17 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How often should I have my calibrator professionally calibrated?
Calibrate your calibrator once a year to ensure accurate performance.
What are the safety limits for voltage input and output?
Never apply more than 30 V between the TC terminals, or between either TC terminal and earth ground.
Which thermocouple types does the Fluke 714 support?
It supports various types including J, K, T, E, R, S, B, L, and U, which can be measured in °C, °F, or mV.
What do I use to replace a depleted battery?
Replace the 9 V alkaline battery when the M symbol appears on the display.
