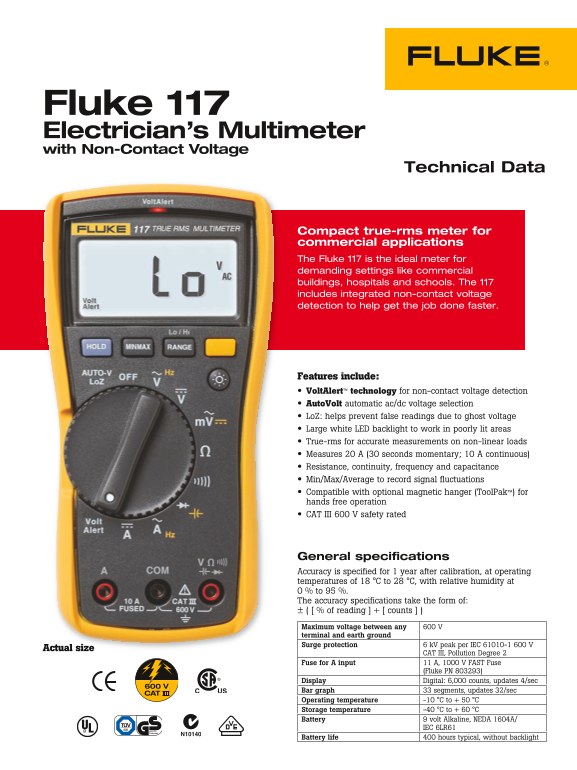

Page 1 Text Content
Fluke 117 Electrician’s Multimeter with Non-Contact Voltage
Technical Data
Compact true-rms meter for commercial applications The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster.
Features include: Volt Alert™ technology for non-contact voltage detection Auto Volt automatic ac/dc voltage selection Lo Z: helps prevent false readings due to ghost voltage Large white LED backlight to work in poorly lit areas True-rms for accurate measurements on non-linear loads Measures 20 A (30 seconds momentary; 10 A continuous) Resistance, continuity, frequency and capacitance Min/Max/Average to record signal fluctuations Compatible with optional magnetic hanger (Tool Pak™) for hands free operation CAT III 600 V safety rated
General specifications Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %. The accuracy specifications take the form of: ± ( [ % of reading ] + [ counts ] ) Maximum voltage between any 600 V terminal and earth ground Surge protection 6 k V peak per IEC 61010-1 600 V
Actual size
CAT III, Pollution Degree 2
Fuse for A input 11 A, 1000 V FAST Fuse
(Fluke PN 803293)
Display Digital: 6,000 counts, updates 4/sec Bar graph 33 segments, updates 32/sec Operating temperature -10 °C to + 50 °C Storage temperature -40 °C to + 60 °C Battery 9 volt Alkaline, NEDA 1604A/
IEC 6LR61
Battery life 400 hours typical, without backlight N10140
