Fluke 51-II Single-Channel Contact Thermometer 51-54 Series II Service Manual
Summary
Maintain peak operational accuracy with this comprehensive Service Manual for the Fluke 51–54 Series II Thermometers. Designed specifically for professional service technicians and field engineers, this guide provides exhaustive instructions on maintenance and repair. It covers foundational knowledge—from electrical schematics to performance testing procedures (keypad/display)—and detailed workflows for advanced calibration, safe disassembly, and component replacement. Essential reading for maintaining reliable temperature measurement integrity.
Page 1 Text Content

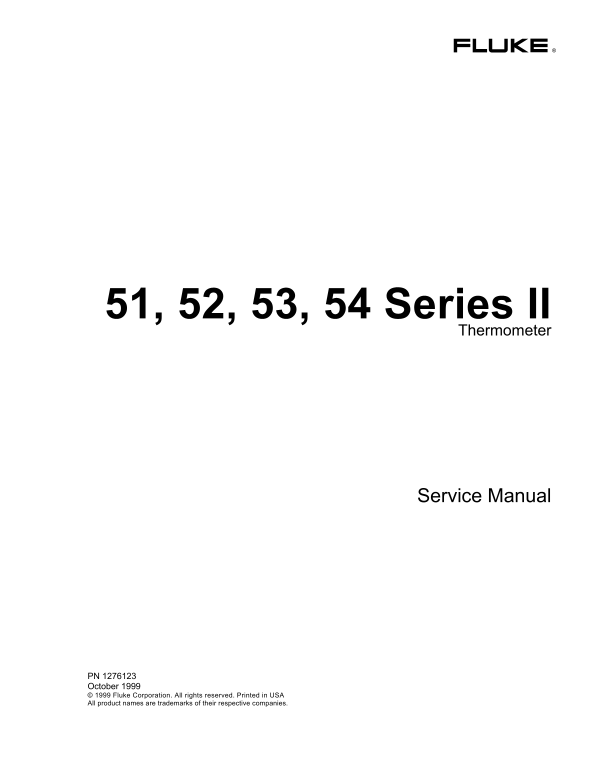

51, 52, 53, 54 Series II
Thermometer
Service Manual
PN 1276123 October 1999 © 1999 Fluke Corporation. All rights reserved. Printed in USA All product names are trademarks of their respective companies.
Page Summary Contents For Fluke 51-II Single-Channel Contact Thermometer 51-54 Series II Service Manual
Page 1
51, 52, 53, 54 Series II Thermometer Service Manual PN 1276123 October 1999 © 1999 Fluke Corporation. All rights reserved. Printed in USA All product names are trademarks of their respective companies...
Page 2
LIMITED WARRANTY & LIMITATION OF LIABILITY Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is three years and ...
Page 3
Table of Contents Title Page Introduction Service Centers.................................................................................................. International Symbols..........................
Page 4
51, 52, 53, 54 Series II Service Manual
Page 5
List of Tables Table Title Page 1. International Electrical Symbols Used in this Manual........................................... 2. Recommended Test Equipment 3. Performance Test Values (K-Type Ther...
Page 6
51, 52, 53, 54 Series II Service Manual
Page 7
List of Figures Figure Title Page 1. Display Segments 2. Ice Bath Test Equipment Connections................................................................... 3. Calibration Connections 4. Calibratio...
Page 8
51, 52, 53, 54 Series II Service Manual
Page 9
51, 52, 53, 54 Series II Service Manual WWarning To avoid shock or injury, do not perform the performance tests or calibration procedures described in this manual unless you are qualified to do so. Re...
Page 10
51, 52, 53, 54 Series II Service Manual Service Centers To contact Fluke, order parts, or locate a Fluke service center, call one of the following telephone numbers: USA: 1-888-99-FLUKE (1-888-993-585...
Page 11
Thermometer Precautions and Safety Information Safety Information WWarning To avoid electrical shock or personal injury, follow these guidelines: • Before using the thermometer, inspect the case. Do n...
Page 12
51, 52, 53, 54 Series II Service Manual Specifications General Specifications Weight 280 g (10 oz) Dimensions 2.8 cm × 7.8 cm × 16.2 cm (without holster) (1.1 in × 3 in × 6.4 in) Battery 3 AA batterie...
Page 13
Thermometer Performance Test and Calibration Required Test Equipment Performance Test and Calibration Required Test Equipment Refer to Table 2 for a list of test equipment used in the performance test...
Page 14
51, 52, 53, 54 Series II Service Manual zb03f.eps Figure 1. Display Segments Keypad Test Check that all keypad switches are functional by pressing each key and confirming the proper response on the di...
Page 15
Thermometer Performance Tests 4. Replace the Dewar Flask cap or cork, and insert the thermocouple wires and Mercury thermometer as shown in Figure 2. Insert the Mercury thermometer to the same depth a...
Page 16
51, 52, 53, 54 Series II Service Manual Table 3. Performance Test Values (K-Type Thermocouple) Input Voltage Equivalent Display Reading limits Step (m V DC) Temperature 0.0000 0.0 °C 32.0 °F -0.3 to 0...
Page 17
Thermometer Calibration and Offset Adjustment Calibration and Offset Adjustment Calibration consists of two parts: 1. Calibration of the A/D converter, using the set up shown in Figure 3. 2. Reference...
Page 18
51, 52, 53, 54 Series II Service Manual Calibration button access zb02f.eps Figure 4. Calibration Button Access 3. The menu on the display changes to “CAL A-d”. Within CAL are four menu options that m...
Page 19
Thermometer Calibration and Offset Adjustment 11. To ignore the calibration changes, use K or N, and select “CAL Abrt” and press E. 12. Proceed to Reference Junction Calibration. Reference Junction Ca...
Page 20
51, 52, 53, 54 Series II Service Manual Basic Maintenance Basic maintenance required by the thermometer is discussed in this section. Cleaning the Thermometer Caution • To avoid damaging the thermomet...
Page 21
Thermometer Disassembly and Reassembly zb01f.eps Figure 5. Battery Access Disassembly and Reassembly Disassembly and reassembly of the thermometer may be necessary to replace interior parts. Refer to ...
Page 22
51, 52, 53, 54 Series II Service Manual 6. The LCD decal is now exposed and may be removed. 7. To remove the main switch pad, first remove the small elastomeric connector at the top of the switch pad,...
Page 23
Thermometer Replaceable Parts 5. Push the Isothermal PCA and the Main PCA together so that the Isothermal PCA pins go deeper into the Main PCA sockets. This holds the IR Lens in place and allows the M...
Page 24
51, 52, 53, 54 Series II Service Manual Table 4. Replaceable Parts (cont.) Item Fluke Part Model Number Qty. Number Description Number 9A-B 51/53 SERIES II IR LENS KIT 51, 53 52/54 SERIES II IR LENS K...
Page 25
Thermometer Replaceable Parts zb07f.eps Figure 6. Exploded View (Model 54 is Shown)
Page 26
51, 52, 53, 54 Series II Service Manual
Page 27
Index —A— —I— assembly, 13 ice bath construction, 6 equipment connections, 7 test, 7 batteries access to, 13 changing, 12 —L— LCD reinstalling, 14 —C— calibration, 9 A/D connections, 9 Main PCA button...
Page 28
51, 52, 53, 54 Series II Service Manual performance testing and calibration, 5 —S— safety, 2 cautions and warnings, 3 —U— service centers Users Manual phone numbers, world wide web address, 2 51, 52 S...
