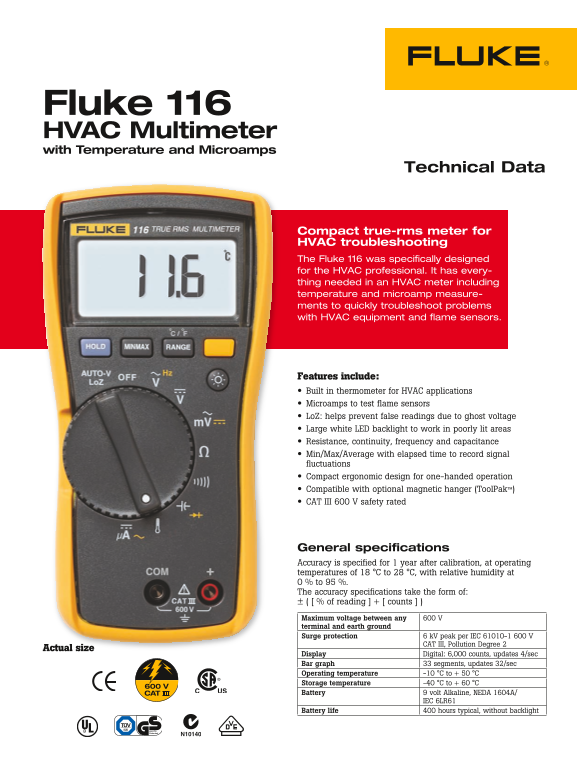

Fluke 116 HVAC Multimeter with Temperature and Microamps
Technical Data
Compact true-rms meter for HVAC troubleshooting The Fluke 116 was specifically designed for the HVAC professional. It has every- thing needed in an HVAC meter including temperature and microamp measure- ments to quickly troubleshoot problems with HVAC equipment and flame sensors.
Features include: Built in thermometer for HVAC applications Microamps to test flame sensors Lo Z: helps prevent false readings due to ghost voltage Large white LED backlight to work in poorly lit areas Resistance, continuity, frequency and capacitance Min/Max/Average with elapsed time to record signal fluctuations Compact ergonomic design for one-handed operation Compatible with optional magnetic hanger (Tool Pak™) CAT III 600 V safety rated
General specifications Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %. The accuracy specifications take the form of: ± ( [ % of reading ] + [ counts ] ) Maximum voltage between any 600 V terminal and earth ground Surge protection 6 k V peak per IEC 61010-1 600 V
CAT III, Pollution Degree 2
Actual size
Display Digital: 6,000 counts, updates 4/sec Bar graph 33 segments, updates 32/sec Operating temperature -10 °C to + 50 °C Storage temperature -40 °C to + 60 °C Battery 9 volt Alkaline, NEDA 1604A/
IEC 6LR61
Battery life 400 hours typical, without backlight
