Fluke 17B+ Digital Multimeter 15B+ 17B+ 18B+ Calibration Manual

Summary

This comprehensive calibration manual provides detailed procedures for service technicians performing maintenance on Fluke 15B+, 17B+, and 18B+ Digital Multimeters. It guides users through calibrating various functions—including AC/DC Voltage, current, capacitance, temperature, and more—using specific tools and equipment. The document ensures accurate performance by detailing safety warnings, general specifications, and step-by-step adjustments for maintaining meter precision in the field.

📄 Preview 📖 Table of Contents Contents PAGE OF 23

Page 1 Text Content

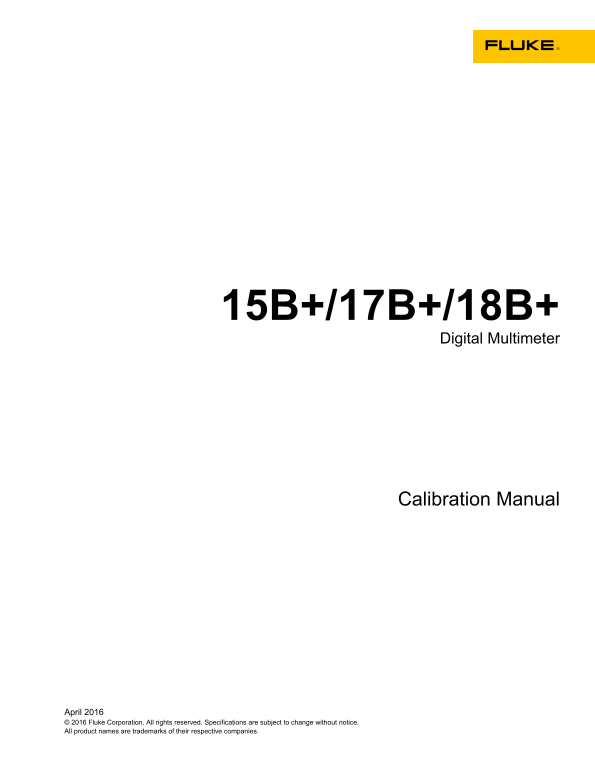

Digital Multimeter

Calibration Manual

April 2016 © 2016 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.

Page Summary Contents For Fluke 17B+ Digital Multimeter 15B+ 17B+ 18B+ Calibration Manual

Page 1 Digital Multimeter Calibration Manual April 2016 © 2016 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respectiv...
Page 3 Table of Contents Title Page Introduction ............................................................................................ 1 How to Contact Fluke .............................................
Page 4 15B+/17B+/18B+ Calibration Manual
Page 6 Introduction The Fluke 15B+/17B+/18B+ Digital Multimeters (the Product or UUT) are 4000-count instruments. The Product is battery powered with a digital display. Except where noted, the descriptions a...
Page 7 15B+/17B+/18B+ Calibration Manual Safety Information A Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that could cause dama...
Page 8 Digital Multimeter Safety Information • Keep fingers behind the finger guards on the probes. • Remove all probes, test leads, and accessories before the battery door is opened. • Do not exceed the Mea...
Page 9 15B+/17B+/18B+ Calibration Manual Table 1. Symbols Symbol Description Symbol Description  AC (Alternating Current)  Earth Ground  DC (Direct Current)  Fuse  Diode  Capacitance X WARNING. HAZARDO...
Page 10 Digital Multimeter General Specifications General Specifications Maximum voltage between any Terminal and Earth Ground: 1000 V Display (LCD) ........................................................ 40...
Page 11 15B+/17B+/18B+ Calibration Manual Accuracy Specifications Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy sp...
Page 12 Digital Multimeter Accuracy Specifications Diode Test, Temperature, Resistance, Capacitance, Frequency, and Duty Cycle Accuracy Function Range Resolution Diode Test[1] Temperature 400.0 °C Resistance ...
Page 13 15B+/17B+/18B+ Calibration Manual LED Test and Continuity Threshold Function Illumination Range Measurement Range Resolution Accuracy LED VF Test [1] (LED Test 1.00 V to 6.00 V NA NA NA Socket) LED VF...
Page 14 Digital Multimeter Accuracy Specifications h Static Awareness h discharge during handling. This notice explains how to minimize damage to X Semiconductors and integrated circuits can be damaged by ele...
Page 15 15B+/17B+/18B+ Calibration Manual Disassembly XWWarning To prevent false readings, which could lead to possible electric shock or personal injury, replace the batteries as soon as the low battery ind...
Page 16 Digital Multimeter Performance Tests Performance Tests for the 15B+ and 17B+ Before doing the performance test, make sure to warm up the calibrator. To test each function and operating ranges: 1. For ...
Page 17 15B+/17B+/18B+ Calibration Manual Table 0-3. Performance Specifications for 15B+ and 17B+ (cont.) Calibrator output UUT reading limit Step Function 15B+ 17B+ Frequency Lower Upper Value or Amplitude L...
Page 18 Digital Multimeter Performance Tests Performance Test for 18B+ Before doing the performance test, make sure to warm up the calibrator. To test each function and operating ranges: 1. For each step in T...
Page 19 15B+/17B+/18B+ Calibration Manual Table 4. Performance Specifications for 18B+ (cont.) Calibrator Output UUT reading limit Step Function Frequency or Lower Limit Upper Limit Value Amplitude 19 35 kΩ Ω...
Page 20 Digital Multimeter Calibration Procedures icr08.eps Figure 2. LED Test Calibration Procedures Table 5 list equipment that is required to calibrate the Product. Table 5. Required Equipment for Calibrat...
Page 21 15B+/17B+/18B+ Calibration Manual • Connect the UUT signal input terminal to the calibrator (5522A or other calibrator.) icr07.eps Figure 4. Calibration Connections 4. To put the UUT in calibration mo...
Page 22 Digital Multimeter Calibration Procedures WP7 CAL1 WP8 WP6 WP6 WP9 HOLD1 icr03.eps Figure 5. Calibration Adjustment for 15B+ and 17B+ 5. Enter the calibration values on the calibrator. 6. For each fun...
Page 23 15B+/17B+/18B+ Calibration Manual icr05.eps Figure 6. Temperature Adjustment for 17B+ Calibration for 18B+ For each function in Table 8: 1. Turn the rotary selection knob to the function to be calibra...
