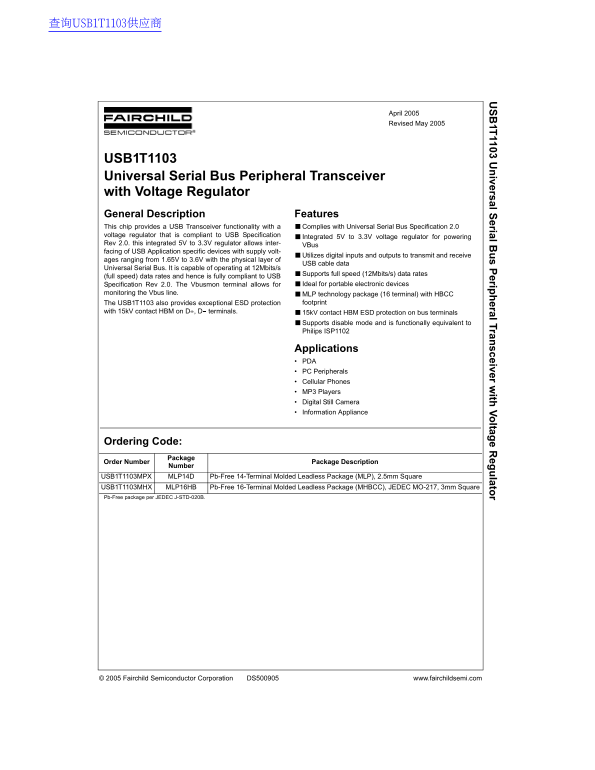

Fairchild USB1T1103 Universal Serial Bus Peripheral Transceiver with Voltage Regulator Data Sheet

查询USB1T1103供应商

1T 1103 U iversal S erial B s P erip eral Tran sceiver w ith Vo ltag e R eg lato

April 2005 Revised May 2005

USB1T1103 Universal Serial Bus Peripheral Transceiver with Voltage Regulator General Description Features This chip provides a USB Transceiver functionality with a ■Complies with Universal Serial Bus Specification 2.0 voltage regulator that is compliant to USB Specification Integrated 5V to 3.3V voltage regulator for powering Rev 2.0. this integrated 5V to 3.3V regulator allows inter-

facing of USB Application specific devices with supply volt-

■Utilizes digital inputs and outputs to transmit and receive

ages ranging from 1.65V to 3.6V with the physical layer of

USB cable data

Universal Serial Bus. It is capable of operating at 12Mbits/s

■Supports full speed (12Mbits/s) data rates

(full speed) data rates and hence is fully compliant to USB

Specification Rev 2.0. The Vbusmon terminal allows for Ideal for portable electronic devices

monitoring the Vbus line. ■MLP technology package (16 terminal) with HBCC

The USB1T1103 also provides exceptional ESD protection footprint

with 15k V contact HBM on D, D terminals. ■15k V contact HBM ESD protection on bus terminals

■Supports disable mode and is functionally equivalent to Philips ISP1102

Applications PDA PC Peripherals Cellular Phones MP3 Players Digital Still Camera Information Appliance

Ordering Code:

Package

Order Number Package Description

Number

USB1T1103MPX MLP14D Pb-Free 14-Terminal Molded Leadless Package (MLP), 2.5mm Square USB1T1103MHX MLP16HB Pb-Free 16-Terminal Molded Leadless Package (MHBCC), JEDEC MO-217, 3mm Square Pb-Free package per JEDEC J-STD-020B.

© 2005 Fairchild Semiconductor Corporation DS500905 www.fairchildsemi.com
