Fairchild 74LCX16245 Low Voltage 16-Bit Bidirectional Transceiver with 5V Tolerant Inputs and Outputs - Data Manual

Summary

The LCX16245 is a robust 16-bit bidirectional transceiver designed for low-voltage bus communications, featuring 5V tolerant inputs and outputs. This device ensures reliable data transfer in modern electronic systems while providing circuitry for noise reduction. The manual provides comprehensive technical specifications, including absolute maximum ratings, electrical characteristics across various packages (FBGA, SSOP, TSSOP), and detailed connection diagrams. It is essential reading for electrical engineers and designers integrating high-speed, low-power signal handling into complex bus architectures.

📄 Preview PAGE OF 10

Page 1 Text Content

查询74LCX16245GX供应商

74L 16245 L Vo ltag e 16-B it B id irectio al Tran sceiver w ith 5V To leran t In ts an tp ts

February 1994 Revised May 2005

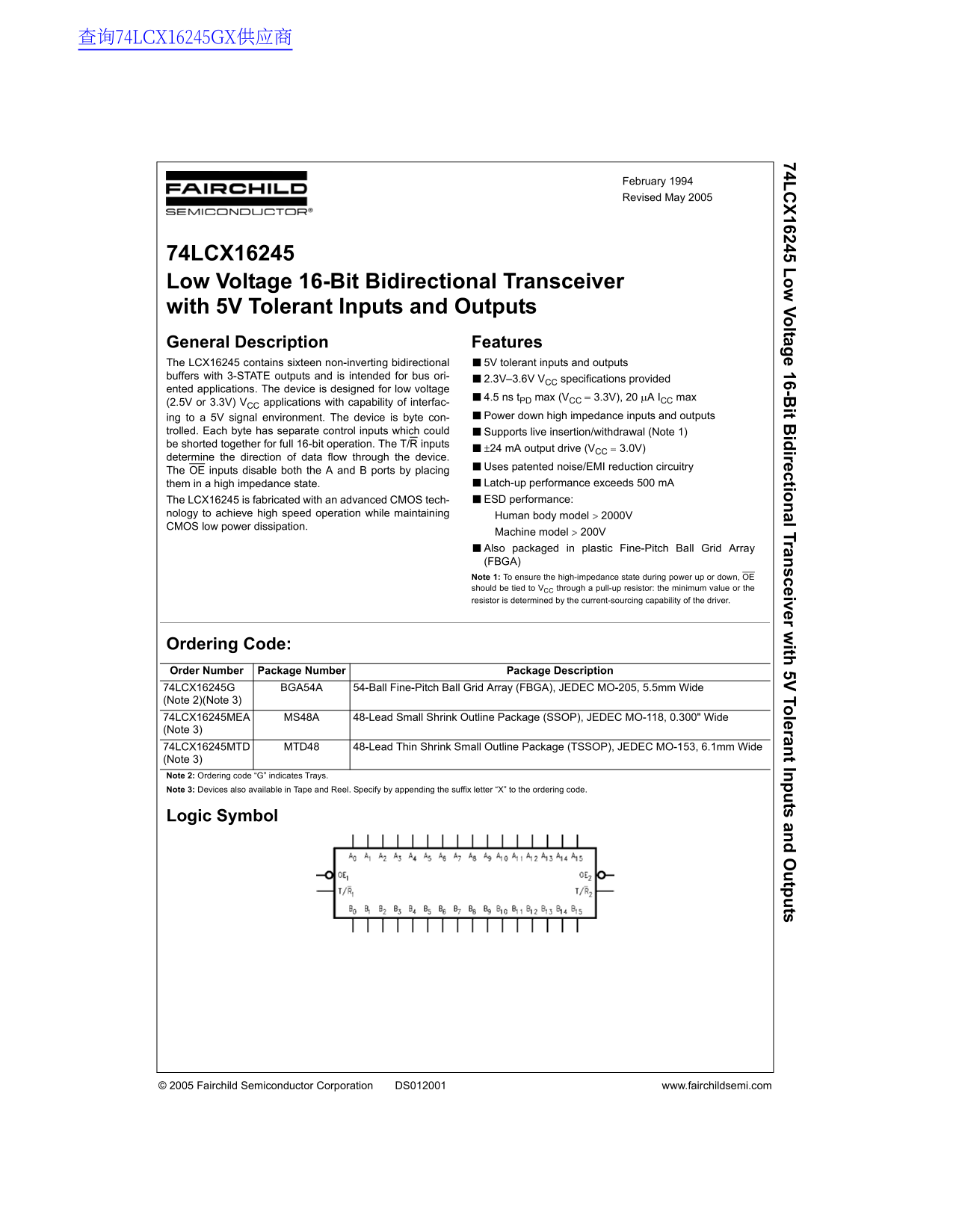

74LCX16245 Low Voltage 16-Bit Bidirectional Transceiver with 5V Tolerant Inputs and Outputs General Description Features The LCX16245 contains sixteen non-inverting bidirectional ■5V tolerant inputs and outputs buffers with 3-STATE outputs and is intended for bus ori- ■2.3V–3.6V VCC specifications provided ented applications. The device is designed for low voltage

■4.5 ns t PD max (VCC 3.3V), 20 PA ICC max

(2.5V or 3.3V) VCC applications with capability of interfac-

ing to a 5V signal environment. The device is byte con- ■Power down high impedance inputs and outputs

trolled. Each byte has separate control inputs which could ■Supports live insertion/withdrawal (Note 1) be shorted together for full 16-bit operation. The T/R inputs

■r24 m A output drive (VCC 3.0V)

determine the direction of data flow through the device.

■Uses patented noise/EMI reduction circuitry

The OE inputs disable both the A and B ports by placing

them in a high impedance state. ■Latch-up performance exceeds 500 m A The LCX16245 is fabricated with an advanced CMOS tech- ■ESD performance:

nology to achieve high speed operation while maintaining Human body model ! 2000V CMOS low power dissipation.

Machine model ! 200V ■Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) Note 1: To ensure the high-impedance state during power up or down, OE should be tied to VCC through a pull-up resistor: the minimum value or the resistor is determined by the current-sourcing capability of the driver.

Ordering Code: Order Number Package Number Package Description 74LCX16245G BGA54A 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide (Note 2)(Note 3) 74LCX16245MEA MS48A 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide (Note 3) 74LCX16245MTD MTD48 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide (Note 3) Note 2: Ordering code “G” indicates Trays. Note 3: Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Logic Symbol

© 2005 Fairchild Semiconductor Corporation DS012001 www.fairchildsemi.com

Page Summary Contents For Fairchild 74LCX16245 Low Voltage 16-Bit Bidirectional Transceiver with 5V Tolerant Inputs and Outputs - Data Manual

Page 1 查询74LCX16245GX供应商 74L 16245 L Vo ltag e 16-B it B id irectio al Tran sceiver w ith 5V To leran t In ts an tp ts February 1994 Revised May 2005 74LCX16245 Low Voltage 16-Bit Bidirectional Transceiver w...
Page 2 Connection Diagrams Pin Descriptions Pin Names Description Pin Assignment for SSOP and TSSOP OEn Output Enable Input T/Rn Transmit/Receive Input A0–A15 Side A Inputs or 3-STATE Outputs B0–B15 Side B I...
Page 3 74L Absolute Maximum Ratings(Note 4) Symbol Parameter Value Conditions Units VCC Supply Voltage 0.5 to 7.0 VI DC Input Voltage 0.5 to 7.0 VO DC Output Voltage 0.5 to 7.0 Output in 3-STATE 0.5 to VC...
Page 4 DC Electrical Characteristics (Continued) VCC TA 40q C to 85q C Symbol Parameter Conditions Units (V) Min Max ICC Quiescent Supply Current VI VCC or GND 2.3–3.6 3.6V d VI, VO d 5.5V (Note 7) 2.3–3.6...
Page 5 74L AC LOADING and WAVEFORMS Generic for LCX Family FIGURE 1. AC Test Circuit (CL includes probe and jig capacitance) Test Switch t PLH, t PHL Open t PZL, t PLZ 6V at VCC 3.3 r 0.3V VCC x 2 at VCC 2.5...
Page 6 Schematic Diagram Generic for LCX Family www.fairchildsemi.com
Page 7 74L Physical Dimensions inches (millimeters) unless otherwise noted 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide Package Number BGA54A www.fairchildsemi.com
Page 8 Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide Package Number MS48A www.fairchildsemi.com
Page 9 74L 16245 L Vo ltag e 16-B it B id irectio al Tran sceiver w ith 5V To leran t In ts an tp ts Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 48-Lead Thin Shrink Small Outl...
Page 10 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...
