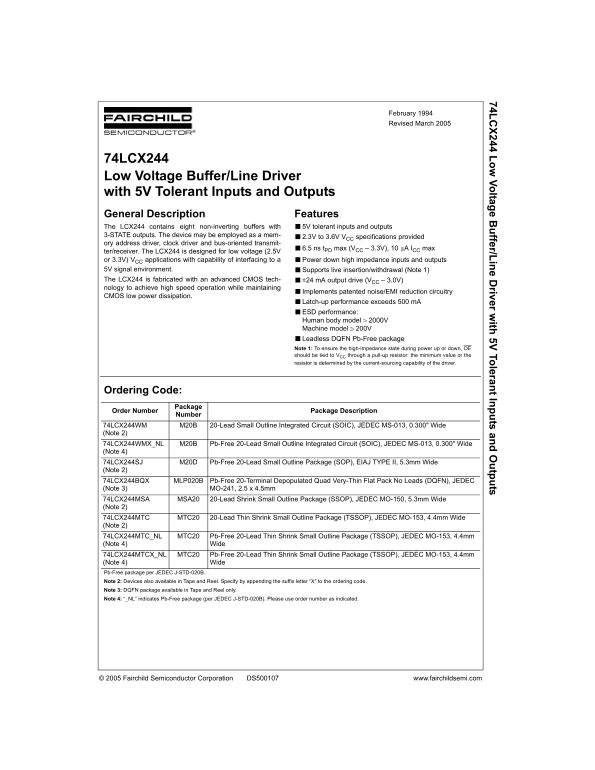

74L 244 L ltag e B ffer/L in e D river w ith 5V To leran t In ts an tp ts
February 1994 Revised March 2005
74LCX244 Low Voltage Buffer/Line Driver with 5V Tolerant Inputs and Outputs General Description Features The LCX244 contains eight non-inverting buffers with ■5V tolerant inputs and outputs 3-STATE outputs. The device may be employed as a mem- ■2.3V to 3.6V VCC specifications provided ory address driver, clock driver and bus-oriented transmit-
■6.5 ns t PD max (VCC 3.3V), 10 PA ICC max
ter/receiver. The LCX244 is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a ■Power down high impedance inputs and outputs 5V signal environment. ■Supports live insertion/withdrawal (Note 1) The LCX244 is fabricated with an advanced CMOS tech- ■r24 m A output drive (VCC 3.0V) nology to achieve high speed operation while maintaining
Implements patented noise/EMI reduction circuitry
CMOS low power dissipation.
■Latch-up performance exceeds 500 m A ■ESD performance: Human body model ! 2000V Machine model ! 200V ■Leadless DQFN Pb-Free package Note 1: To ensure the high-impedance state during power up or down, OE should be tied to VCC through a pull-up resistor: the minimum value or the resistor is determined by the current-sourcing capability of the driver.
Ordering Code:
Package
Order Number Package Description
Number
74LCX244WM M20B 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide (Note 2) 74LCX244WMX_NL M20B Pb-Free 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide (Note 4) 74LCX244SJ M20D Pb-Free 20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide (Note 2) 74LCX244BQX MLP020B Pb-Free 20-Terminal Depopulated Quad Very-Thin Flat Pack No Leads (DQFN), JEDEC (Note 3) MO-241, 2.5 x 4.5mm 74LCX244MSA MSA20 20-Lead Shrink Small Outline Package (SSOP), JEDEC MO-150, 5.3mm Wide (Note 2) 74LCX244MTC MTC20 20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide (Note 2) 74LCX244MTC_NL MTC20 Pb-Free 20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm (Note 4) Wide 74LCX244MTCX_NL MTC20 Pb-Free 20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm (Note 4) Wide Pb-Free package per JEDEC J-STD-020B. Note 2: Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code. Note 3: DQFN package available in Tape and Reel only. Note 4: “_NL” indicates Pb-Free package (per JEDEC J-STD-020B). Please use order number as indicated.
