Fairchild 74LCX16374 Low Voltage 16-Bit D-Type Flip-Flop with 5V Tolerant Inputs and Outputs - Data Manual

Summary

This low-voltage, 16-bit D-Type Flip-Flop provides reliable data storage and signal handling for sensitive digital circuits. Ideal for applications operating at 2.5V or 3.3V logic levels, it uniquely features 5V tolerant inputs and outputs, ensuring smooth system integration across mixed voltage environments. The comprehensive manual details its full functionality through schematics and electrical specifications, providing engineers with all necessary guidance on various package options (TSSOP, FBGA) to design robust, high-precision electronic systems.

📄 Preview PAGE OF 10

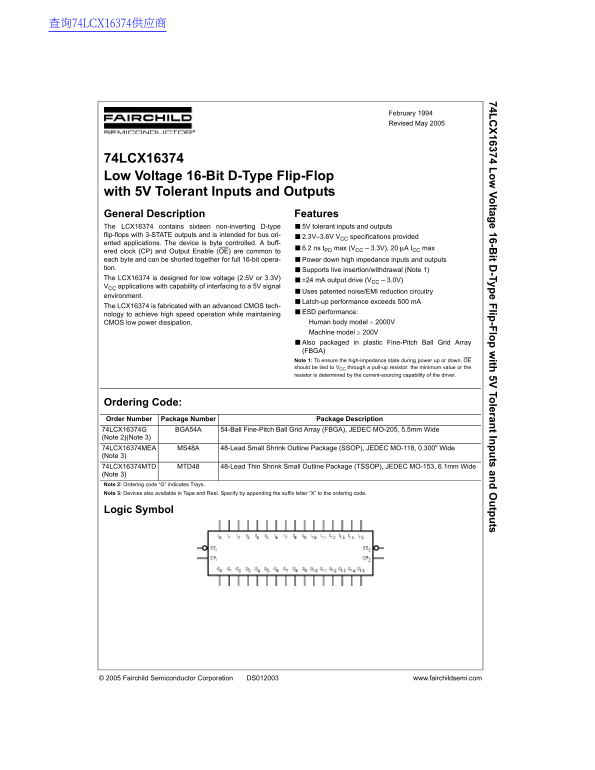

Page 1 Text Content

查询74LCX16374供应商

74L 16374 L Vo ltag e 16-B it D -Typ e F lip -F lo ith 5V To leran t In ts an tp ts

February 1994 Revised May 2005

74LCX16374 Low Voltage 16-Bit D-Type Flip-Flop with 5V Tolerant Inputs and Outputs General Description Features The LCX16374 contains sixteen non-inverting D-type ■5V tolerant inputs and outputs flip-flops with 3-STATE outputs and is intended for bus ori- ■2.3V–3.6V VCC specifications provided ented applications. The device is byte controlled. A buff-

■6.2 ns t PD max (VCC 3.3V), 20 PA ICC max

ered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit opera- ■Power down high impedance inputs and outputs tion.

■Supports live insertion/withdrawal (Note 1)

The LCX16374 is designed for low voltage (2.5V or 3.3V)

■r24 m A output drive (VCC 3.0V)

VCC applications with capability of interfacing to a 5V signal

■Uses patented noise/EMI reduction circuitry

environment.

■Latch-up performance exceeds 500 m A

The LCX16374 is fabricated with an advanced CMOS tech-

■ESD performance:

nology to achieve high speed operation while maintaining

CMOS low power dissipation. Human body model ! 2000V Machine model ! 200V ■Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) Note 1: To ensure the high-impedance state during power up or down, OE should be tied to VCC through a pull-up resistor: the minimum value or the resistor is determined by the current-sourcing capability of the driver.

Ordering Code: Order Number Package Number Package Description 74LCX16374G BGA54A 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide (Note 2)(Note 3) 74LCX16374MEA MS48A 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide (Note 3) 74LCX16374MTD MTD48 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide (Note 3) Note 2: Ordering code “G” indicates Trays. Note 3: Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Logic Symbol

© 2005 Fairchild Semiconductor Corporation DS012003 www.fairchildsemi.com

Page Summary Contents For Fairchild 74LCX16374 Low Voltage 16-Bit D-Type Flip-Flop with 5V Tolerant Inputs and Outputs - Data Manual

Page 1 查询74LCX16374供应商 74L 16374 L Vo ltag e 16-B it D -Typ e F lip -F lo ith 5V To leran t In ts an tp ts February 1994 Revised May 2005 74LCX16374 Low Voltage 16-Bit D-Type Flip-Flop with 5V Tolerant Input...
Page 2 Connection Diagrams Pin Descriptions Pin Assignment for SSOP and TSSOP Pin Names Description OEn Output Enable Input (Active LOW) CPn Clock Pulse Input I0–I15 Inputs O0–O15 Outputs NC No Connect FBGA ...
Page 3 74L Functional Description The LCX16374 consists of sixteen edge-triggered flip-flops state of their individual D inputs that meet the setup and with individual D-type inputs and 3-STATE true outputs....
Page 4 Absolute Maximum Ratings(Note 4) Symbol Parameter Value Conditions Units VCC Supply Voltage 0.5 to 7.0 VI DC Input Voltage 0.5 to 7.0 VO DC Output Voltage 0.5 to 7.0 3-STATE 0.5 to VCC  0.5 Output...
Page 5 74L DC Electrical Characteristics (Continued) VCC TA 40q C to 85q C Symbol Parameter Conditions Units (V) Min Max ICC Quiescent Supply Current VI VCC or GND 2.3  3.6 3.6V d VI, VO d 5.5V (Note 7) 2...
Page 6 AC LOADING and WAVEFORMS Generic for LCX Family FIGURE 1. AC Test Circuit (CL includes probe and jig capacitance) Test Switch t PLH, t PHL Open t PZL, t PLZ 6V at VCC 3.3 r 0.3V, and 2.7V VCC x 2 at V...
Page 7 74L Schematic Diagram Generic for LCX Family www.fairchildsemi.com
Page 8 Physical Dimensions inches (millimeters) unless otherwise noted 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide Package Number BGA54A www.fairchildsemi.com
Page 9 74L Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide Package Number MS48A www.fairchildsemi.com
Page 10 lta -B it -T yp lip -F lo it le ra In ts tp ts Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide P...

Manual Details

Brand Fairchild
Pages 10
File Size 126.80 KB
Published June 05, 2026
7 views
