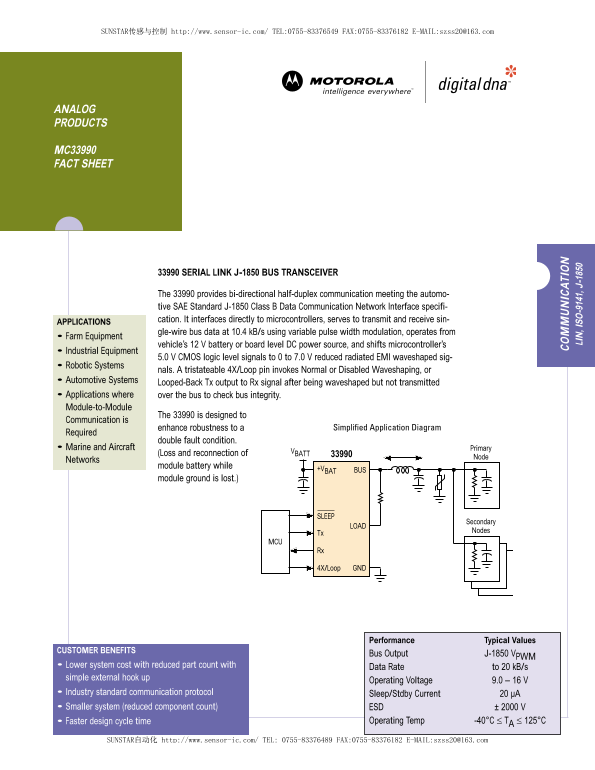

Page 1 Text Content
SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:[email protected]
ANALOG PRODUCTS
MC33990 FACT SHEET
33990 SERIAL LINK J-1850 BUS TRANSCEIVER
The 33990 provides bi-directional half-duplex communication meeting the automo- tive SAE Standard J-1850 Class B Data Communication Network Interface specifi- cation. It interfaces directly to microcontrollers, serves to transmit and receive sin-
APPLICATIONS
gle-wire bus data at 10.4 k B/s using variable pulse width modulation, operates from
Farm Equipment
vehicle’s 12 V battery or board level DC power source, and shifts microcontroller’s
Industrial Equipment
5.0 V CMOS logic level signals to 0 to 7.0 V reduced radiated EMI waveshaped sig-
Robotic Systems
nals. A tristateable 4X/Loop pin invokes Normal or Disabled Waveshaping, or
Automotive Systems Looped-Back Tx output to Rx signal after being waveshaped but not transmitted Applications where over the bus to check bus integrity. Module-to-Module
The 33990 is designed to
Communication is
enhance robustness to a Simplified Application Diagram
Required
double fault condition.
Marine and Aircraft Primary
(Loss and reconnection of VBATT
Networks
module battery while
+VBAT BUS
module ground is lost.)
SLEEP
Secondary
Nodes
4X/Loop GND CO IC AT IO LI , I SO -9 1, -1
Performance Typical Values
CUSTOMER BENEFITS
Bus Output J-1850 VPWM
Lower system cost with reduced part count with Data Rate to 20 k B/s simple external hook up
Operating Voltage 9.0 – 16 V
Industry standard communication protocol Sleep/Stdby Current 20 µA Smaller system (reduced component count) ESD ± 2000 V
Faster design cycle time Operating Temp -40°C ≤ TA 125°C
