A high-performance, compact surface-mount Schottky Rectifier designed for reliable DC power conversion. This comprehensive technical manual provides all necessary details—including absolute maximum ratings, forward voltage characteristics, and thermal performance data. Ideal for electronics designers and electrical engineering professionals developing new circuit boards that require efficient, precise rectifier components capable of handling 3.0W dissipation.

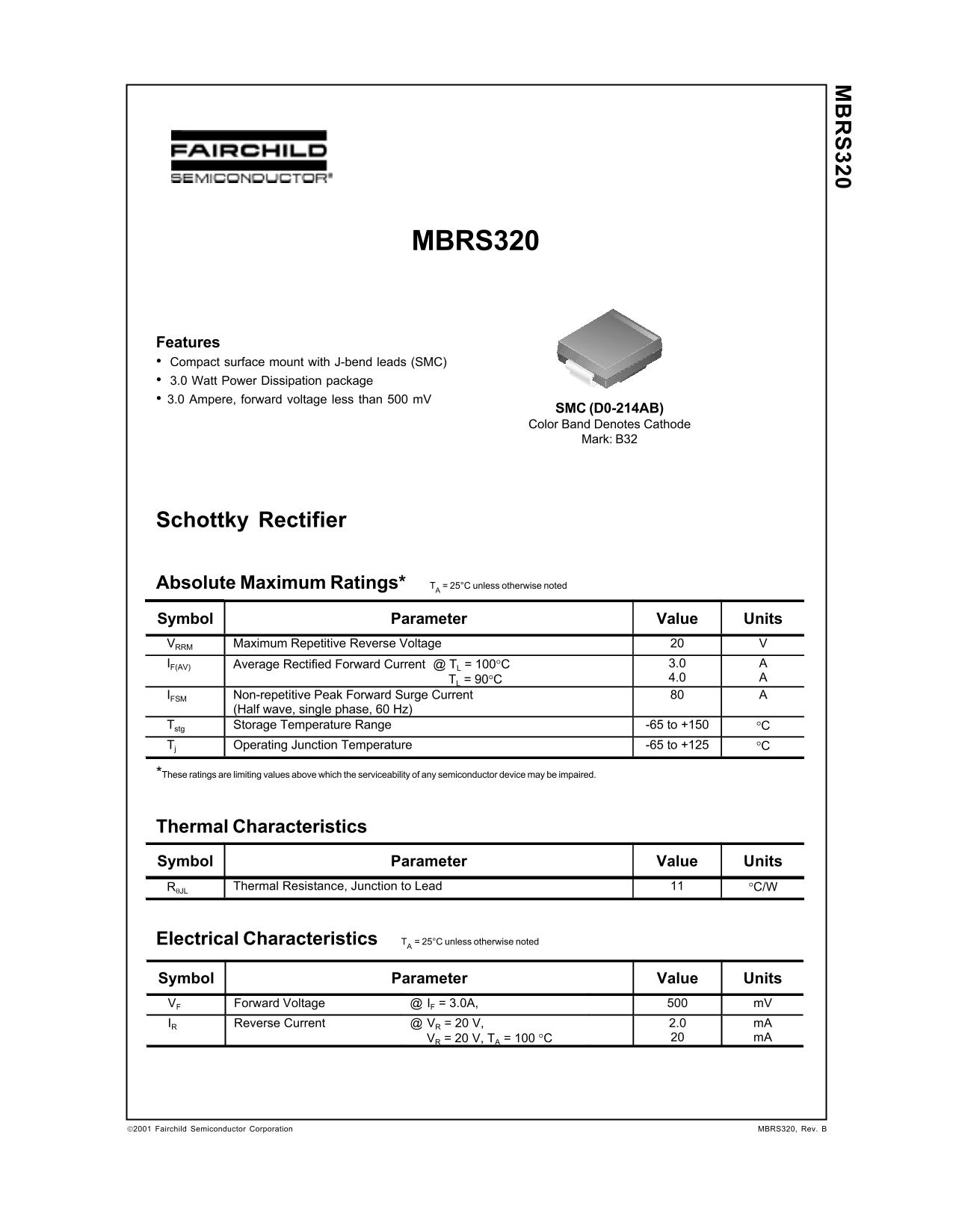

Page 1 Text Content
MBRS320
Features Compact surface mount with J-bend leads (SMC) 3.0 Watt Power Dissipation package • 3.0 Ampere, forward voltage less than 500 m V
SMC (D0-214AB) Color Band Denotes Cathode Mark: B32
Schottky Rectifier
Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage 20 V
IF(AV) Average Rectified Forward Current @ TL = 100°C 3.0 TL = 90°C 4.0
IFSM Non-repetitive Peak Forward Surge Current 80 A
(Half wave, single phase, 60 Hz)
Tstg Storage Temperature Range -65 to +150 °C Tj Operating Junction Temperature -65 to +125 °C *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units RθJL Thermal Resistance, Junction to Lead 11 °C/W
Electrical Characteristics TA = 25°C unless otherwise noted
Symbol Parameter Value Units VF Forward Voltage @ IF = 3.0A, 500 m V
IR Reverse Current @ VR = 20 V, 2.0 m A
VR = 20 V, TA = 100 °C
MBRS320, Rev. B2001 Fairchild Semiconductor Corporation
Page Summary Contents For Fairchild MBRS320 Schottky Rectifiers Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 3 |
| File Size | 45.19 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can this component be used in critical life support devices?
No, usage requires the express written approval of Fairchild Semiconductor Corporation.
What packaging style is utilized for this rectifier?
It utilizes a Compact surface mount with J-bend leads (SMC).
What are the approved operating junction temperature limits?
The specified operating junction temperature range is -65 to +125 degrees Celsius.
