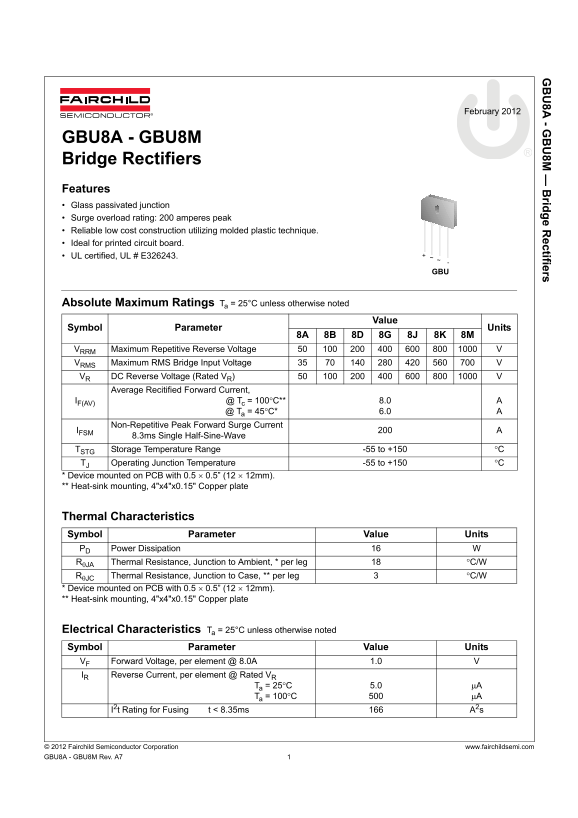

Page 1 Text Content
8A - G 8M ridge R ectifiers
February 2012
GBU8A - GBU8M Bridge Rectifiers Features Glass passivated junction Surge overload rating: 200 amperes peak Reliable low cost construction utilizing molded plastic technique. Ideal for printed circuit board. UL certified, UL # E326243.
Absolute Maximum Ratings Ta = 25°C unless otherwise noted
Value
Symbol Parameter Units
VRRM Maximum Repetitive Reverse Voltage VRMS Maximum RMS Bridge Input Voltage VR DC Reverse Voltage (Rated VR)
Average Recitified Forward Current,
IF(AV) @ Tc = 100°C** 8.0
@ Ta = 45°C* 6.0
Non-Repetitive Peak Forward Surge Current IFSM 8.3ms Single Half-Sine-Wave TSTG Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature -55 to +150 °C
* Device mounted on PCB with 0.5 × 0.5” (12 × 12mm). ** Heat-sink mounting, 4"x4"x0.15" Copper plate
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation RθJA Thermal Resistance, Junction to Ambient, * per leg °C/W RθJC Thermal Resistance, Junction to Case, ** per leg °C/W * Device mounted on PCB with 0.5 × 0.5” (12 × 12mm). ** Heat-sink mounting, 4"x4"x0.15" Copper plate
Electrical Characteristics Ta = 25°C unless otherwise noted Symbol Parameter Value Units VF Forward Voltage, per element @ 8.0A 1.0 IR Reverse Current, per element @ Rated VR
Ta = 25°C 5.0 μA Ta = 100°C μA I2t Rating for Fusing t < 8.35ms A2s
© 2012 Fairchild Semiconductor Corporation www.fairchildsemi.com GBU8A - GBU8M Rev. A7
