MBR3035PT MBR3045PT MBR3050PT MBR3060PT Fairchild Schottky Rectifiers Data Manual
Summary
These high-efficiency Schottky Rectifiers are engineered for demanding power applications, including low voltage and high frequency inverters, free wheeling circuits, and polarity protection systems. This comprehensive technical manual provides critical specifications on electrical performance—covering forward current drop, reverse leakage, peak surge capabilities, and thermal dissipation. Designed for engineers and product developers, the documentation ensures reliable component selection and integration into advanced power conversion devices.

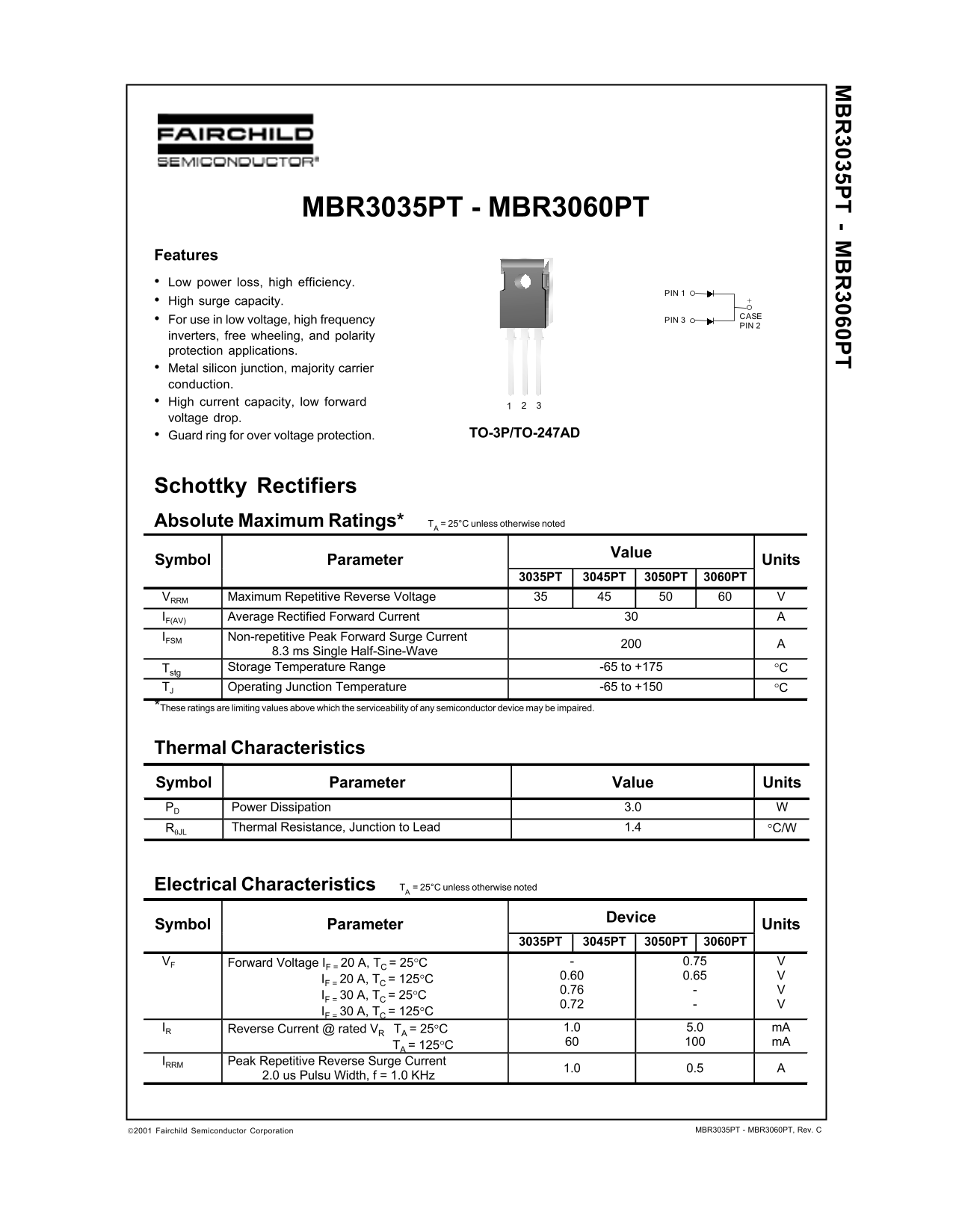

Page 1 Text Content
3035PT - M 3060PT
MBR3035PT - MBR3060PT
Features Low power loss, high efficiency.
PIN 1
High surge capacity.
For use in low voltage, high frequency PIN 3
PIN 2
inverters, free wheeling, and polarity protection applications. Metal silicon junction, majority carrier conduction. High current capacity, low forward voltage drop.
Guard ring for over voltage protection. TO-3P/TO-247AD
Schottky Rectifiers Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Value
Symbol Parameter Units 3035PT 3045PT 3050PT 3060PT VRRM Maximum Repetitive Reverse Voltage 35 45 50 60 V IF(AV) Average Rectified Forward Current 30 A IFSM Non-repetitive Peak Forward Surge Current
8.3 ms Single Half-Sine-Wave 200 A
Tstg Storage Temperature Range -65 to +175 °C TJ Operating Junction Temperature -65 to +150 °C *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 3.0 W RθJL Thermal Resistance, Junction to Lead 1.4 °C/W
Electrical Characteristics TA = 25°C unless otherwise noted
Device
Symbol Parameter Units 3035PT 3045PT 3050PT 3060PT VF Forward Voltage IF = 20 A, TC = 25°C 0.75
IF = 20 A, TC = 125°C
IF = 30 A, TC = 25°C
IF = 30 A, TC = 125°C
IR Reverse Current @ rated VR TA = 25°C 1.0 5.0 m A
TA = 125°C
IRRM Peak Repetitive Reverse Surge Current
2.0 us Pulsu Width, f = 1.0 KHz 1.0 0.5 A
MBR3035PT - MBR3060PT, Rev. C2001 Fairchild Semiconductor Corporation
Page Summary Contents For MBR3035PT MBR3045PT MBR3050PT MBR3060PT Fairchild Schottky Rectifiers Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 3 |
| File Size | 68.55 KB |
| Published | July 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the safe operating junction temperature range?
The Operating Junction Temperature range is specified as -65 to +150 °C.
Are these Schottky Rectifiers suitable for life support systems?
No, they are not authorized for use as critical components in life support devices without explicit written approval from Fairchild Semiconductor Corporation.
What is the maximum non-repetitive peak forward surge current rating?
The datasheet lists the Non-repetitive Peak Forward Surge Current (FSM), which reaches 200 A at 8.3 ms for certain models.
How is power dissipation related to ambient temperature?
Power Dissipation (P) is listed as 3.0 W, and the data features a Forward Current Derating Curve to guide usage across varying temperatures.
