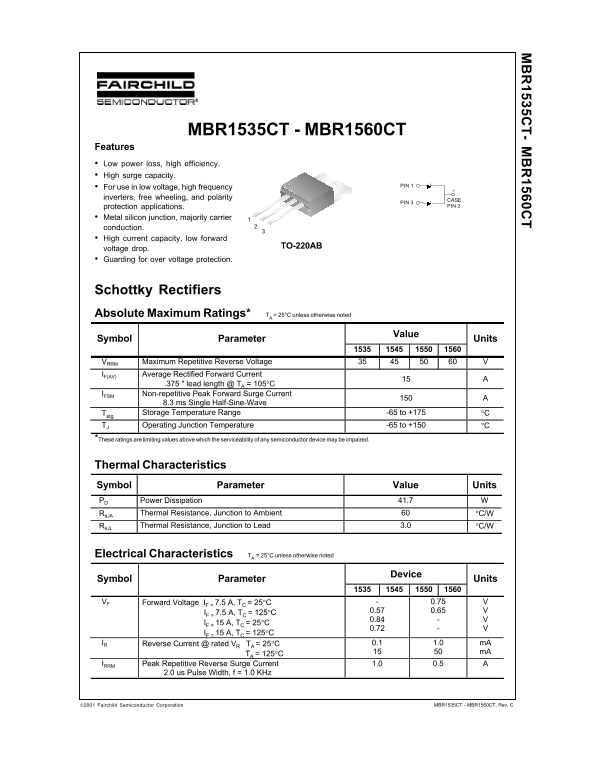

Fairchild MBR1535CT, MBR1545CT, MBR1550CT, MBR1560CT Schottky Rectifiers Data Manual

MBR1535CT - MBR1560CT

Features Low power loss, high efficiency. High surge capacity.

PIN 1

For use in low voltage, high frequency inverters, free wheeling, and polarity

PIN 3

protection applications. PIN 2

Metal silicon junction, majority carrier conduction. High current capacity, low forward

TO-220AB

voltage drop. Guarding for over voltage protection.

Schottky Rectifiers Absolute Maximum Ratings* TA = 25°C unless otherwise noted

Value

Symbol Parameter Units 1535 1545 1550 1560 VRRM Maximum Repetitive Reverse Voltage 35 45 50 60 V IF(AV) Average Rectified Forward Current

.375 " lead length @ TA = 105°C 15 A

IFSM Non-repetitive Peak Forward Surge Current

8.3 ms Single Half-Sine-Wave 150 A

Tstg Storage Temperature Range -65 to +175 °C TJ Operating Junction Temperature -65 to +150 °C *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 41.7 W RθJA Thermal Resistance, Junction to Ambient 60 °C/W RθJL Thermal Resistance, Junction to Lead 3.0 °C/W

Electrical Characteristics TA = 25°C unless otherwise noted

Device

Symbol Parameter Units 1535 1545 1550 1560

VF Forward Voltage IF = 7.5 A, TC = 25°C 0.75

IF = 7.5 A, TC = 125°C

IF = 15 A, TC = 25°C

IF = 15 A, TC = 125°C

IR Reverse Current @ rated VR TA = 25°C 0.1 1.0 m A

TA = 125°C

IRRM Peak Repetitive Reverse Surge Current 1.0 0.5 A

2.0 us Pulse Width, f = 1.0 KHz

MBR1535CT - MBR1560CT, Rev. C2001 Fairchild Semiconductor Corporation
