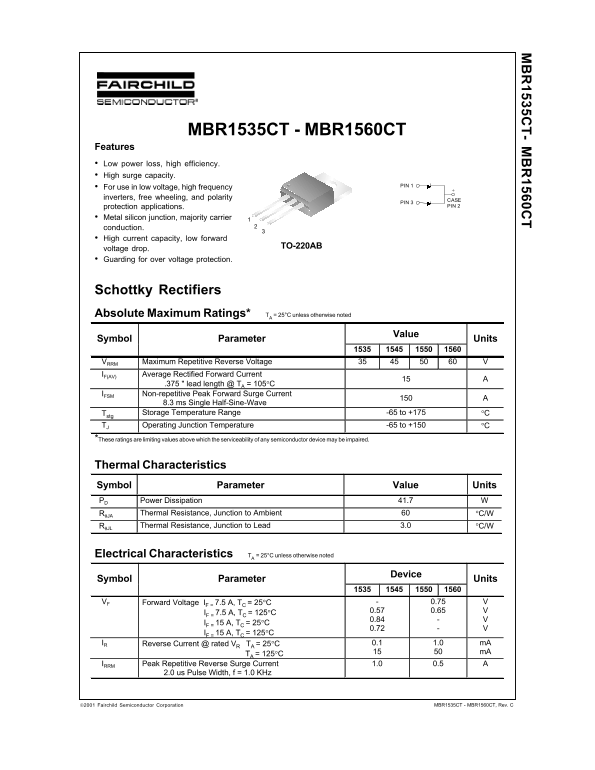

MBR1535CT - MBR1560CT
Features Low power loss, high efficiency. High surge capacity.
PIN 1
For use in low voltage, high frequency inverters, free wheeling, and polarity
PIN 3
protection applications. PIN 2
Metal silicon junction, majority carrier conduction. High current capacity, low forward
TO-220AB
voltage drop. Guarding for over voltage protection.
Schottky Rectifiers Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Value
Symbol Parameter Units 1535 1545 1550 1560 VRRM Maximum Repetitive Reverse Voltage 35 45 50 60 V IF(AV) Average Rectified Forward Current
.375 " lead length @ TA = 105°C 15 A
IFSM Non-repetitive Peak Forward Surge Current
8.3 ms Single Half-Sine-Wave 150 A
Tstg Storage Temperature Range -65 to +175 °C TJ Operating Junction Temperature -65 to +150 °C *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 41.7 W RθJA Thermal Resistance, Junction to Ambient 60 °C/W RθJL Thermal Resistance, Junction to Lead 3.0 °C/W
Electrical Characteristics TA = 25°C unless otherwise noted
Device
Symbol Parameter Units 1535 1545 1550 1560
VF Forward Voltage IF = 7.5 A, TC = 25°C 0.75
IF = 7.5 A, TC = 125°C
IF = 15 A, TC = 25°C
IF = 15 A, TC = 125°C
IR Reverse Current @ rated VR TA = 25°C 0.1 1.0 m A
TA = 125°C
IRRM Peak Repetitive Reverse Surge Current 1.0 0.5 A
2.0 us Pulse Width, f = 1.0 KHz
