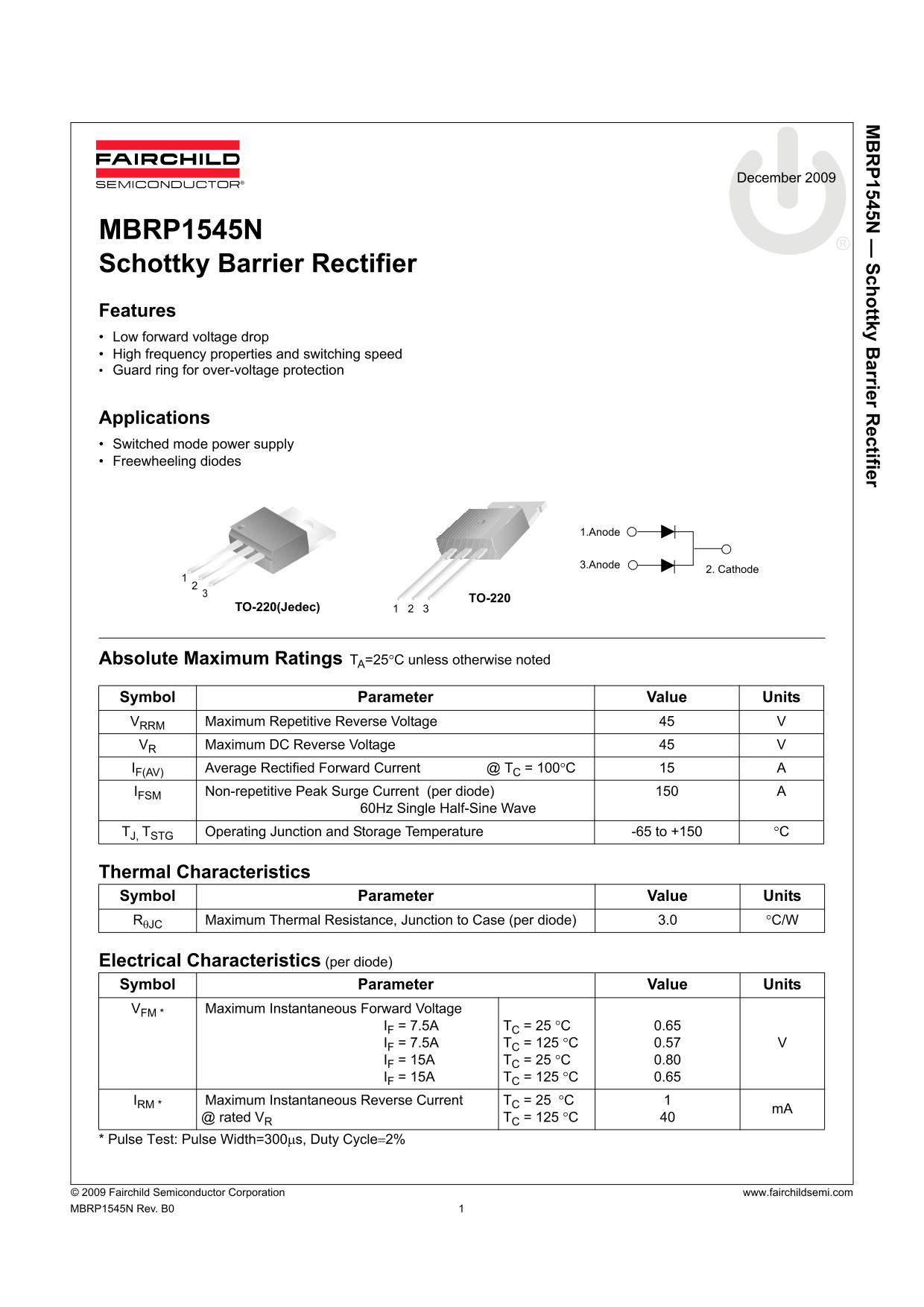

P1545N Schottky B arrier R ectifier
December 2009
MBRP1545N Schottky Barrier Rectifier Features Low forward voltage drop High frequency properties and switching speed Guard ring for over-voltage protection
Applications Switched mode power supply Freewheeling diodes
1.Anode
3.Anode
2. Cathode
TO-220
1 2 3 TO-220(Jedec)
Absolute Maximum Ratings TA=25°C unless otherwise noted
Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage
VR Maximum DC Reverse Voltage IF(AV) Average Rectified Forward Current @ TC = 100°C IFSM Non-repetitive Peak Surge Current (per diode) 60Hz Single Half-Sine Wave TJ, TSTG Operating Junction and Storage Temperature -65 to +150 °C
Thermal Characteristics Symbol Parameter Value Units RθJC Maximum Thermal Resistance, Junction to Case (per diode) 3.0 °C/W
Electrical Characteristics (per diode) Symbol Parameter Value Units VFM * Maximum Instantaneous Forward Voltage
IF = 7.5A TC = 25 °C 0.65
IF = 7.5A TC = 125 °C 0.57 IF = 15A TC = 25 °C 0.80
IF = 15A TC = 125 °C 0.65
IRM * Maximum Instantaneous Reverse Current TC = 25 °C
@ rated VR TC = 125 °C
* Pulse Test: Pulse Width=300μs, Duty Cycle=2%
© 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com MBRP1545N Rev. B0
