Fairchild FQP6N60C FQPF6N60C User's Manual

Summary

This advanced N-Channel MOSFET is engineered for high-efficiency power conversion and exceptional switching performance. Designed with proprietary DMOS technology, it features a robust 600V rating and 5.5A continuous drain current capacity, making it ideal for demanding applications. The accompanying manual provides comprehensive technical data, including detailed electrical specifications, thermal characteristics, and reliable operating guidelines. This component is essential for engineers developing switched mode power supplies, active power factor correction (PFC) circuits, and sophisticated electronic lamp ballasts requiring fast transient response.

📄 Preview PAGE OF 10

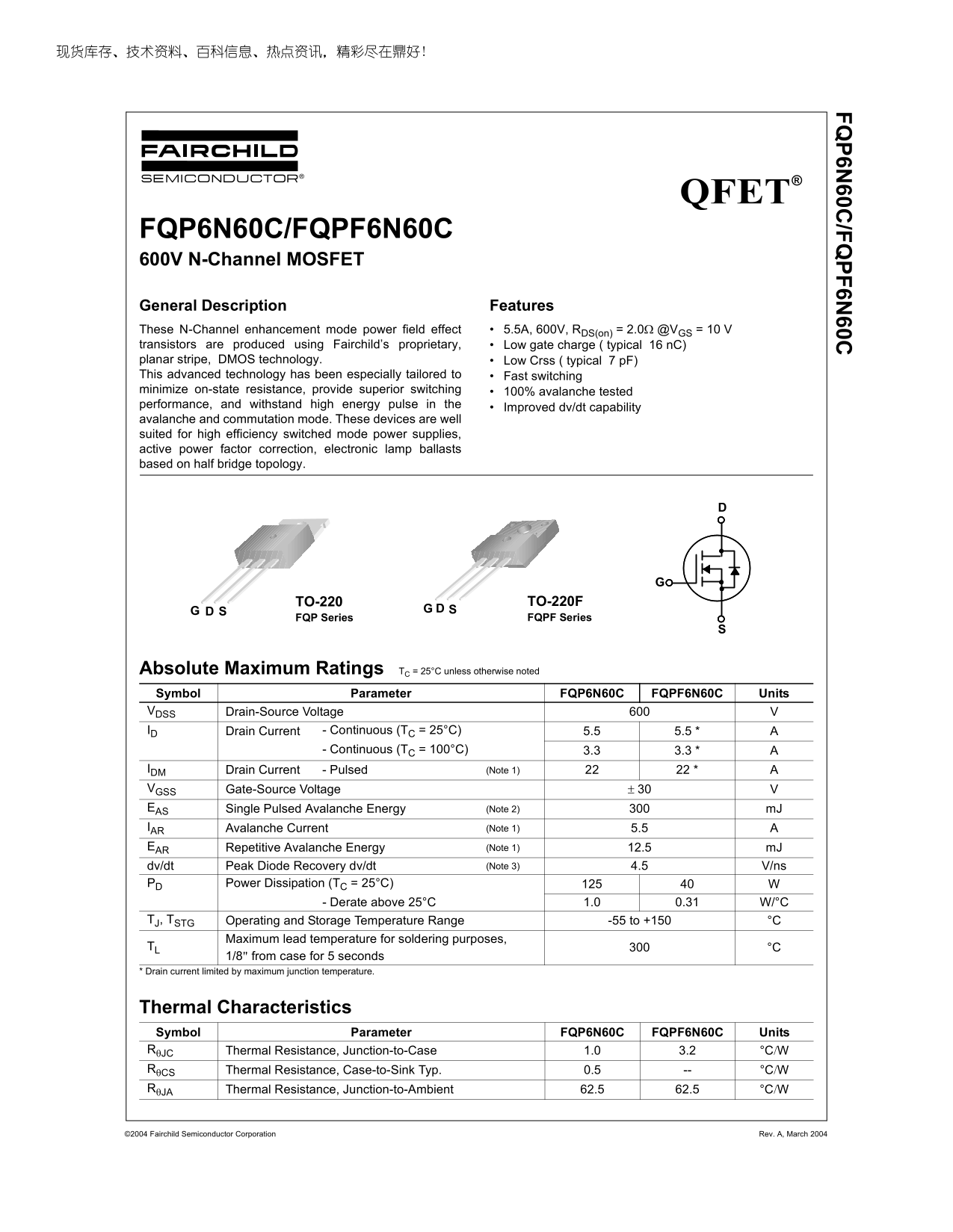

Page 1 Text Content

FQ P6N 60C /FQ PF6N 60C

QFET®

FQP6N60C/FQPF6N60C 600V N-Channel MOSFET

General Description Features These N-Channel enhancement mode power field effect 5.5A, 600V, RDS(on) = 2.0Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 16 n C) planar stripe, DMOS technology. Low Crss ( typical 7 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts based on half bridge topology.

TO-220 TO-220F

SD SD

FQP Series G FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQP6N60C FQPF6N60C Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 5.5 5.5 *

- Continuous (TC = 100°C) 3.3 3.3 *

IDM Drain Current - Pulsed (Note 1) 22 * VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 5.5 EAR Repetitive Avalanche Energy (Note 1) 12.5 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 1.0 0.31 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

* Drain current limited by maximum junction temperature.

Thermal Characteristics Symbol Parameter FQP6N60C FQPF6N60C Units RθJC Thermal Resistance, Junction-to-Case 1.0 3.2 °C/W RθCS Thermal Resistance, Case-to-Sink Typ. 0.5 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 62.5 °C/W

©2004 Fairchild Semiconductor Corporation Rev. A, March 2004

Page Summary Contents For Fairchild FQP6N60C FQPF6N60C User's Manual

Page 1 FQ P6N 60C /FQ PF6N 60C QFET® FQP6N60C/FQPF6N60C 600V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 5.5A, 600V, RDS(on) = 2.0Ω @VGS = 10 V transisto...
Page 2 FQ P6N 60C /FQ PF6N 60C Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 ...
Page 3 FQ P6N 60C /FQ PF6N 60C Typical Characteristics Typical Characteristics (Continued) ap ac ita nc es [p F] [Ω ra in ur re nt [A DS (O N) D, ra in -S ou rc n- es is ta nc VGS Top : 15.0 V 10.0 V 8.0 V 7...
Page 4 FQ P6N 60C /FQ PF6N 60C Typical Characteristics (Continued) D, ra in ur re nt [A D, ra in ur re nt [A BV DS S, (N or al iz ed ra in -S ou rc Br ea kd ow Vo lta ge 0.9 Notes :※ 1. VGS = 0 V Notes :※ 2....
Page 5 FQ P6N 60C /FQ PF6N 60C Typical Characteristics (Continued) (t) , T he rm al es po ns (t) , T he rm al es po ns .2 JC JC otes :※ -1 .1 . Z JC(t) = 1.00 /W ax.℃ . D ty Factor, D t1/t2 . TJM - T C = DM ...
Page 6 FQ P6N 60C /FQ PF6N 60C Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unc...
Page 7 FQ P6N 60C /FQ PF6N 60C Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse ...
Page 8 FQ P6N 60C /FQ PF6N 60C Package Dimensions TO-220 (1 .4 6) 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Dimensions in Millimeters ©2004 Fairchild Semiconductor Corporation Rev. A, March 2004
Page 9 FQ P6N 60C /FQ PF6N 60C Package Dimensions (Continued) TO-220F 9. 0. .8 ±0 .2 3. 0. MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Dimensions in Millimeters ©2004 Fairchild Semiconductor Corporatio...
Page 10 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...

Manual Details

Brand Fairchild
Pages 10
File Size 926.03 KB
Published July 06, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What applications are these N-Channel MOSFETs best suited for?

They are well-suited for high efficiency switched mode power supplies, active power factor correction, and electronic lamp ballasts based on half bridge topology.

What is the maximum continuous drain current rating at 25°C?

The continuous drain current (ID) is rated at 5.5 A when operating at a temperature of 25°C.

What are the operating temperature limits for this MOSFET?

The defined operating and storage temperature range for the device is -55 to +150 °C.

Are these components safe for use in life support systems?

No, Fairchild's products are not authorized for use as critical components in life support devices or systems without express written approval.
