Fairchild FDC638P User's Manual

Summary

The FDC638P is a highly efficient P-Channel MOSFET engineered for modern power management applications, featuring low on-state resistance and low gate charge. Ideal for battery charging systems, load switching circuits, and DC/DC converters requiring small footprints, particularly in SuperSOT-6 packages. This comprehensive datasheet provides detailed electrical characteristics, absolute maximum ratings, and performance curves necessary for engineers designing high-performance power electronics with superior efficiency.

📄 Preview PAGE OF 5

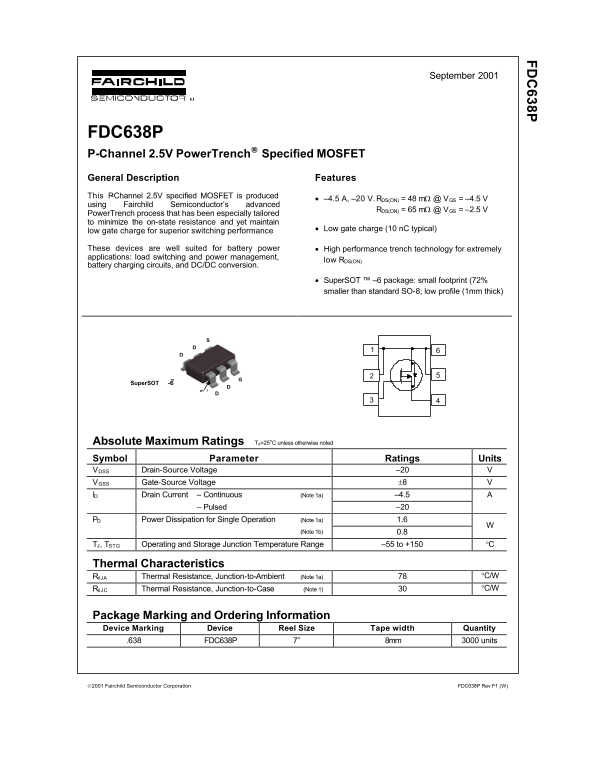

Page 1 Text Content

September 2001

FDC638P P-Channel 2.5V Power Trench Specified MOSFET General Description Features This P-Channel 2.5V specified MOSFET is produced

• –4.5 A, –20 V. RDS(ON) = 48 mΩ @ VGS = –4.5 V

using Fairchild Semiconductor’s advanced

RDS(ON) = 65 mΩ @ VGS = –2.5 V

Power Trench process that has been especially tailored to minimize the on-state resistance and yet maintain

• Low gate charge (10 n C typical)

low gate charge for superior switching performance

These devices are well suited for battery power • High performance trench technology for extremely applications: load switching and power management,

low RDS(ON)

battery charging circuits, and DC/DC conversion.

• Super SOT ™ –6 package: small footprint (72% smaller than standard SO-8; low profile (1mm thick)

TM GSuper SOT -6

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage –20 V VGSS Gate-Source Voltage ±8 V ID Drain Current – Continuous (Note 1a) –4.5 A – Pulsed –20

Power Dissipation for Single Operation (Note 1a) 1.6 PD (Note 1b) 0.8

TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C

Thermal Characteristics RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) 78 °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) 30 °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity .638 FDC638P 7’’ 8mm 3000 units

2001 Fairchild Semiconductor Corporation FDC638P Rev F1 (W)

Page Summary Contents For Fairchild FDC638P User's Manual

Page 1 September 2001 FDC638P P-Channel 2.5V Power Trench Specified MOSFET General Description Features This P-Channel 2.5V specified MOSFET is produced • –4.5 A, –20 V. RDS(ON) = 48 mΩ @ VGS = –4.5 V using...
Page 2 Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain–Source Breakdown Voltage VGS = 0 V, ID = –250 µA –20 V ∆B...
Page 3 Typical Characteristics -I IN (A -I IN (A LI ZE D, D IN -S -R IS TA VGS = -4.5V 1.6 1.4 VGS = -2.5V -VDS, DRAIN TO SOURCE VOLTAGE (V) -ID, DRAIN CURRENT (A) Figure 1. On-Region Characteristics. Figure...
Page 4 Typical Characteristics -V TE -S LT (V -I IN (A S, G r(t LI ZE FF EC TI VE D, D TR SI EN TH ER ES IS TA VDS = -5V ID = -4.5A f = 1 MHz -10V VGS = 0 V Qg, GATE CHARGE (n C) -VDS, DRAIN TO SOURCE VOLTAG...
Page 5 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
