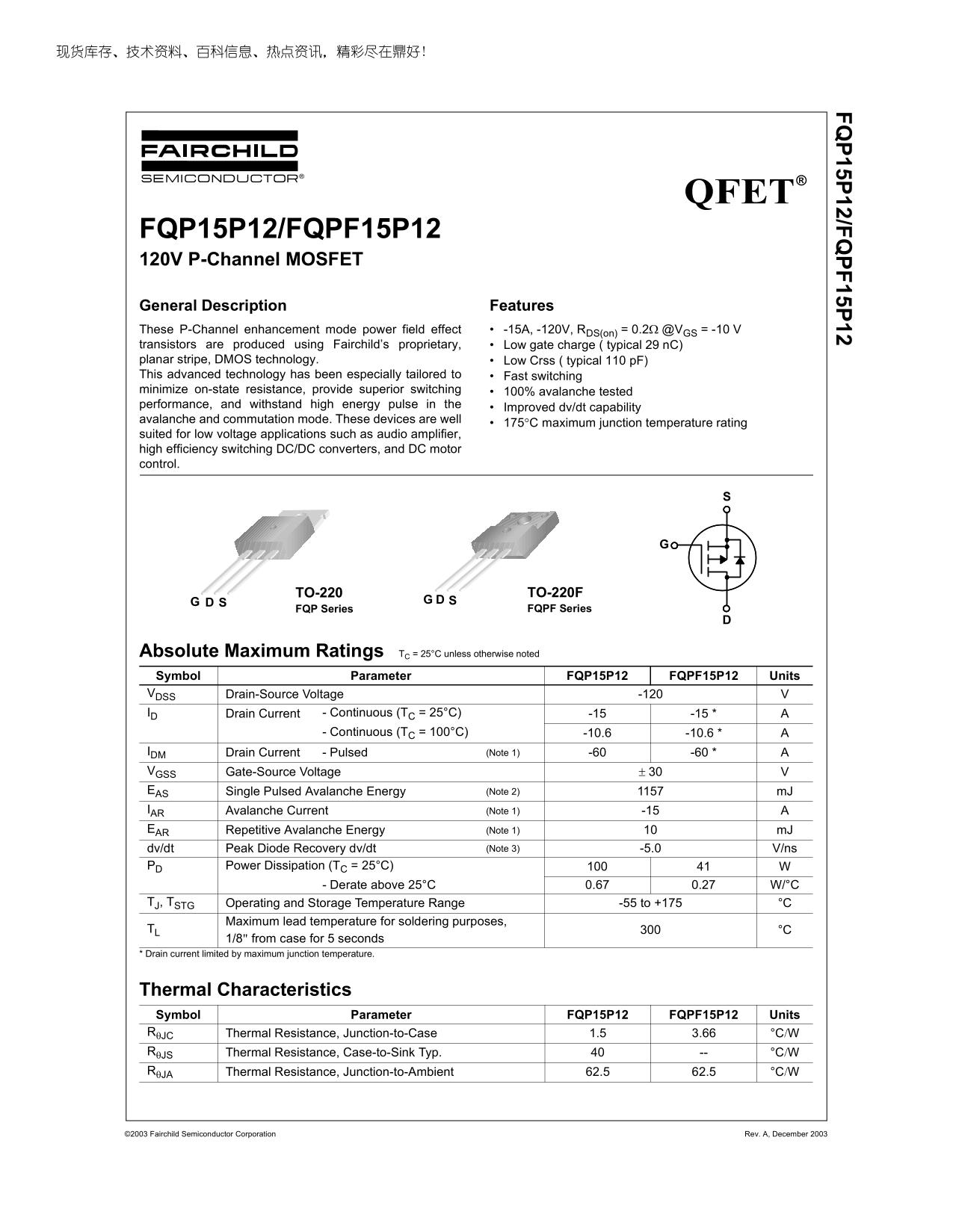

FQ P15P12/FQ PF15P12

QFET®

FQP15P12/FQPF15P12 120V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -15A, -120V, RDS(on) = 0.2Ω @VGS = -10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 29 n C) planar stripe, DMOS technology. Low Crss ( typical 110 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well

175°C maximum junction temperature rating

suited for low voltage applications such as audio amplifier, high efficiency switching DC/DC converters, and DC motor control.

TO-220 TO-220F

SD SD

FQP Series G FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQP15P12 FQPF15P12 Units VDSS Drain-Source Voltage -120 ID Drain Current - Continuous (TC = 25°C) -15 -15 *

- Continuous (TC = 100°C) -10.6 -10.6 *

IDM Drain Current - Pulsed (Note 1) -60 -60 * VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) -15 EAR Repetitive Avalanche Energy (Note 1) m J

dv/dt Peak Diode Recovery dv/dt (Note 3) -5.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.67 0.27 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

* Drain current limited by maximum junction temperature.

Thermal Characteristics Symbol Parameter FQP15P12 FQPF15P12 Units RθJC Thermal Resistance, Junction-to-Case 1.5 3.66 °C/W RθJS Thermal Resistance, Case-to-Sink Typ. °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 62.5 °C/W

©2003 Fairchild Semiconductor Corporation Rev. A, December 2003

Page Summary Contents For Fairchild FQP15P12 FQPF15P12 User Guide

Page 1 FQ P15P12/FQ PF15P12 QFET® FQP15P12/FQPF15P12 120V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -15A, -120V, RDS(on) = 0.2Ω @VGS = -10 V transistor...
Page 2 FQ P15P12/FQ PF15P12 Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ...
Page 3 FQ P15P12/FQ PF15P12 Typical Characteristics DS (O N) [Ω Ca pa cit an ce [p F] Dr ain -S ou rc On -R es ist an ce -I , D ra in Cu rre nt [A VGS Top : -15.0 V -10.0 V -8.0 V -7.0 V -6.0 V -5.5 V -5.0 V...
Page 4 FQ P15P12/FQ PF15P12 Typical Characteristics (Continued) -B DS , ( No rm ali ze d) -I , D ra in ur re nt [A -I , D ra in Cu rre nt [A Dr ain -S ou rc e B re ak do wn olt ag 0.9 ※ Notes : 1. VGS = 0 V ...
Page 5 FQ P15P12/FQ PF15P12 Typical Characteristics (Continued) rm l R sp se rm l R sp se JC(t JC(t .2 te .1 . D ty to t2 -1 . T JM C( t) .0 PDM in le ls t1 t2 re ls ra io [s Figure 11-1. Transient Thermal R...
Page 6 FQ P15P12/FQ PF15P12 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS on off td(on) tr td(off) tf VDD Unclamped Inductive Sw...
Page 7 FQ P15P12/FQ PF15P12DUT Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Compliment of DUT (N-Channel) VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D ...
Page 8 FQ P15P12/FQ PF15P12 Package Dimensions TO-220 (1 .4 6) 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Dimensions in Millimeters Rev. A, December 2003©2003 Fairchild Semiconductor Corporation
Page 9 FQ P15P12/FQ PF15P12 Package Dimensions (Continued) TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Dimensions in Millimeters Rev. A, December 2003©2003 Fairchild Semiconductor Corporation
Page 10 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...
