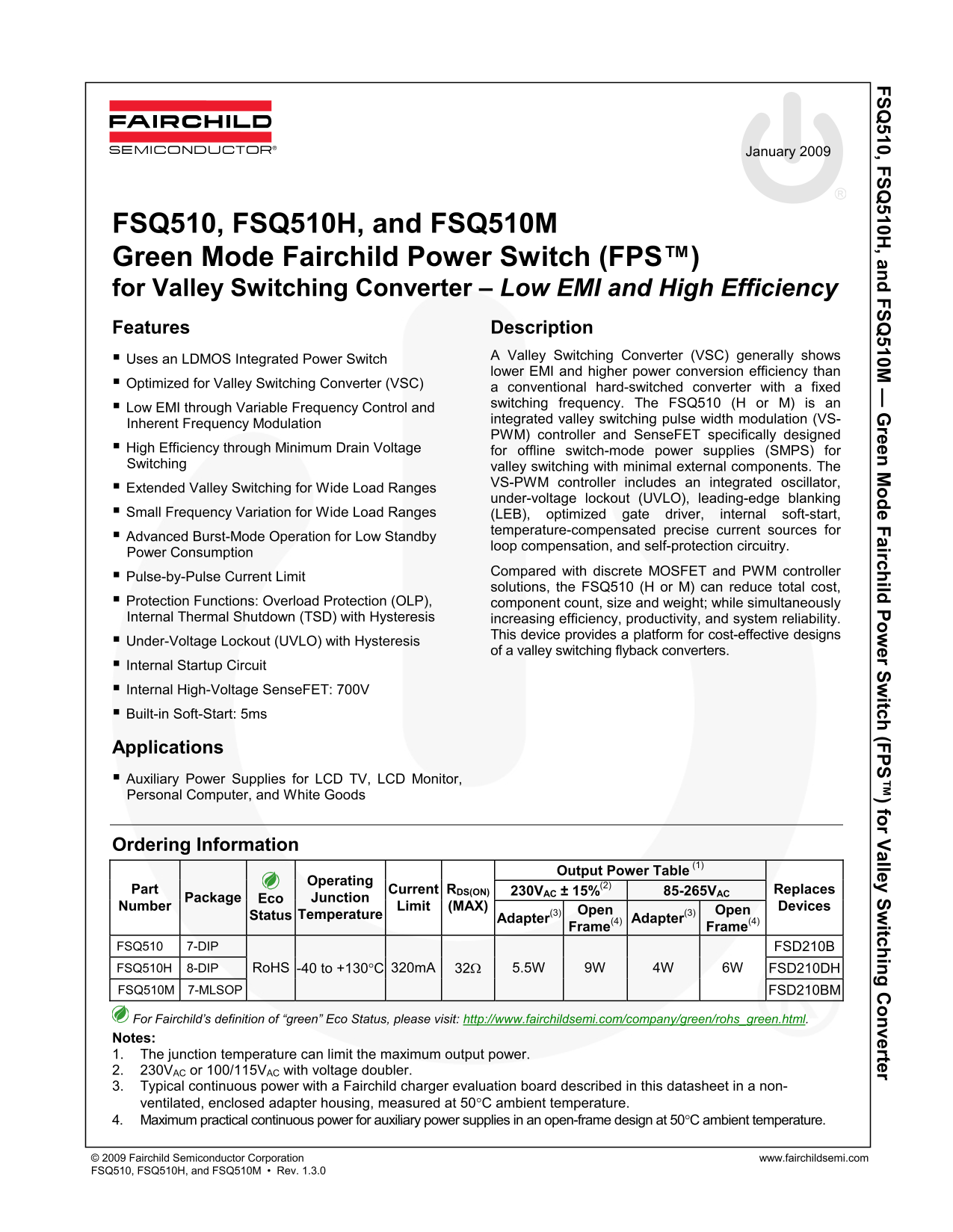

FSQ 510, FSQ 510H , and FSQ 510M reen M ode Fairchild Pow er Sw itch (FPS™ ) for Valley Sw itching C onverter
January 2009
FSQ510, FSQ510H, and FSQ510M Green Mode Fairchild Power Switch (FPS™) for Valley Switching Converter – Low EMI and High Efficiency Features Description
Uses an LDMOS Integrated Power Switch A Valley Switching Converter (VSC) generally shows lower EMI and higher power conversion efficiency than
Optimized for Valley Switching Converter (VSC)
a conventional hard-switched converter with a fixed switching frequency. The FSQ510 (H or M) is an
Low EMI through Variable Frequency Control and
integrated valley switching pulse width modulation (VS-
Inherent Frequency Modulation
PWM) controller and Sense FET specifically designed
High Efficiency through Minimum Drain Voltage for offline switch-mode power supplies (SMPS) for Switching valley switching with minimal external components. The
VS-PWM controller includes an integrated oscillator,
Extended Valley Switching for Wide Load Ranges
under-voltage lockout (UVLO), leading-edge blanking
Small Frequency Variation for Wide Load Ranges (LEB), optimized gate driver, internal soft-start,
temperature-compensated precise current sources for
Advanced Burst-Mode Operation for Low Standby
loop compensation, and self-protection circuitry.
Power Consumption
Compared with discrete MOSFET and PWM controller
Pulse-by-Pulse Current Limit
solutions, the FSQ510 (H or M) can reduce total cost,
Protection Functions: Overload Protection (OLP), component count, size and weight; while simultaneously Internal Thermal Shutdown (TSD) with Hysteresis increasing efficiency, productivity, and system reliability.
This device provides a platform for cost-effective designs
Under-Voltage Lockout (UVLO) with Hysteresis
of a valley switching flyback converters.
Internal Startup Circuit Internal High-Voltage Sense FET: 700V Built-in Soft-Start: 5ms Applications Auxiliary Power Supplies for LCD TV, LCD Monitor, Personal Computer, and White Goods
Ordering Information
Output Power Table (1)
Operating
Current RDS(ON) 230VAC ± 15%(2) 85-265VAC Part Replaces
Eco Junction
Number Package Limit (MAX) Devices
Open Open
Status Temperature
Adapter(3) Adapter(3)
Frame(4) Frame(4)
FSQ510 7-DIP FSD210B FSQ510H 8-DIP FSD210DH Ro HS -40 to +130°C 320m A 32Ω 5.5W 9W 4W 6W FSQ510M 7-MLSOP FSD210BM
For Fairchild’s definition of “green” Eco Status, please visit: http://www.fairchildsemi.com/company/green/rohs_green.html. Notes: 1. The junction temperature can limit the maximum output power. 2. 230VAC or 100/115VAC with voltage doubler. 3. Typical continuous power with a Fairchild charger evaluation board described in this datasheet in a non- ventilated, enclosed adapter housing, measured at 50°C ambient temperature. 4. Maximum practical continuous power for auxiliary power supplies in an open-frame design at 50°C ambient temperature.
© 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com FSQ510, FSQ510H, and FSQ510M • Rev. 1.3.0
