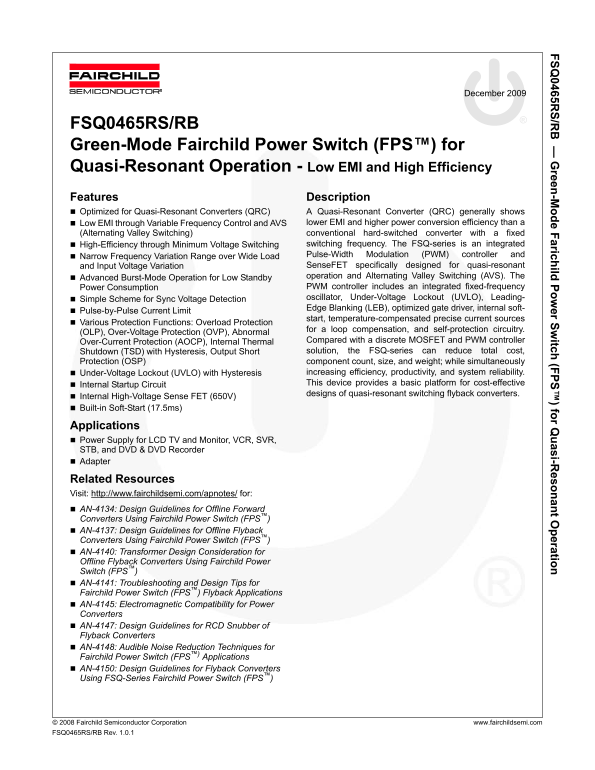

FSQ 0465R S/R reen-M ode Farichild Pow er Sw itch (FPS ) for Q uasi-R esonant O peration
December 2009
FSQ0465RS/RB Green-Mode Fairchild Power Switch (FPS) for Quasi-Resonant Operation - Low EMI and High Efficiency Features Description Optimized for Quasi-Resonant Converters (QRC) A Quasi-Resonant Converter (QRC) generally shows
Low EMI through Variable Frequency Control and AVS lower EMI and higher power conversion efficiency than a
(Alternating Valley Switching) conventional hard-switched converter with a fixed
High-Efficiency through Minimum Voltage Switching switching frequency. The FSQ-series is an integrated Narrow Frequency Variation Range over Wide Load Pulse-Width Modulation (PWM) controller and and Input Voltage Variation Sense FET specifically designed for quasi-resonant Advanced Burst-Mode Operation for Low Standby operation and Alternating Valley Switching (AVS). The Power Consumption PWM controller includes an integrated fixed-frequency Simple Scheme for Sync Voltage Detection oscillator, Under-Voltage Lockout (UVLO), Leading- Edge Blanking (LEB), optimized gate driver, internal soft-
Pulse-by-Pulse Current Limit
start, temperature-compensated precise current sources
Various Protection Functions: Overload Protection
for a loop compensation, and self-protection circuitry.
(OLP), Over-Voltage Protection (OVP), Abnormal
Over-Current Protection (AOCP), Internal Thermal Compared with a discrete MOSFET and PWM controller Shutdown (TSD) with Hysteresis, Output Short solution, the FSQ-series can reduce total cost,
Protection (OSP) component count, size, and weight; while simultaneously
Under-Voltage Lockout (UVLO) with Hysteresis increasing efficiency, productivity, and system reliability. Internal Startup Circuit This device provides a basic platform for cost-effective designs of quasi-resonant switching flyback converters.
Internal High-Voltage Sense FET (650V) Built-in Soft-Start (17.5ms)
Applications Power Supply for LCD TV and Monitor, VCR, SVR, STB, and DVD & DVD Recorder Adapter Related Resources Visit: http://www.fairchildsemi.com/apnotes/ for: AN-4134: Design Guidelines for Offline Forward Converters Using Fairchild Power Switch (FPS) AN-4137: Design Guidelines for Offline Flyback Converters Using Fairchild Power Switch (FPS) AN-4140: Transformer Design Consideration for Offline Flyback Converters Using Fairchild Power Switch (FPS) AN-4141: Troubleshooting and Design Tips for Fairchild Power Switch (FPS) Flyback Applications AN-4145: Electromagnetic Compatibility for Power Converters AN-4147: Design Guidelines for RCD Snubber of Flyback Converters AN-4148: Audible Noise Reduction Techniques for Fairchild Power Switch (FPS) Applications AN-4150: Design Guidelines for Flyback Converters Using FSQ-Series Fairchild Power Switch (FPS)
