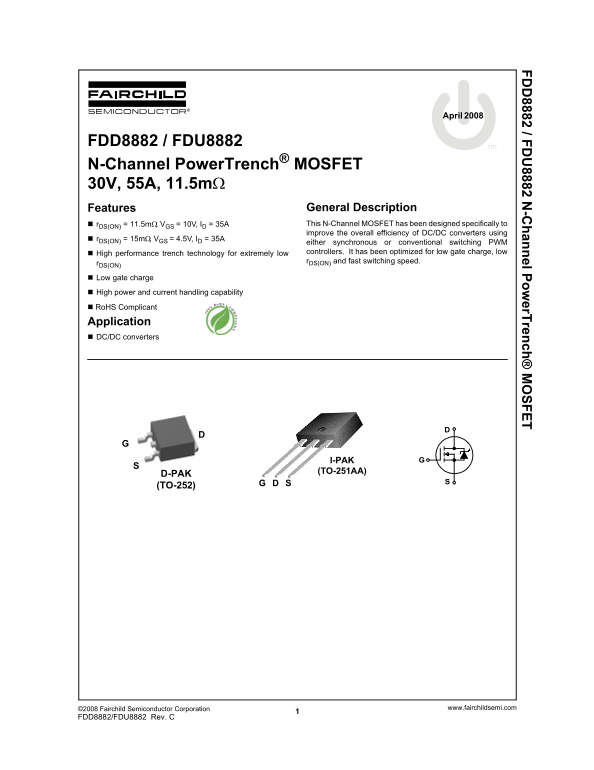

Page 1 Text Content

8882 / F 8882 N -C an el P er T ren ch

April 2008

FDD8882 / FDU8882

N-Channel Power Trench® MOSFET 30V, 55A, 11.5mΩ

Features General Description r DS(ON) = 11.5mΩ, VGS = 10V, ID = 35A This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using

r DS(ON) = 15mΩ, VGS = 4.5V, ID = 35A

either synchronous or conventional switching PWM High performance trench technology for extremely low controllers. It has been optimized for low gate charge, low r DS(ON) and fast switching speed.

r DS(ON)

Low gate charge

High power and current handling capability

Ro HS Complicant

Application DC/DC converters

I-PAK (TO-251AA)

TO-252D-PAK

(TO-252)

2008 Fairchild Semiconductor Corporation www.fairchildsemi.com1

DD8882/FDU8882 Rev. C

Page Summary Contents For Fairchild FDD8882 FDU8882 User Guide

Page 1 8882 / F 8882 N -C an el P er T ren ch April 2008 FDD8882 / FDU8882 N-Channel Power Trench® MOSFET 30V, 55A, 11.5mΩ Features General Description r DS(ON) = 11.5mΩ, VGS = 10V, ID = 35A This N-Channel M...
Page 2 8882 / F 8882 N -C an el P er T ren ch Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain to Source Voltage VGS Gate to Source Voltage ±20 Drain Curren...
Page 3 8882 / F 8882 N -C an el P er T ren ch Dynamic Characteristics CISS Input Capacitance p F VDS = 15V, VGS = 0V, COSS Output Capacitance p F f = 1MHz CRSS Reverse Transfer Capacitance p F RG Gate Resist...
Page 4 8882 / F 8882 N -C an el P er T ren ch Typical Characteristics TC = 25°C unless otherwise noted IS IP IO LT IP IE , P θJ , N IZ 1.0 CURRENT LIMITED BY PACKAGE 0.2 VGS = 10V TC, CASE TEMPERATURE (o C) ...
Page 5 8882 / F 8882 N -C an el P er T ren ch Typical Characteristics TC = 25°C unless otherwise noted (O IN , D IN , D IN IS TA If R = 0 t AV = (L)(IAS)/(1.3*RATED BVDSS - VDD) If R ≠ 0 t AV = (L/R)ln[(IAS*...
Page 6 8882 / F 8882 N -C an el P er T ren ch Typical Characteristics TC = 25°C unless otherwise noted , C PA IT IZ VGS = VDS, ID = 250µA ID = 250µA TJ, JUNCTION TEMPERATURE (o C) TJ, JUNCTION TEMPERATURE (o...
Page 7 8882 / F 8882 N -C an el P er T ren ch Test Circuits and Waveforms BVDSS VARY t P TO OBTAIN IAS REQUIRED PEAK IAS RG 0V IAS Figure 15. Unclamped Energy Test Circuit Figure 16. Unclamped Energy Wavefor...
Page 8 8882 / F 8882 N -C an el P er T ren ch Thermal Resistance vs. Mounting Pad Area The maximum rated junction temperature, TJM, and the thermal resistance of the heat dissipating path determines RθJA = 3...
Page 9 8882 / F 8882 N -C an el P er T ren ch PSPICE Electrical Model .SUBCKT FDD8882 2 1 3 ; rev October 2004 Ca 12 8 9e-10 Cb 15 14 9e-10 LDRAIN Cin 6 8 1.55e-9 DPLCAP DRAIN Dbody 7 5 Dbody MOD RLDRAIN RSL...
Page 10 8882 / F 8882 N -C an el P er T ren ch SABER Electrical Model rev October 2004 template FDD8882 n2,n1,n3 electrical n2,n1,n3 var i iscl dp..model dbodymod = (isl=2.0e-12,ikf=10,nl=1.01,rs=5.7e-3,trs1=...
Page 11 8882 / F 8882 N -C an el P er T ren ch PSPICE Thermal Model th JUNCTION REV 23 October 2004 FDD8882T CTHERM1 TH 6 5.6e-4 CTHERM2 6 5 6.8e-4 CTHERM3 5 4 2.0e-3 RTHERM1 CTHERM1 CTHERM4 4 3 2.8e-3 CTHERM...
Page 12 TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidianries, and is not intended to be an exhaustive li...
