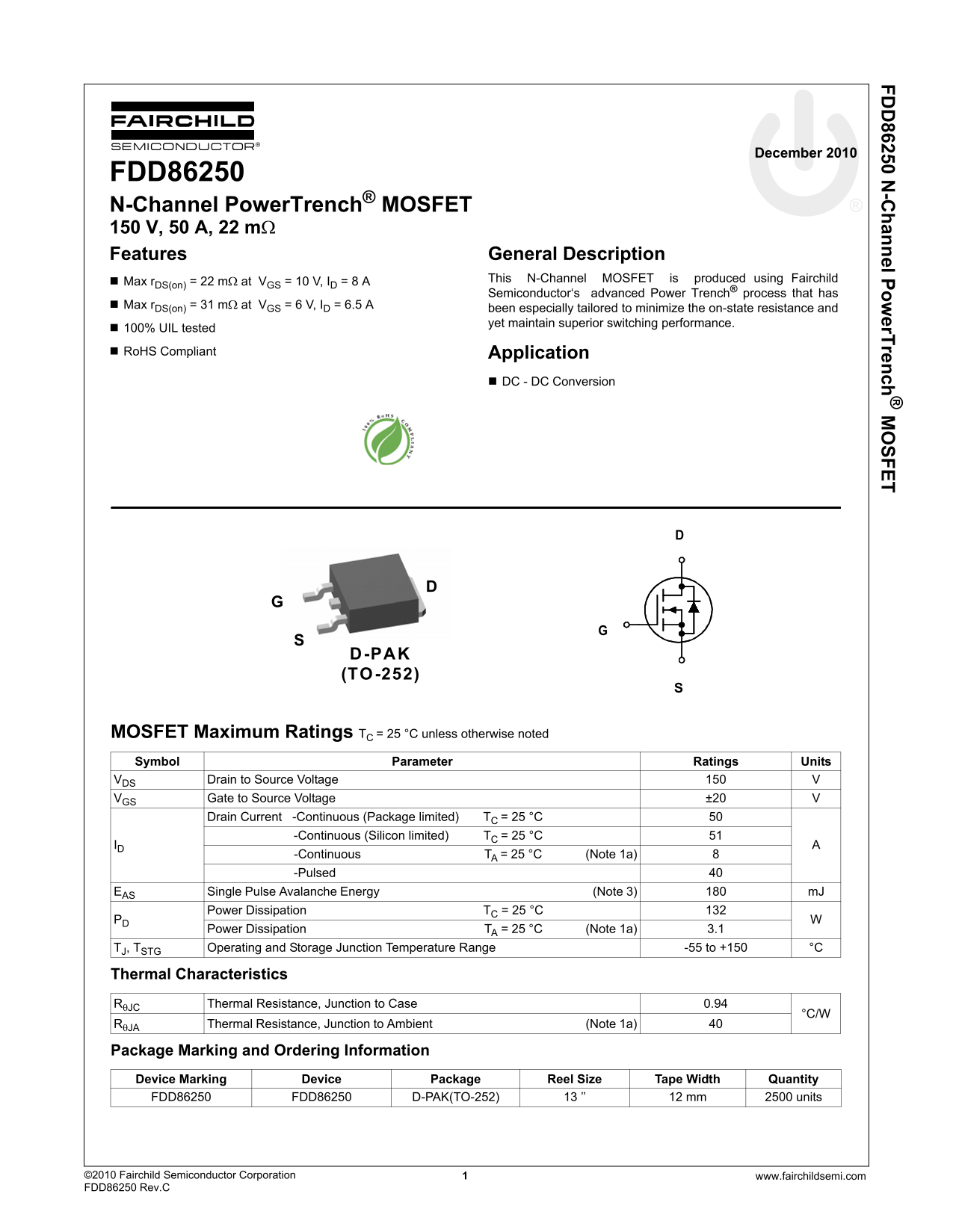

FD 86250 N -C hannel Pow er Trench SFET
December 2010
FDD86250 N-Channel Power Trench® MOSFET 150 V, 50 A, 22 mΩ Features General Description
This N-Channel MOSFET is produced using Fairchild
Max r DS(on) = 22 mΩ at VGS = 10 V, ID = 8 A
Semiconductor‘s advanced Power Trench® process that has
Max r DS(on) = 31 mΩ at VGS = 6 V, ID = 6.5 A
been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.
100% UIL tested
Ro HS Compliant Application
DC - DC Conversion
TO -252D-PAK (TO-252)
MOSFET Maximum Ratings TC = 25 °C unless otherwise noted Symbol Parameter Ratings Units VDS Drain to Source Voltage
VGS Gate to Source Voltage ±20 Drain Current -Continuous (Package limited) TC = 25 °C 50 -Continuous (Silicon limited) TC = 25 °C
-Continuous TA = 25 °C (Note 1a) -Pulsed EAS Single Pulse Avalanche Energy (Note 3) m J Power Dissipation TC = 25 °C
Power Dissipation TA = 25 °C (Note 1a) 3.1
TJ, TSTG Operating and Storage Junction Temperature Range -55 to +150 °C
Thermal Characteristics
RθJC Thermal Resistance, Junction to Case 0.94
RθJA Thermal Resistance, Junction to Ambient (Note 1a)
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD86250 FDD86250 D-PAK(TO-252) 13 ’’ 12 mm 2500 units
©2010 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDD86250 Rev.C
