Fairchild FDD86102LZ User Guide

Summary

This datasheet covers the Fairchild FDD86102LZ N-Channel PowerTrench MOSFET, a high-performance component ideal for DC-DC converters and inverters. Designed for efficiency, it offers low on-state resistance and fast switching speeds, making it suitable for synchronous rectification applications.

📄 Preview PAGE OF 6

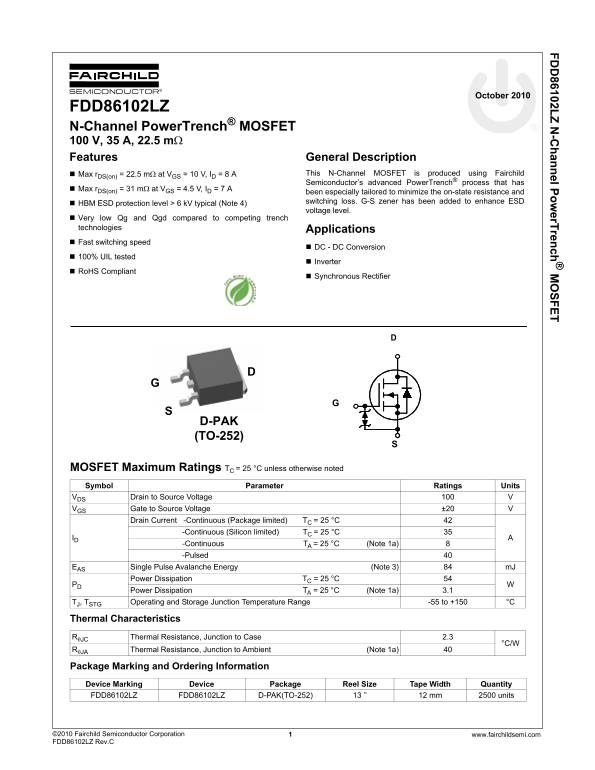

Page 1 Text Content

FD 86102LZ N -C hannel Pow er Trench SFET

October 2010

FDD86102LZ N-Channel Power Trench® MOSFET 100 V, 35 A, 22.5 mΩ Features General Description

Max r DS(on) = 22.5 mΩ at VGS = 10 V, ID = 8 A This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced Power Trench® process that has

Max r DS(on) = 31 mΩ at VGS = 4.5 V, ID = 7 A

been especially tailored to minimize the on-state resistance and switching loss. G-S zener has been added to enhance ESD

HBM ESD protection level > 6 k V typical (Note 4)

voltage level.

Very low Qg and Qgd compared to competing trench technologies Applications Fast switching speed

DC - DC Conversion

100% UIL tested

Inverter

Ro HS Compliant

Synchronous Rectifier

TO-252D-PAK (TO-252)

MOSFET Maximum Ratings TC = 25 °C unless otherwise noted Symbol Parameter Ratings Units VDS Drain to Source Voltage

VGS Gate to Source Voltage ±20 Drain Current -Continuous (Package limited) TC = 25 °C 42 -Continuous (Silicon limited) TC = 25 °C

-Continuous TA = 25 °C (Note 1a) -Pulsed EAS Single Pulse Avalanche Energy (Note 3) m J Power Dissipation TC = 25 °C 54

Power Dissipation TA = 25 °C (Note 1a) 3.1

TJ, TSTG Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Characteristics

RθJC Thermal Resistance, Junction to Case 2.3

RθJA Thermal Resistance, Junction to Ambient (Note 1a)

Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD86102LZ FDD86102LZ D-PAK(TO-252) 13 ’’ 12 mm 2500 units

©2010 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDD86102LZ Rev.C

Page Summary Contents For Fairchild FDD86102LZ User Guide

Page 1 FD 86102LZ N -C hannel Pow er Trench SFET October 2010 FDD86102LZ N-Channel Power Trench® MOSFET 100 V, 35 A, 22.5 mΩ Features General Description Max r DS(on) = 22.5 mΩ at VGS = 10 V, ID = 8 A This N...
Page 2 FD 86102LZ N -C hannel Pow er Trench SFET Electrical Characteristics TJ = 25 °C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain to Source Brea...
Page 3 FD 86102LZ N -C hannel Pow er Trench SFET Typical Characteristics TJ = 25 °C unless otherwise noted LI ZE , D IN EN (A , D IN EN (A IN -R ES IS TA VGS = 10 V VGS = 4.5 V VGS = 2.5 V VGS = 3 V VGS = 3....
Page 4 FD 86102LZ N -C hannel Pow er Trench SFET Typical Characteristics TJ = 25 °C unless otherwise noted , D IN EN (A S, VA LA EN (A S, TE VO LT (V ID = 8 A VDD = 25 V VDD = 50 V VDD = 75 V f = 1 MHz VGS =...
Page 5 FD 86102LZ N -C hannel Pow er Trench SFET Typical Characteristics TJ = 25 °C unless otherwise noted LI ZE ER EA SI EN PO ER (W IM PE E, θJ (P ), P SINGLE PULSE RθJC = 2.3 o C/W TC = 25 o C t, PULSE WI...
Page 6 FD 86102LZ N -C hannel Pow er Trench SFET TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, a...

Manual Details

Brand Fairchild
Pages 6
File Size 365.92 KB
Published June 15, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum drain-source voltage?

100 V.

What is the on-resistance (rDS(on)) at Vgs = 10 V and Id = 8 A?

22.5 mΩ max.

What is the typical HBM ESD protection level?

> 6 kV typical.

What is the junction-to-case thermal resistance?

2.3 °C/W.

What are the typical applications of this MOSFET?

DC-DC conversion, inverter, and synchronous rectifier.
