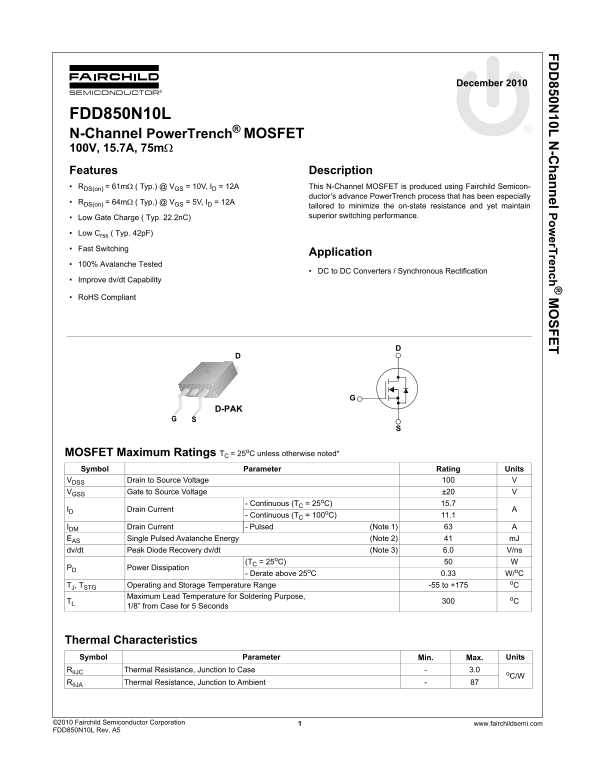

FD 850N 10L N -C hannel Pow er Trench SFET
December 2010
FDD850N10L N-Channel Power Trench® MOSFET 100V, 15.7A, 75mΩ Features Description RDS(on) = 61mΩ ( Typ.) @ VGS = 10V, ID = 12A This N-Channel MOSFET is produced using Fairchild Semicon-
ductor’s advance Power Trench process that has been especially
RDS(on) = 64mΩ ( Typ.) @ VGS = 5V, ID = 12A
tailored to minimize the on-state resistance and yet maintain Low Gate Charge ( Typ. 22.2n C) superior switching performance.
Low Crss ( Typ. 42p F)
Fast Switching
Application
100% Avalanche Tested
DC to DC Converters / Synchronous Rectification
Improve dv/dt Capability
Ro HS Compliant
D-PAK
MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter Rating Units
VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±20
- Continuous (TC = 25o C) 15.7
ID Drain Current
- Continuous (TC = 100o C) 11.1
IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 6.0 V/ns
(TC = 25o C)
PD Power Dissipation
- Derate above 25o C 0.33 W/o C
TJ, TSTG Operating and Storage Temperature Range -55 to +175 Maximum Lead Temperature for Soldering Purpose, o C
1/8” from Case for 5 Seconds
Thermal Characteristics Symbol Parameter Min. Max. Units
RθJC Thermal Resistance, Junction to Case - 3.0
RθJA Thermal Resistance, Junction to Ambient -
