Fairchild FDD6770A Product Specifications

Summary

This high-performance N-Channel Power MOSFET is engineered for maximum efficiency in DC/DC converters and linear power regulation. Optimized with ultra-low on-resistance ($R_{DS(on)}$) and fast switching capabilities, it ensures optimal performance in demanding environments. This manual provides detailed technical specifications, including full electrical characteristics, thermal analysis, and mechanical ratings. It is an essential resource for hardware engineers designing Vcore DC/DC or VRM solutions for servers, desktop computers, and intermediate bus architectures.

📄 Preview PAGE OF 6

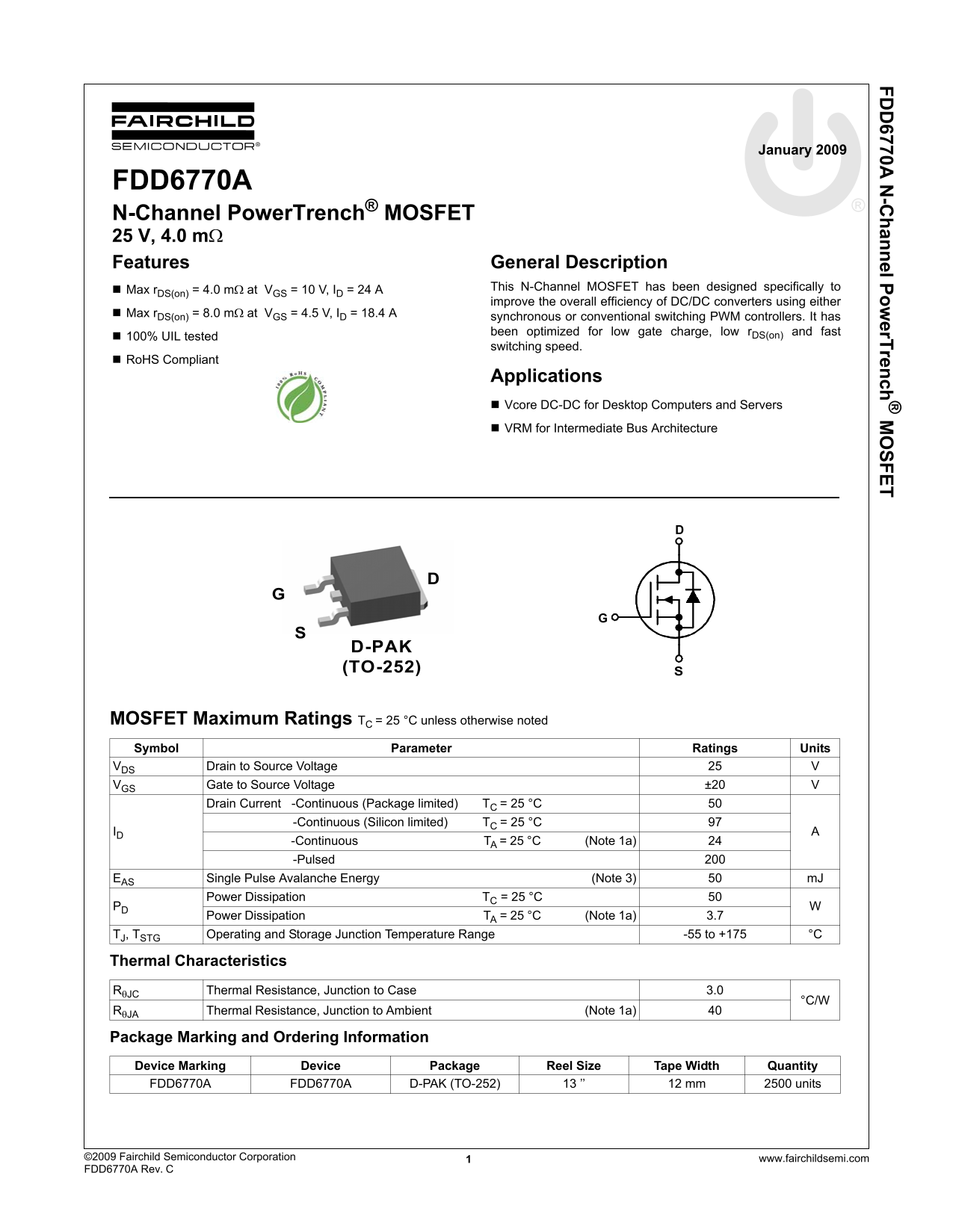

Page 1 Text Content

FD 6770A -C hannel Pow er Trench SFET

January 2009

FDD6770A N-Channel Power Trench® MOSFET 25 V, 4.0 mΩ Features General Description

Max r DS(on) = 4.0 mΩ at VGS = 10 V, ID = 24 A This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either

Max r DS(on) = 8.0 mΩ at VGS = 4.5 V, ID = 18.4 A

synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low r DS(on) and fast

100% UIL tested

switching speed.

Ro HS Compliant

Applications Vcore DC-DC for Desktop Computers and Servers VRM for Intermediate Bus Architecture

TO-252D-PAK (TO-252)

MOSFET Maximum Ratings TC = 25 °C unless otherwise noted Symbol Parameter Ratings Units

VDS Drain to Source Voltage VGS Gate to Source Voltage ±20 Drain Current -Continuous (Package limited) TC = 25 °C 50 -Continuous (Silicon limited) TC = 25 °C

-Continuous TA = 25 °C (Note 1a) -Pulsed EAS Single Pulse Avalanche Energy (Note 3) m J Power Dissipation TC = 25 °C

Power Dissipation TA = 25 °C (Note 1a) 3.7

TJ, TSTG Operating and Storage Junction Temperature Range -55 to +175 °C

Thermal Characteristics

RθJC Thermal Resistance, Junction to Case 3.0

RθJA Thermal Resistance, Junction to Ambient (Note 1a)

Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD6770A FDD6770A D-PAK (TO-252) 13 ’’ 12 mm 2500 units

©20 09 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FD D6770A Rev.C

Page Summary Contents For Fairchild FDD6770A Product Specifications

Page 1 FD 6770A -C hannel Pow er Trench SFET January 2009 FDD6770A N-Channel Power Trench® MOSFET 25 V, 4.0 mΩ Features General Description Max r DS(on) = 4.0 mΩ at VGS = 10 V, ID = 24 A This N-Channel MOSFE...
Page 2 FD 6770A -C hannel Pow er Trench SFET Electrical Characteristics TJ = 25 °C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain to Source Breakdow...
Page 3 FD 6770A -C hannel Pow er Trench SFET Typical Characteristics TJ = 25 °C unless otherwise noted LI ZE , D IN EN (A IN -R ES IS TA , D IN EN (A VGS = 10 V VGS = 6 V PULSE DURATION = 80 µs 3.5 DUTY CYCL...
Page 4 FD 6770A -C hannel Pow er Trench SFET Typical Characteristics TJ = 25 °C unless otherwise noted , D IN EN (A TJ = 25 o C S, VA LA EN (A TE VO LT (V ID = 24 A VDD = 10 V VDD = 13 V VDD = 15 V f = 1 MHz...
Page 5 FD 6770A -C hannel Pow er Trench SFET Typical Characteristics TJ = 25 °C unless otherwise noted LI ZE ER LI ZE ER IM PE E, θJ IM PE E, θJ DUTY CYCLE-DESCENDING ORDER 0.1 PDM NOTES: DUTY FACTOR: D = t1...
Page 6 FD 6770A -C hannel Pow er Trench SFET TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and i...

Manual Details

Brand Fairchild
Pages 6
File Size 310.47 KB
Published July 15, 2026
2 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum specified drain-source on resistance?

The rated rDS(on) is a low of 8.0 mΩ at V = 4.5 V and I = 18.4 A.

What temperature range can this MOSFET operate within?

The operating junction temperature range for the component is -55 to +175 °C.

Which types of DC/DC converters are optimized for this component's use?

It is designed for efficiency in both synchronous and conventional switching PWM controllers.
