A high-performance N-Channel Power Trench MOSFET designed to boost efficiency in DC/DC converters and intermediate bus architectures. This component boasts ultra-low on-resistance (rDS(on)) and fast switching characteristics, making it ideal for power management applications. The detailed manual covers comprehensive electrical ratings, including thermal specs and breakdown voltages, ensuring optimal integration into demanding computing infrastructure like desktop servers and high-power VRMs.

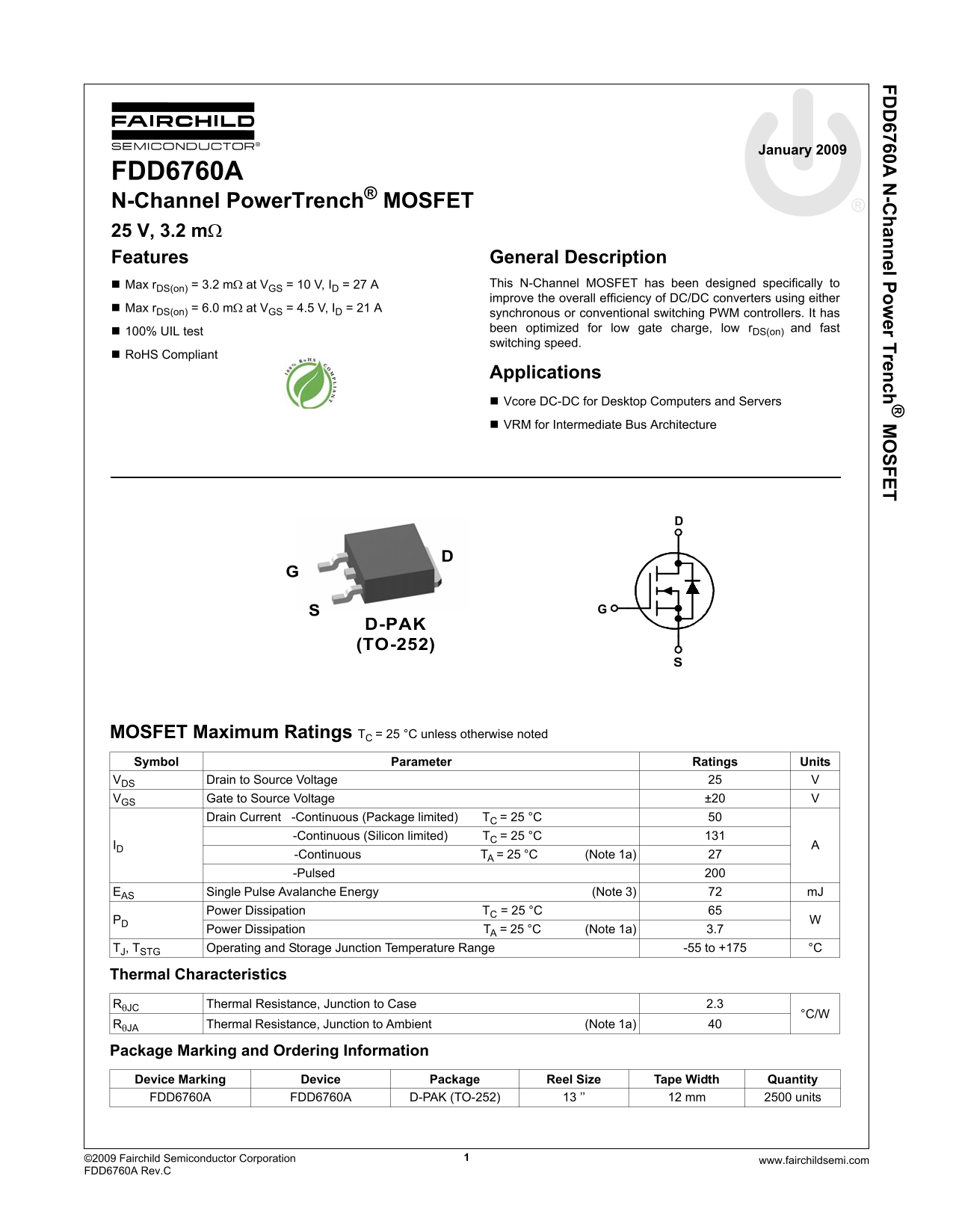

Page 1 Text Content
FD 6760A -C hannel Pow er Trench SFET
January 2009
FDD6760A N-Channel Power Trench® MOSFET 25 V, 3.2 mΩ Features General Description
Max r DS(on) = 3.2 mΩ at VGS = 10 V, ID = 27 A This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either
Max r DS(on) = 6.0 mΩ at VGS = 4.5 V, ID = 21 A
synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low r DS(on) and fast
100% UIL test
switching speed.
Ro HS Compliant
Applications Vcore DC-DC for Desktop Computers and Servers VRM for Intermediate Bus Architecture
TO-252D-PAK (TO-252)
MOSFET Maximum Ratings TC = 25 °C unless otherwise noted Symbol Parameter Ratings Units VDS Drain to Source Voltage
VGS Gate to Source Voltage ±20 Drain Current -Continuous (Package limited) TC = 25 °C 50 -Continuous (Silicon limited) TC = 25 °C
-Continuous TA = 25 °C (Note 1a) -Pulsed EAS Single Pulse Avalanche Energy (Note 3) m J Power Dissipation TC = 25 °C
Power Dissipation TA = 25 °C (Note 1a) 3.7
TJ, TSTG Operating and Storage Junction Temperature Range -55 to +175 °C
Thermal Characteristics
RθJC Thermal Resistance, Junction to Case 2.3
RθJA Thermal Resistance, Junction to Ambient (Note 1a)
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD6760A FDD6760A D-PAK (TO-252) 13 ’’ 12 mm 2500 units
©2009 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDD6760A Rev.C
Page Summary Contents For Fairchild FDD6760A User's Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 6 |
| File Size | 323.83 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What primary applications is this N-Channel MOSFET designed for?
It is designed to improve efficiency in DC/DC converters using PWM controllers, suitable for Vcore DC-DC in desktop computers and servers, or VRM for Intermediate Bus Architecture.
How is the total thermal resistance (R) calculated?
The total thermal resistance is found by summing the junction-to-case ($ heta_{JC}$) and case-to-ambient ($ heta_{JA}$) thermal resistances. Note that $ heta_{TA}$ varies based on mounting conditions.
