Fairchild FDC6420C User's Manual

Summary

Discover the FDC6420C series: high-performance N & P-Channel MOSFETs engineered using advanced PowerTrench technology for exceptional efficiency and power dissipation. Designed for minimal on-state resistance in a highly compact SuperSOT-6 package, these components are ideal for engineers developing portable and space-constrained electronics. The included manual provides comprehensive technical specifications, including detailed electrical characteristics, switching parameters, and thermal data, making it easy to integrate the MOSFETs into critical applications such as DC/DC converters, load switches, and LCD display inverters.

📄 Preview PAGE OF 8

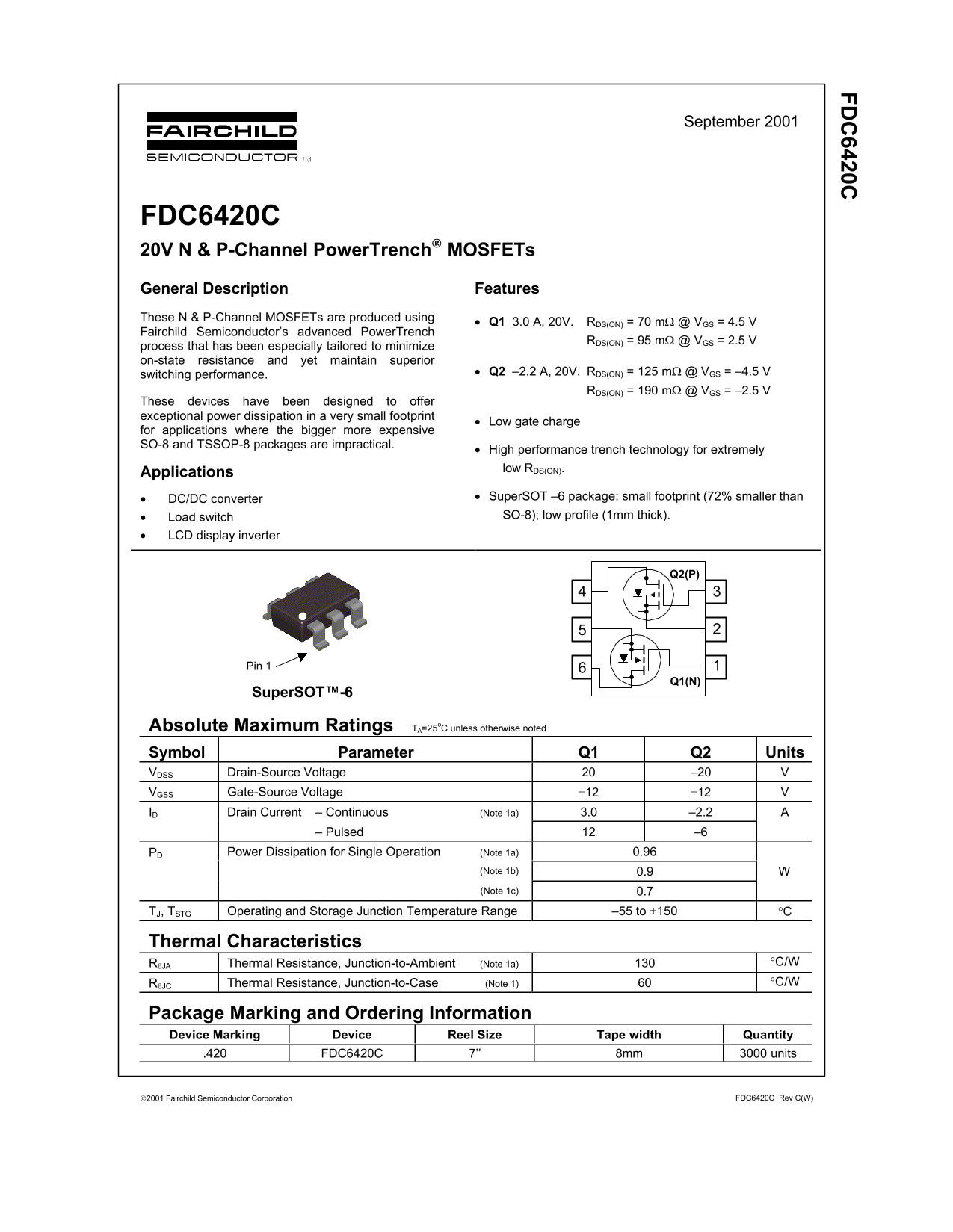

Page 1 Text Content

FD 6420C

September 2001

FDC6420C 20V N & P-Channel Power Trench MOSFETs General Description Features These N & P-Channel MOSFETs are produced using

• Q1 3.0 A, 20V. RDS(ON) = 70 mΩ @ VGS = 4.5 V

Fairchild Semiconductor’s advanced Power Trench

RDS(ON) = 95 mΩ @ VGS = 2.5 V

process that has been especially tailored to minimize on-state resistance and yet maintain superior

switching performance. • Q2 –2.2 A, 20V. RDS(ON) = 125 mΩ @ VGS = –4.5 V

RDS(ON) = 190 mΩ @ VGS = –2.5 V

These devices have been designed to offer exceptional power dissipation in a very small footprint

• Low gate charge

for applications where the bigger more expensive SO-8 and TSSOP-8 packages are impractical.

• High performance trench technology for extremely low RDS(ON).

Applications

• DC/DC converter • Super SOT –6 package: small footprint (72% smaller than • Load switch SO-8); low profile (1mm thick).

• LCD display inverter

Super SOT -6TM

Pin 1

Super SOT™-6

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Q1 Q2 Units VDSS Drain-Source Voltage –20 VGSS Gate-Source Voltage ±12 ±12 ID Drain Current – Continuous (Note 1a) 3.0 –2.2

– Pulsed –6

PD Power Dissipation for Single Operation (Note 1a) 0.96

(Note 1b) 0.9 (Note 1c) 0.7

TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C

Thermal Characteristics

RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity

.420 FDC6420C 7’’ 8mm 3000 units

2001 Fairchild Semiconductor Corporation FDC6420C Rev C(W)

Page Summary Contents For Fairchild FDC6420C User's Manual

Page 1 FD 6420C September 2001 FDC6420C 20V N & P-Channel Power Trench MOSFETs General Description Features These N & P-Channel MOSFETs are produced using • Q1 3.0 A, 20V. RDS(ON) = 70 mΩ @ VGS = 4....
Page 2 FD 6420C Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics VGS = 0 V, ID = 250 µA Q1 BVDSS Drain–Source Breakdown Volta...
Page 3 FD 6420C Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Drain–Source Diode Characteristics and Maximum Ratings IS Maximum Continuous Dra...
Page 4 FD 6420C Typical Characteristics: N-Channel S( LI ZE , D IN EN (A IN -S -R ES IS TA , D IN EN (A VGS = 4.5V 3.0V 2.5V VGS = 2.0V 1.8 VDS, DRAIN TO SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A) Figure 1. On...
Page 5 FD 6420C Typical Characteristics , D IN EN (A , G TE -S VO LT (V f = 1 MHz ID = 3A VDS = 5V VGS = 0 V 15V CISS Qg, GATE CHARGE (n C) VDS, DRAIN TO SOURCE VOLTAGE (V) Figure 7. Gate Charge Characterist...
Page 6 FD 6420C Typical Characteristics: P-Channel -I , D IN EN (A S( LI ZE -I , D IN EN (A IN -S -R ES IS TA VGS =- 4.5V -3.0V 2.5 -2.5V VGS = -2.0V -ID, DRAIN CURRENT (A) -VDS, DRAIN-SOURCE VOLTAGE (V) Fig...
Page 7 FD 6420C Typical Characteristics r( t), LI ZE FF EC TI VE SI EN -I , D IN EN (A -V S, TE -S VO LT (V TH ER ES IS TA VDS =- 5V f = 1MHz ID = -2.2A -10V VGS = 0 V Qg, GATE CHARGE (n C) -VDS, DRAIN TO SO...
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...

Manual Details

Brand Fairchild
Pages 8
File Size 102.58 KB
Published July 06, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What are the performance advantages of the SuperSOT™-6 package?

It provides a small footprint (72% smaller than SO-8) while maintaining a low profile, only 1mm thick.

What is the allowed operating junction temperature range?

The operating and storage junction temperature range for this device is –55 to +150°C.

How is the total thermal resistance (R) calculated?

R is determined by summing the junction-to-case ($q_{JC}$) and case-to-ambient ($q_{CA}$) thermal resistances.
