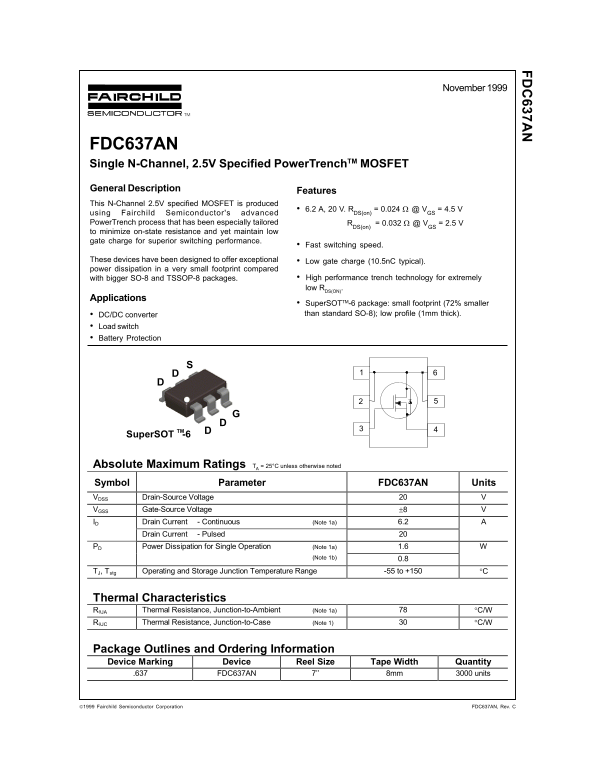

FDC637AN Single N-Channel, 2.5V Specified Power Trench TM MOSFET General Description

Features

This N-Channel 2.5V specified MOSFET is produced

using Fairchild Semiconductor's advanced DS(on) GS

Power Trench process that has been especially tailored = 0.032 Ω @ V = 2.5 V

DS(on) GS

to minimize on-state resistance and yet maintain low gate charge for superior switching performance.

Fast switching speed.

These devices have been designed to offer exceptional Low gate charge (10.5n C typical). power dissipation in a very small footprint compared

with bigger SO-8 and TSSOP-8 packages. • High performance trench technology for extremely low RDS(ON).

Applications

Super SOTTM-6 package: small footprint (72% smaller DC/DC converter than standard SO-8); low profile (1mm thick).

Load switch Battery Protection

Super SOT -6TM

Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter FDC637AN Units VDSS Drain-Source Voltage VGSS Gate-Source Voltage ±8 ID Drain Current - Continuous (Note 1a) 6.2

Drain Current - Pulsed

PD Power Dissipation for Single Operation (Note 1a) 1.6

(Note 1b) 0.8

TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Characteristics

RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

Package Outlines and Ordering Information Device Marking Device Reel Size Tape Width Quantity

.637 FDC637AN 7’’ 8mm 3000 units

1999 Fairchild Semiconductor Corporation FDC637AN, Rev. C

Page Summary Contents For Fairchild FDC637AN User Guide

Page 1 November 1999 FDC637AN Single N-Channel, 2.5V Specified Power Trench TM MOSFET General Description Features This N-Channel 2.5V specified MOSFET is produced using Fairchild Semiconductor's advanced DS...
Page 2 Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA 20 V ∆BVD...
Page 3 Typical Characteristics , D IN (O IZ , D IN IN -S -R IS VGS= 4.5V 2.5V VGS= 2.0V VDS, DRAIN TO SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A) Figure 1. On-Region Characteristics. Figure 2. On-Resistance Var...
Page 4 637A Typical Characteristics (continued) , D IN r( t) , N IZ IV IE IS TA VDS = 5V f = 1MHz ID = 6.2A 10V 15V VGS = 0V Coss Crss Qg, GATE CHARGE (n C) VDS, DRAIN TO SOURCE VOLTAGE (V) Figure 7. Gate-Ch...
