Fairchild FDC6305N User Guide

Summary

This datasheet from Fairchild Semiconductor covers the FDC6305N dual N-channel PowerTrench MOSFET specified for 2.5 V gate drive operation, housed in the SuperSOT-6 package with a footprint 72 percent smaller than standard SO-8 and a 1 mm low profile. Key specifications include a 20 V drain-source breakdown voltage, 2.7 A continuous drain current, on-state resistance of 0.08 ohms at 4.5 V gate drive decreasing to 0.12 ohms at 2.5 V, and a typical gate charge of 3.5 nC for fast switching performa

📄 Preview PAGE OF 5

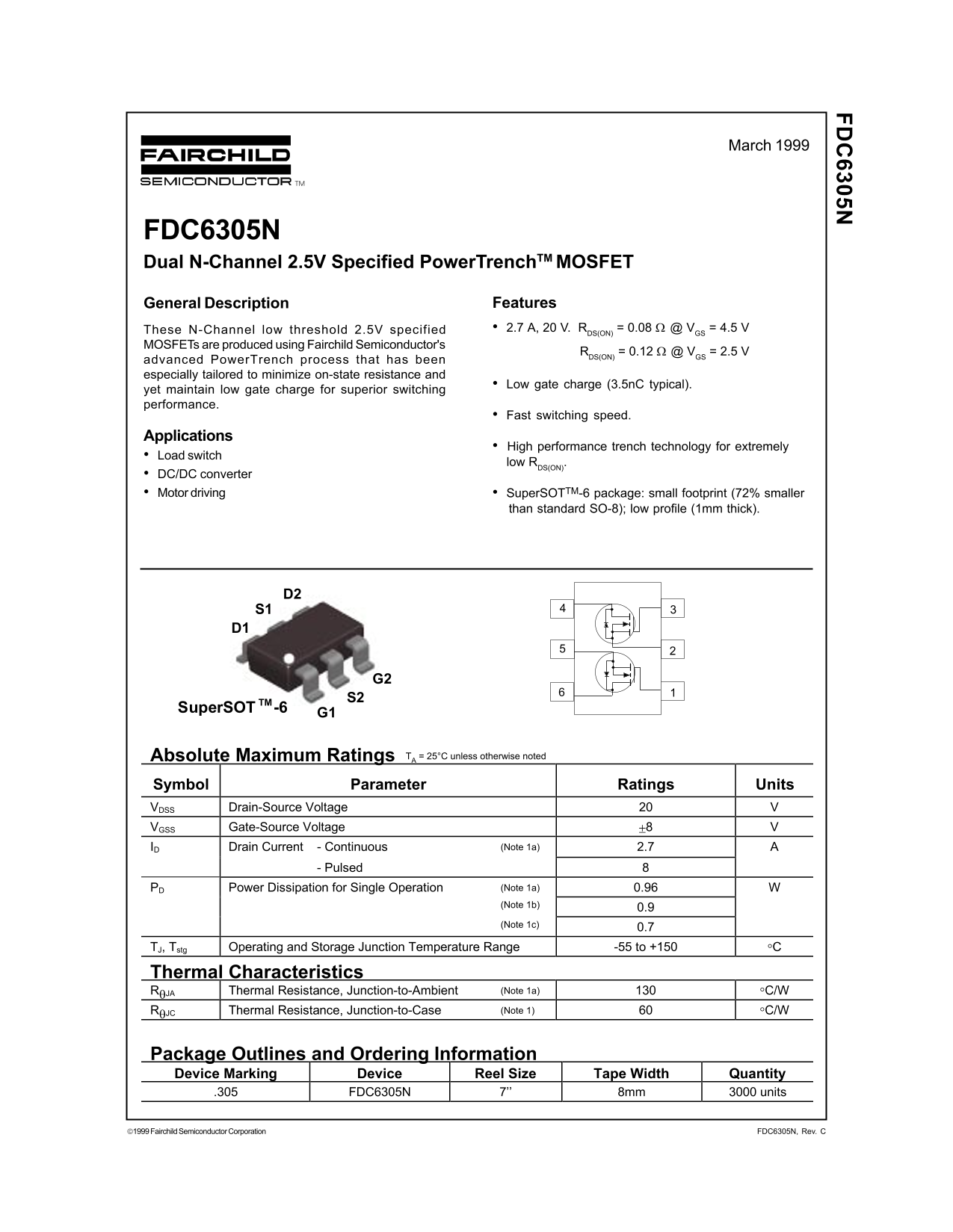

Page 1 Text Content

March 1999

FDC6305N Dual N-Channel 2.5V Specified Power Trench TM MOSFET

General Description Features These N-Channel low threshold 2.5V specified 2.7 A, 20 V. RDS(ON) = 0.08 Ω @ VGS = 4.5 V

MOSFETs are produced using Fairchild Semiconductor's

RDS(ON) = 0.12 Ω @ VGS = 2.5 V

advanced Power Trench process that has been especially tailored to minimize on-state resistance and

Low gate charge (3.5n C typical).

yet maintain low gate charge for superior switching performance.

Fast switching speed.

Applications

• High performance trench technology for extremely

Load switch

low R DS(ON)

DC/DC converter Motor driving Super SOTTM-6 package: small footprint (72% smaller

than standard SO-8); low profile (1mm thick).

Super SOT -6TM

Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage VGSS Gate-Source Voltage ±8 ID Drain Current - Continuous (Note 1a) 2.7

- Pulsed

PD Power Dissipation for Single Operation (Note 1a) 0.96 (Note 1b)

(Note 1c)

TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Characteristics

RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

Package Outlines and Ordering Information Device Marking Device Reel Size Tape Width Quantity

.305 FDC6305N 7’’ 8mm 3000 units

1999 Fairchild Semiconductor Corporation FDC6305N, Rev. C

Page Summary Contents For Fairchild FDC6305N User Guide

Page 1 March 1999 FDC6305N Dual N-Channel 2.5V Specified Power Trench TM MOSFET General Description Features These N-Channel low threshold 2.5V specified 2.7 A, 20 V. RDS(ON) = 0.08 Ω @ VGS = 4.5 V MOSFETs a...
Page 2 Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS Br...
Page 3 6305N Typical Characteristics , D IN (O IZ , D IN IN -S -R IS VGS = 4.5V 1.4 VGS = 2.5V 0.5 1.5 2.5 VDS, DRAIN TO SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A) Figure 1. On-Region Characteristics. Figure 2...
Page 4 6305N Typical Characteristics (continued) , D IN , G -S r( t) , N IZ IV IE IS TA ID = 2.7A f = 1MHz VDS = 5V VGS = 0 V COSS CRSS Qg, GATE CHARGE (n C) VDS, DRAIN TO SOURCE VOLTAGE (V) Figure 7. Gate-C...
Page 5 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ ISOP...

Manual Details

Brand Fairchild
Pages 5
File Size 73.70 KB
Published July 07, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What primary benefits make this MOSFET highly efficient?

It uses an advanced PowerTrench process to ensure superior switching performance by minimizing on-state resistance and maintaining low gate charge.

How must I account for heat dissipation when designing a circuit?

The thermal resistance (Rth) depends heavily on the user's board design; it is crucial to use appropriate mounting pads and calculate total power dissipation relative to junction temperature limits.

Can this component be used in life support medical devices?

No. The manufacturer states that these products are not authorized for use as critical components in life support systems without explicit written approval.
