Fairchild FDC606P User Guide

Summary

This high-performance P-Channel PowerTrench MOSFET is engineered for optimized power efficiency and fast switching in demanding electronic systems. Ideal for specialized applications such as battery management, load switching, and circuit protection where low on-resistance ($R_{DS(ON)}$) is critical. The accompanying manual provides comprehensive technical specifications, covering absolute maximum ratings, detailed electrical characteristics, thermal performance curves (temperature and current variation), ensuring reliability for advanced power design projects.

📄 Preview PAGE OF 5

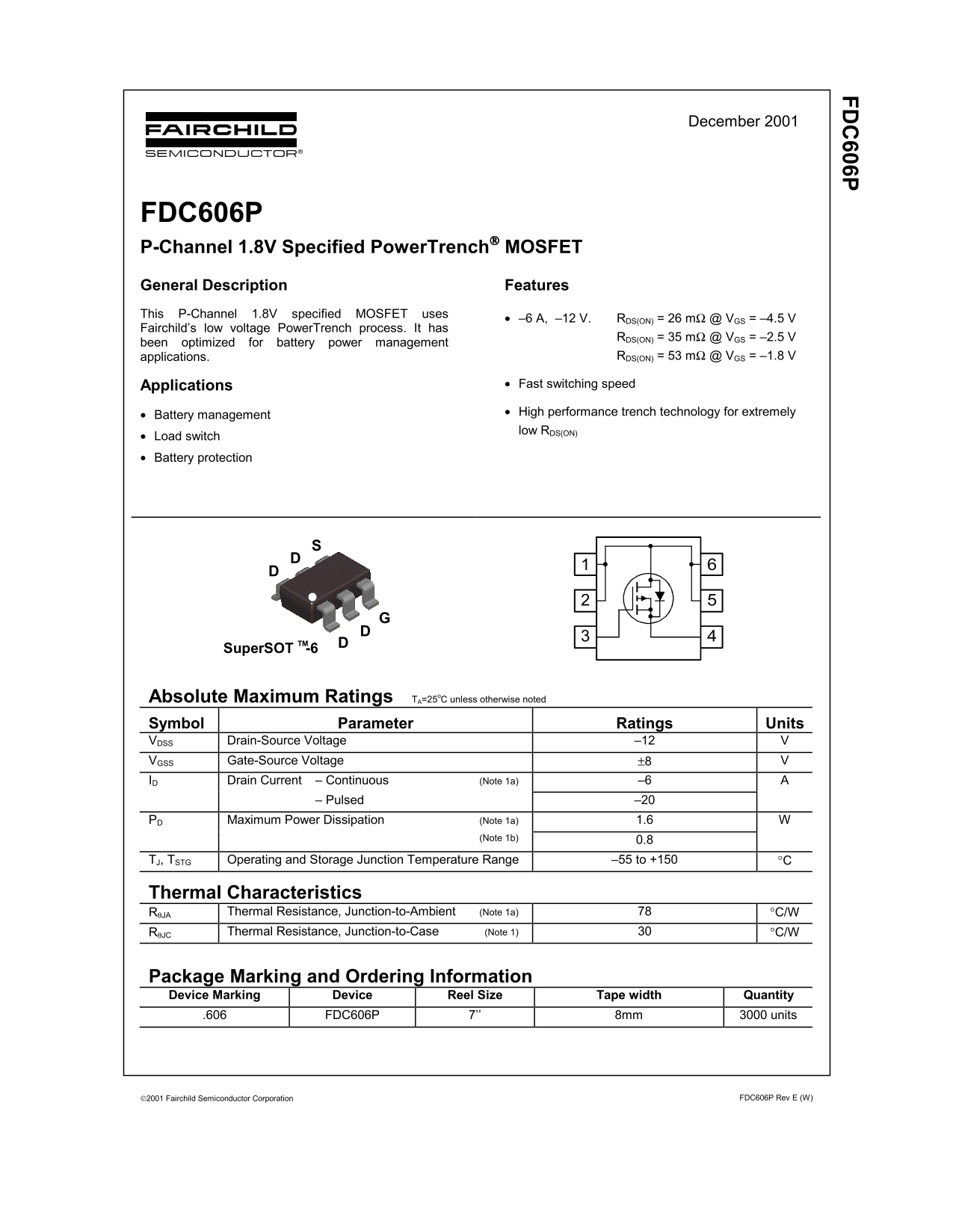

Page 1 Text Content

FD 606P December 2001

FDC606P P-Channel 1.8V Specified Power Trench MOSFET General Description Features This P-Channel 1.8V specified MOSFET uses

• –6 A, –12 V. RDS(ON) = 26 mΩ @ VGS = –4.5 V

Fairchild’s low voltage Power Trench process. It has

RDS(ON) = 35 mΩ @ VGS = –2.5 V

been optimized for battery power management

applications. RDS(ON) = 53 mΩ @ VGS = –1.8 V

Applications • Fast switching speed

• High performance trench technology for extremely

• Battery management

low RDS(ON)

• Load switch • Battery protection

Super SOT -6TM

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage –12 V VGSS Gate-Source Voltage ±8 V ID Drain Current – Continuous (Note 1a) –6 A – Pulsed –20

Maximum Power Dissipation (Note 1a) 1.6 W PD (Note 1b) 0.8

TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C

Thermal Characteristics RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) 78 °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) 30 °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity .606 FDC606P 7’’ 8mm 3000 units

2001 Fairchild Semiconductor Corporation FDC606P Rev E (W)

Page Summary Contents For Fairchild FDC606P User Guide

Page 1 FD 606P December 2001 FDC606P P-Channel 1.8V Specified Power Trench MOSFET General Description Features This P-Channel 1.8V specified MOSFET uses • –6 A, –12 V. RDS(ON) = 26 mΩ @ VGS = –4.5 V Fairchi...
Page 2 FD 606P Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain–Source Breakdown Voltage VGS = 0 V, ID = –250 µA ...
Page 3 FD 606P S( LI ZE Typical Characteristics -I , D IN EN (A IN -S -R ES IS TA -I , D IN EN (A VGS = -4.5V -2.5V VGS=-1.5V -VDS, DRAIN TO SOURCE VOLTAGE (V) -ID, DRAIN CURRENT (A) Figure 1. On-Region Char...
Page 4 FD 606P Typical Characteristics r( t), LI ZE FF EC TI VE SI EN -I , D IN EN (A TH ER ES IS TA -V S, TE -S VO LT (V VDS = -4V f = 1 MHz ID = -6A -6V VGS = 0 V Qg, GATE CHARGE (n C) -VDS, DRAIN TO SOURC...
Page 5 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...

Manual Details

Brand Fairchild
Pages 5
File Size 154.53 KB
Published July 06, 2026
3 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What are the electrical characteristics of this MOSFET?

It features a Gate Threshold Voltage (GS(th)) between –0.4V and –0.5V, and a Drain-Source Breakdown Voltage (BVDS) of -12V.

How is the device rated regarding thermal performance?

The Thermal Resistance, Junction-to-Ambient ($ heta_{JA}$) is 78 °C/W when mounted on a 1in pad of 2oz copper on FR-4 board.

What application areas are recommended for this product?

It is optimized for battery power management applications, including load switch and general battery protection circuits.

What is the absolute maximum drain current rating?

The continuous Drain Current ($I_D$) is specified up to –6 A.
