Fairchild FDC2612 User's Manual

Summary

This N-Channel Power Trench MOSFET (FDC2612) is an advanced component engineered for improving the efficiency of DC/DC converters and high-speed switching PWM controllers. Optimized for power management systems, it provides low on-resistance ($R_{DS(ON)}$) and minimal gate charge, handling up to 200V drain-source voltage and 1.1A continuous current. This comprehensive technical manual covers all essential engineering data, including absolute limits, detailed electrical characteristics, switching timings, and thermal performance data necessary for power electronics designers building robust and highly efficient converter circuits.

📄 Preview PAGE OF 5

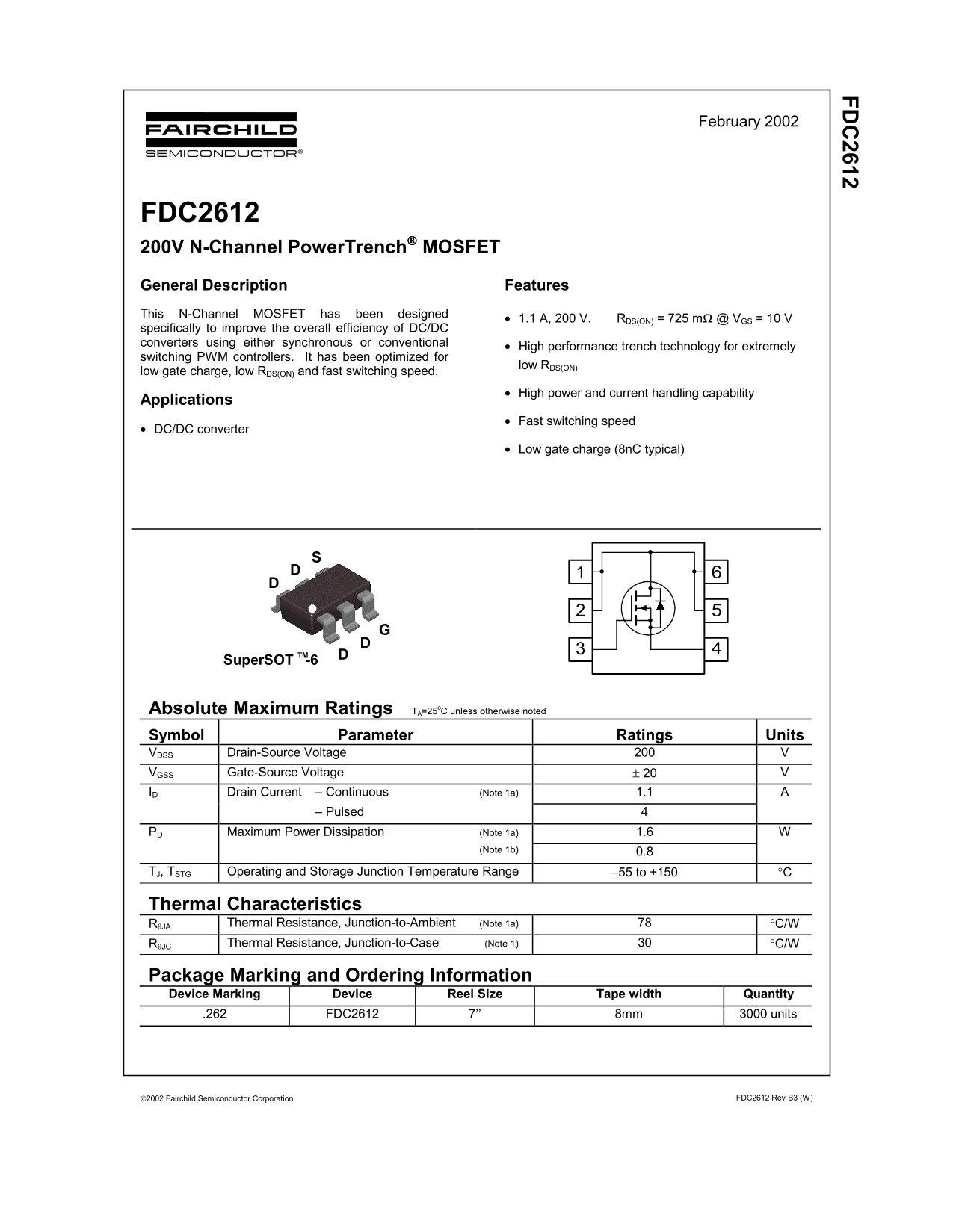

Page 1 Text Content

FD February 2002

FDC2612 200V N-Channel Power Trench MOSFET General Description Features This N-Channel MOSFET has been designed

• 1.1 A, 200 V. RDS(ON) = 725 mΩ @ VGS = 10 V

specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional

• High performance trench technology for extremely

switching PWM controllers. It has been optimized for

low RDS(ON)

low gate charge, low RDS(ON) and fast switching speed.

• High power and current handling capability

Applications

• Fast switching speed

• DC/DC converter

• Low gate charge (8n C typical)

Super SOT -6TM

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage 200 V VGSS Gate-Source Voltage ± 20 V ID Drain Current – Continuous (Note 1a) 1.1 A – Pulsed 4

Maximum Power Dissipation (Note 1a) 1.6 W PD (Note 1b) 0.8

TJ, TSTG Operating and Storage Junction Temperature Range −55 to +150 °C

Thermal Characteristics RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) 78 °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) 30 °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity .262 FDC2612 7’’ 8mm 3000 units

2002 Fairchild Semiconductor Corporation FDC2612 Rev B3 (W)

Page Summary Contents For Fairchild FDC2612 User's Manual

Page 1 FD February 2002 FDC2612 200V N-Channel Power Trench MOSFET General Description Features This N-Channel MOSFET has been designed • 1.1 A, 200 V. RDS(ON) = 725 mΩ @ VGS = 10 V specifically to improve ...
Page 2 Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain–Source Breakdown Voltage VGS = 0 V, ID = 250 µA 200 V ∆BV...
Page 3 Typical Characteristics S( LI ZE IN -S -R ES IS TA , D RA IN UR RE NT (A 1.4 , D RA IN UR RE NT (A VGS = 10V VGS = 4.0V ID, DRAIN CURRENT (A) VDS, DRAIN-SOURCE VOLTAGE (V) Figure 1. On-Region Characte...
Page 4 , D IN EN (A Typical Characteristics r( t), LI ZE FF EC TI VE S, TE -S VO LT (V TR SI EN TH ER ES IS TA ID = 1.1A VDS = 50V 100V f = 1MHz VGS = 0 V Qg, GATE CHARGE (n C) VDS, DRAIN TO SOURCE VOLTAGE (...
Page 5 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
