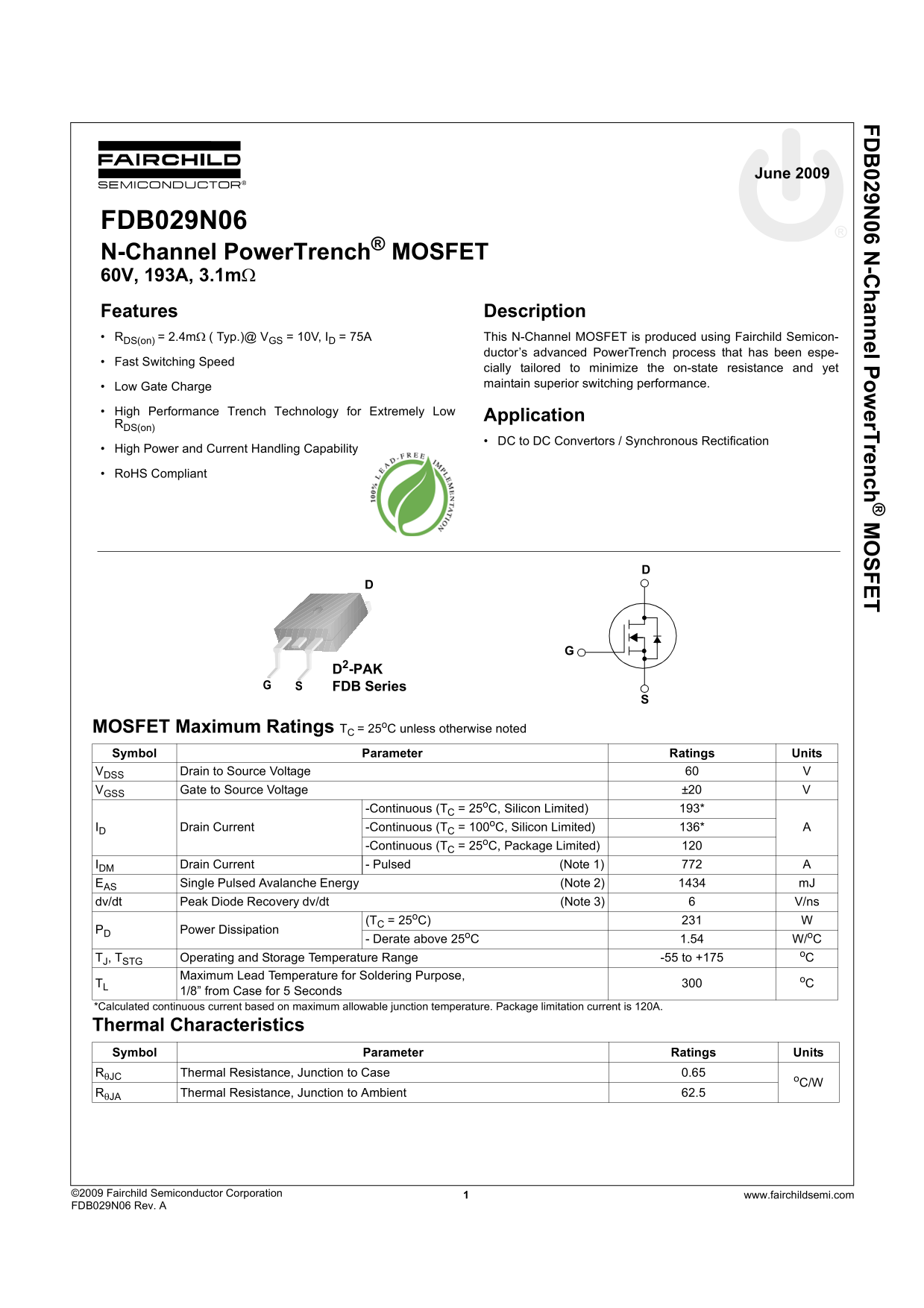

Page 1 Text Content

029N 06 N -C an el P er T ren ch

June 2009

FDB029N06 N-Channel Power Trench® MOSFET 60V, 193A, 3.1mΩ Features Description RDS(on) = 2.4mΩ ( Typ.)@ VGS = 10V, ID = 75A This N-Channel MOSFET is produced using Fairchild Semicon-

ductor’s advanced Power Trench process that has been espe-

Fast Switching Speed

cially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Low Gate Charge

High Performance Trench Technology for Extremely Low

Application

RDS(on)

DC to DC Convertors / Synchronous Rectification

High Power and Current Handling Capability

Ro HS Compliant

D2-PAK FDB Series G

MOSFET Maximum Ratings TC = 25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±20

-Continuous (TC = 25o C, Silicon Limited) 193*

ID Drain Current 136* A-Continuous (TC = 100o C, Silicon Limited)

-Continuous (TC = 25o C, Package Limited)

IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J dv/dt Peak Diode Recovery dv/dt (Note 3) V/ns

(TC = 25o C)

PD Power Dissipation

- Derate above 25o C 1.54 W/o C

TJ, TSTG Operating and Storage Temperature Range -55 to +175

Maximum Lead Temperature for Soldering Purpose, o C

1/8” from Case for 5 Seconds

*Calculated continuous current based on maximum allowable junction temperature. Package limitation current is 120A.

Thermal Characteristics Symbol Parameter Ratings Units RθJC Thermal Resistance, Junction to Case 0.65

RθJA Thermal Resistance, Junction to Ambient 62.5

©2009 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDB029N06 Rev. A

Page Summary Contents For Fairchild FDB029N06 User Guide

Page 1 029N 06 N -C an el P er T ren ch June 2009 FDB029N06 N-Channel Power Trench® MOSFET 60V, 193A, 3.1mΩ Features Description RDS(on) = 2.4mΩ ( Typ.)@ VGS = 10V, ID = 75A This N-Channel MOSFET is produced...
Page 2 029N 06 N -C an el P er T ren ch Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDB029N06 FDB029N06 D2-PAK 330mm 24mm Electrical Characteristics T...
Page 3 029N 06 N -C an el P er T ren ch ap ac it an ce [p , D ra in rr en t[ ra in -S rc -R es is ta ce Typical Performance Characteristics Figure 1. On-Region Characteristics Figure 2. Transfer Characterist...
Page 4 029N 06 N -C an el P er T ren ch , [ rm al iz ed , D ra in rr en [A ra in -S rc re ak lt ag Typical Performance Characteristics (Continued) Figure 7. Breakdown Voltage Variation Figure 8. On-Resistanc...
Page 5 029N 06 N -C an el P er T ren ch Gate Charge Test Circuit & Waveform Resistive Switching Test Circuit & Waveforms Unclamped Inductive Switching Test Circuit & Waveforms FDB029N06 Rev. A ww...
Page 6 029N 06 N -C an el P er T ren ch Peak Diode Recovery dv/dt Test Circuit & Waveforms FDB029N06 Rev. A www.fairchildsemi.com6
Page 7 029N 06 N -C an el P er T ren ch Mechanical Dimensions D2PAK Dimensions in Millimeters FDB029N06 Rev. A www.fairchildsemi.com7
