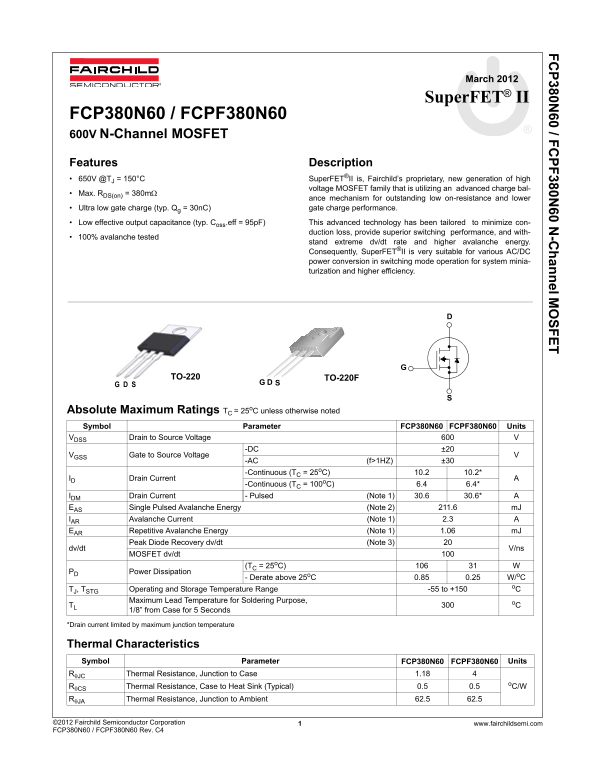

FC P380N 60 / FC PF380N 60 N -C hannel SFET
March 2012
Super FET® II
FCP380N60 / FCPF380N60 600V N-Channel MOSFET Features Description 650V @TJ = 150°C Super FET®II is, Fairchild’s proprietary, new generation of high
voltage MOSFET family that is utilizing an advanced charge bal-
Max. RDS(on) = 380mΩ
ance mechanism for outstanding low on-resistance and lower Ultra low gate charge (typ. Qg = 30n C) gate charge performance.
Low effective output capacitance (typ. Coss.eff = 95p F) This advanced technology has been tailored to minimize con- duction loss, provide superior switching performance, and with-
100% avalanche tested
stand extreme dv/dt rate and higher avalanche energy. Consequently, Super FET®II is very suitable for various AC/DC power conversion in switching mode operation for system minia- turization and higher efficiency.
TO-220FG
G D S SDTO-220
Absolute Maximum Ratings TC = 25o C unless otherwise noted Symbol Parameter FCP380N60 FCPF380N60 Units
VDSS Drain to Source Voltage
-DC ±20
VGSS Gate to Source Voltage
-AC (f>1HZ) ±30 -Continuous (TC = 25o C) 10.2 10.2*
ID Drain Current
-Continuous (TC = 100o C) 6.4 6.4*
IDM Drain Current - Pulsed (Note 1) 30.6 30.6* EAS Single Pulsed Avalanche Energy (Note 2) 211.6 m J IAR Avalanche Current (Note 1) 2.3 EAR Repetitive Avalanche Energy (Note 1) 1.06 m J Peak Diode Recovery dv/dt (Note 3)
dv/dt V/ns
MOSFET dv/dt 100
(TC = 25o C)
PD Power Dissipation
- Derate above 25o C 0.85 0.25 W/o C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 Maximum Lead Temperature for Soldering Purpose, o C
1/8” from Case for 5 Seconds
*Drain current limited by maximum junction temperature
Thermal Characteristics Symbol Parameter FCP380N60 FCPF380N60 Units RθJC Thermal Resistance, Junction to Case 1.18
o C/WRθCS
Thermal Resistance, Case to Heat Sink (Typical) 0.5 0.5 RθJA Thermal Resistance, Junction to Ambient 62.5 62.5
©2012 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FCP380N60 / FCPF380N60 Rev. C4
