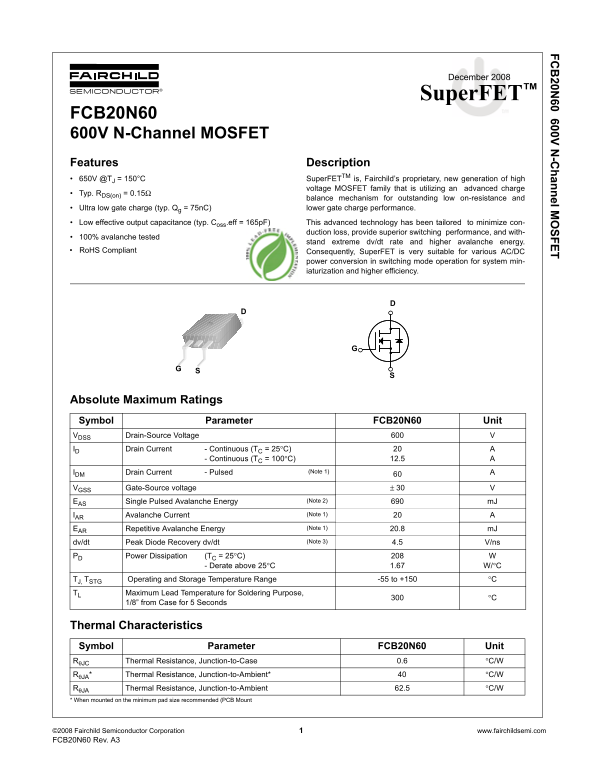

Page 1 Text Content
FC 20N 60 600V N -C hannel M SFET
December 2008
Super FET TM
FCB20N60 600V N-Channel MOSFET Features Description 650V @TJ = 150°C Super FETTM is, Fairchild’s proprietary, new generation of high
voltage MOSFET family that is utilizing an advanced charge
Typ. RDS(on) = 0.15Ω
balance mechanism for outstanding low on-resistance and
Ultra low gate charge (typ. Qg = 75n C) lower gate charge performance.
Low effective output capacitance (typ. Coss.eff = 165p F) This advanced technology has been tailored to minimize con-
duction loss, provide superior switching performance, and with-
100% avalanche tested
stand extreme dv/dt rate and higher avalanche energy.
Ro HS Compliant Consequently, Super FET is very suitable for various AC/DC
power conversion in switching mode operation for system min- iaturization and higher efficiency.
Absolute Maximum Ratings Symbol Parameter FCB20N60 Unit VDSS Drain-Source Voltage
ID Drain Current - Continuous (TC = 25°C)
- Continuous (TC = 100°C) 12.5
IDM Drain Current - Pulsed (Note 1)
VGSS Gate-Source voltage ± 30
EAS Single Pulsed Avalanche Energy (Note 2) m J
IAR Avalanche Current (Note 1)
EAR Repetitive Avalanche Energy (Note 1) 20.8 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns
PD Power Dissipation (TC = 25°C)
- Derate above 25°C 1.67 W/°C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C
TL Maximum Lead Temperature for Soldering Purpose,
1/8” from Case for 5 Seconds
Thermal Characteristics Symbol Parameter FCB20N60 Unit RθJC Thermal Resistance, Junction-to-Case 0.6 °C/W
RθJA* Thermal Resistance, Junction-to-Ambient* °C/W
RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W
* When mounted on the minimum pad size recommended (PCB Mount
©2008 Fairchild Semiconductor Corporation www.fairchildsemi.com FCB20N60 Rev. A3
