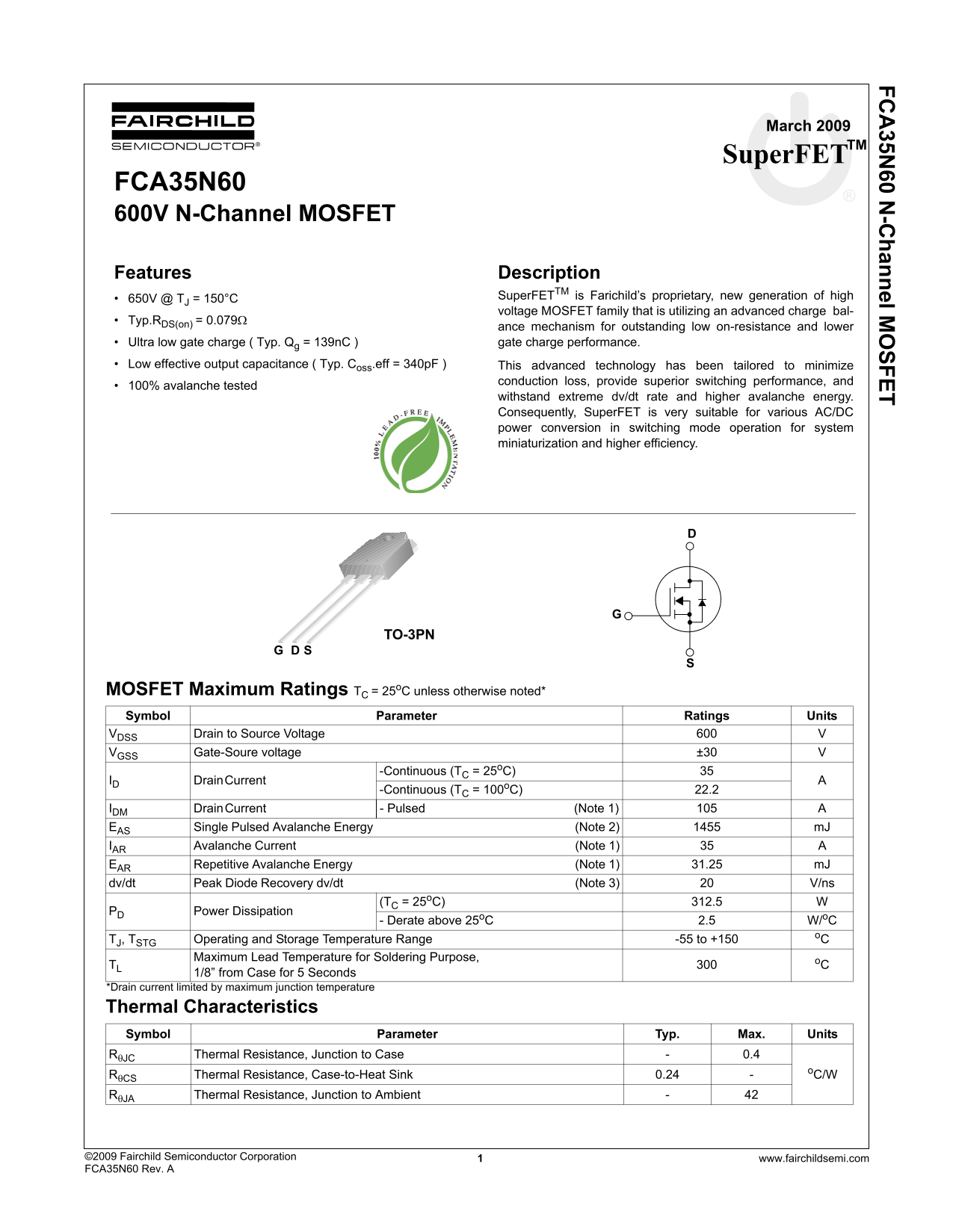

FC 35N 60 N -C hannel M SFET

March 2009

Super FETTM

FCA35N60 600V N-Channel MOSFET

Features Description

650V @ TJ = 150°C Super FETTM is Farichild’s proprietary, new generation of high voltage MOSFET family that is utilizing an advanced charge bal-

Typ.RDS(on) = 0.079Ω

ance mechanism for outstanding low on-resistance and lower Ultra low gate charge ( Typ. Qg = 139n C ) gate charge performance.

Low effective output capacitance ( Typ. Coss.eff = 340p F ) This advanced technology has been tailored to minimize

conduction loss, provide superior switching performance, and

100% avalanche tested

withstand extreme dv/dt rate and higher avalanche energy. Consequently, Super FET is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.

TO-3PN

MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter Ratings Units

VDSS Drain to Source Voltage VGSS Gate-Soure voltage ±30

-Continuous (TC = 25o C)

ID Drain Current

-Continuous (TC = 100o C) 22.2

IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) EAR Repetitive Avalanche Energy (Note 1) 31.25 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) V/ns

(TC = 25o C) 312.5

PD Power Dissipation

- Derate above 25o C 2.5 W/o C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 Maximum Lead Temperature for Soldering Purpose, o C

1/8” from Case for 5 Seconds

*Drain current limited by maximum junction temperature

Thermal Characteristics Symbol Parameter Typ. Max. Units RθJC Thermal Resistance, Junction to Case - 0.4

o C/WRθCS

Thermal Resistance, Case-to-Heat Sink 0.24 RθJA Thermal Resistance, Junction to Ambient
