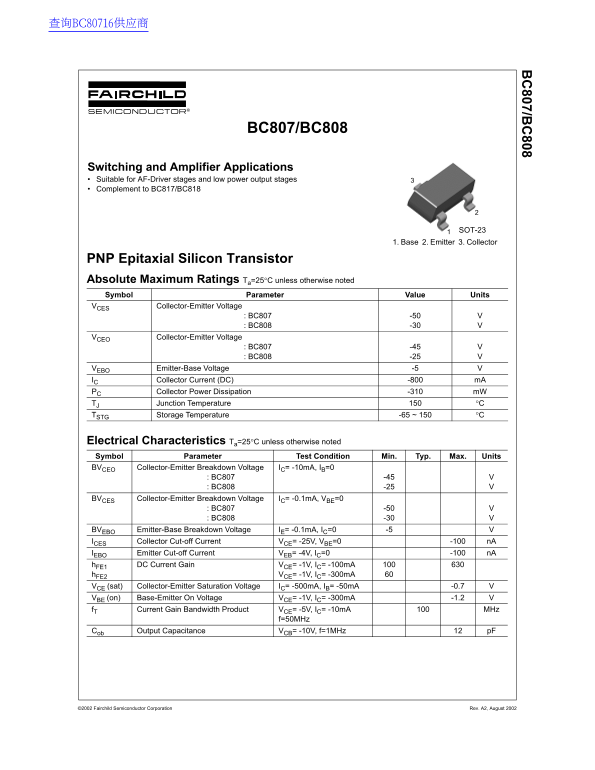

Page 1 Text Content

查询BC80716供应商

BC807/BC808

Switching and Amplifier Applications Suitable for AF-Driver stages and low power output stages Complement to BC817/BC818

SOT-23

1. Base 2. Emitter 3. Collector

PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter Value Units VCES Collector-Emitter Voltage

: BC807 -50 : BC808 -30

VCEO Collector-Emitter Voltage

: BC807 -45 : BC808 -25

VEBO Emitter-Base Voltage -5 IC Collector Current (DC) -800 m A PC Collector Power Dissipation -310 m W TJ Junction Temperature °C

TSTG Storage Temperature -65 ~ 150 °C

Electrical Characteristics Ta=25°C unless otherwise noted Symbol Parameter Test Condition Min. Typ. Max. Units BVCEO Collector-Emitter Breakdown Voltage IC= -10m A, IB=0

: BC807 -45 : BC808 -25

BVCES Collector-Emitter Breakdown Voltage IC= -0.1m A, VBE=0

: BC807 -50 : BC808 -30

BVEBO Emitter-Base Breakdown Voltage IE= -0.1m A, IC=0 -5 ICES Collector Cut-off Current VCE= -25V, VBE=0 -100 n A IEBO Emitter Cut-off Current VEB= -4V, IC=0 -100 n A h FE1 DC Current Gain VCE= -1V, IC= -100m A

h FE2 VCE= -1V, IC= -300m A

VCE (sat) Collector-Emitter Saturation Voltage IC= -500m A, IB= -50m A -0.7 VBE (on) Base-Emitter On Voltage VCE= -1V, IC= -300m A -1.2 f T Current Gain Bandwidth Product VCE= -5V, IC= -10m A MHz

f=50MHz

Cob Output Capacitance VCB= -10V, f=1MHz p F

©2002 Fairchild Semiconductor Corporation Rev. A2, August 2002

Page Summary Contents For Fairchild BC807 BC808 User's Manual

Page 1 查询BC80716供应商 BC807/BC808 Switching and Amplifier Applications Suitable for AF-Driver stages and low power output stages Complement to BC817/BC818 SOT-23 1. Base 2. Emitter 3. Collector PNP Epitaxial S...
Page 2 807/B h FE Classification Classification h FE1 100 ~ 250 160 ~ 400 250 ~ 630 h FE2 60- 100- 170- Marking Code Type 807-16 807-25 807-40 808-16 808-25 808-40 Marking 9FA 9FB 9FC 9GA 9GB 9GC ©2002 Fairc...
Page 3 807/B Typical Characteristics [m A] , C LL TO EN [m A] , C LL EC TO EN E, EN AI IB = - 80µA IB = - 70µA IB = - 4.5m AIB = - 5.0m A IB = - 60µA IB = - 4.0m A IB = - 3.5m A = - 50µA IB = - 3.0m A IB -30...
Page 4 807/B Typical Characteristics (Continued) T[ z] , G AI AN ID TH VCE = -5.0V IC[m A], COLLECTOR CURRENT Figure 7. Current Gain Bandwidth Product ©2002 Fairchild Semiconductor Corporation Rev. A2, Augus...
Page 5 807/B Package Dimensions SOT-23 0.38 REF .2 IN 1.90 ±0.03 0.508REF Dimensions in Millimeters ©2002 Fairchild Semiconductor Corporation Rev. A2, August 2002
Page 6 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...
