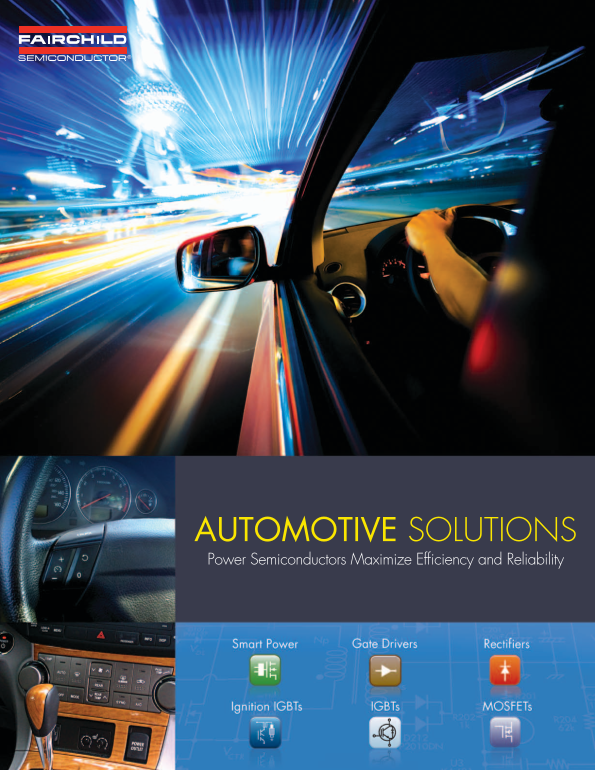

Page 1
AUTOMOTIVE SOLUTIONS Power Semiconductors Maximize Efficiency and Reliability
Page 2
INTRODUCTION Automotive Electronic Designers need suppliers who Fairchild also offers a variety of automotive products in understand their business. With a comprehensive approach un-sawn wafer, sawn w...
Page 3
TAb LE of CONTENTS KEY APPLICATIONS ............................................................................................4-6 ELECTRICAL CENTER/LOAD CONTROL ........................................
Page 4
KEY APPLICATIONS ELECTRICAL CENTER/LOAD CONTROL/POWER INVERTER Power Distribution Center The primary function of smart switches is to replace automotive relays and fuses, to protect vehicle wiring and...
Page 5
KEY APPLICATIONS DC MOTOR CONTROL/BRUSHLESS MOTOR DRIVE Fairchild products provide solutions for driving DC motors efficiently over a wide range load in full- and half-bridge configurations. For highe...
Page 6
KEY APPLICATIONS AUTOMOTIVE IGNITION/INJECTION Eco SPARK® I and Eco SPARK® 2 igniters provide 200 to 500m J SCIS energy ratings. Standard product ranges from BA TO 300 to 500V clamp. PO LY IO ES Custo...
Page 7
POWER PRODUCTS N-CHANNEL MOSFETs N-Channel MOSFETs (Trench) RDS(ON) Max. (Ω) @ VGS = Product Number BVDSS Qg Typ. (n C) ID PD RѲJC Polarity Configuration Package (20V to 25V Low Logic Level) Min. (V) ...
Page 8
POWER PRODUCTS N-CHANNEL MOSFETs N-Channel MOSFETs (Trench) RDS(ON) Max. (Ω) @ VGS = Product Number BVDSS Qg Typ. (n C) ID PD RѲJC Polarity Configuration Package (60V Logic Level) Min. (V) @ VGS = 4.5...
Page 9
POWER PRODUCTS N-CHANNEL/INJECTOR/SOLENOID DRIVER/P-CHANNEL N-Channel MOSFETs (Planar) RDS(ON) Max. (Ω) @ VGS = Product Number BVDSS Qg Typ. (n C) ID PD RѲJC Polarity Configuration Package (150V to 25...
Page 10
POWER PRODUCTS P-CHANNEL/COMPLEMENTARY PAIRS/IGBTs P-Channel MOSFETs (Trench) RDS(ON) Max. (Ω) @ VGS = Product Number BVDSS Qg Typ. (n C) ID PD RѲJC Polarity Configuration Package (-30V to -60V) Min. ...
Page 11
POWER PRODUCTS IGNITION IGBTs/CURRENT SENSING IGNITION IGBTs Ignition IGBTs VCE(sat) Max. (V) Clamp Voltage SCIS Energy IC @ 110°C tf Typ. Product Number (Max) Package Max. Test Condition Typ. Test Co...
Page 12
POWER PRODUCTS RECTIFIERS/GATE DRIVERS Ultrafast Rectifiers VF Max. Softness IR Max. VRRM IF(av) IFSM trr Max. RѲJC Product Number Configuration @150°C Factor @ 25°C Package (V) (ta/tb) (µA) Dual, Com...
Page 13
POWER PRODUCTS HIGH-SPEED, LOW-SIDE, GATE DRIVERS Low-Side Gate Drivers Fairchild’s line of high-speed, low-side gate drivers provide high peak currents of several amps that are needed to switch Power...
Page 14
POWER PRODUCTS SMART HIGH-SIDE SWITCHES/HIGH-CURRENT BRIDGES FDBS09H04 and FDDS10H04 Smart High-Side Switches The FDBS09H04 and FDDS10H04 devices provide ratiometric current monitoring of loads by a C...
Page 15
AUTOMOTIVE POWER MODULES Automotive Power Modules Fairchild provides standard and customized Automotive Power Modules for applications such as brushless DC motor control in Electrical Power Steering (...
Page 16
for a complete listing of sales representatives and sales offices, visit: www.fairchildsemi.com/cf/sales_contacts for information on fairchild products, tradeshows, seminars and other items, register ...
