Fairchild 2N7002KW N-Channel Enhancement Mode Field Effect Transistor Data Handbook
Summary
This N-Channel Enhancement Mode Field Effect Transistor is a high-performance, low on-resistance component housed in an ultra-small SOT-323 surface mount package. Ideal for modern electronics requiring fast switching speed and minimized footprint, it complies with RoHS standards. The comprehensive manual provides detailed specifications, including absolute maximum ratings, full electrical characteristics (including switching times), and typical performance graphs to assist circuit designers and engineers integrating advanced power management solutions into their designs.

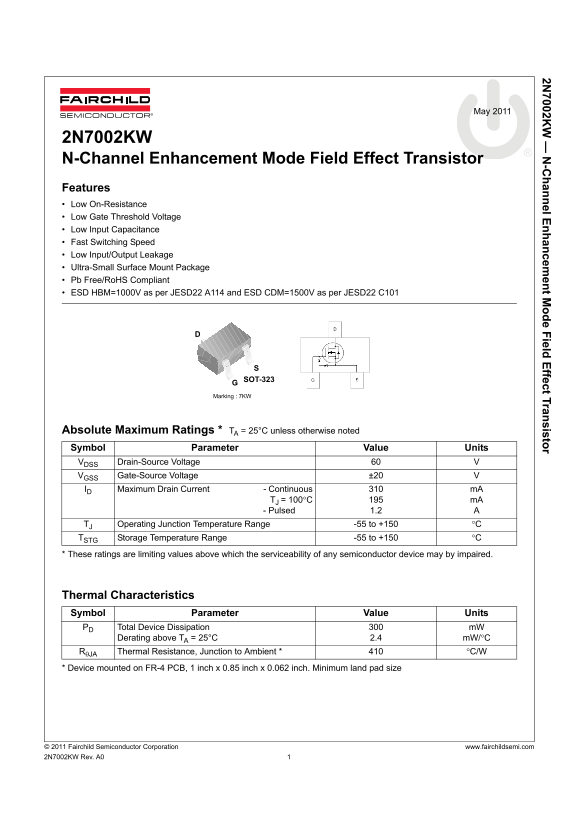

Page 1 Text Content
2N 7002K -C hannel Enhancem ent M ode Field Effect Transistor
May 2011
2N7002KW N-Channel Enhancement Mode Field Effect Transistor Features Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Ultra-Small Surface Mount Package Pb Free/Ro HS Compliant ESD HBM=1000V as per JESD22 A114 and ESD CDM=1500V as per JESD22 C101
SOT-323
Marking : 7KW
Absolute Maximum Ratings * TA = 25°C unless otherwise noted Symbol Parameter Value Units VDSS Drain-Source Voltage 60 VGSS Gate-Source Voltage ±20 ID Maximum Drain Current - Continuous m A
TJ = 100°C m A
- Pulsed 1.2 TJ Operating Junction Temperature Range -55 to +150 °C
TSTG Storage Temperature Range -55 to +150 °C * These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.
Thermal Characteristics Symbol Parameter Value Units PD Total Device Dissipation m W
Derating above TA = 25°C 2.4 m W/°C
RθJA Thermal Resistance, Junction to Ambient * °C/W * Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch. Minimum land pad size
© 2011 Fairchild Semiconductor Corporation www.fairchildsemi.com 2N7002KW Rev. A0
Page Summary Contents For Fairchild 2N7002KW N-Channel Enhancement Mode Field Effect Transistor Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 6 |
| File Size | 286.34 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating junction temperature range for this MOSFET?
The Operating Junction Temperature Range is -55 to +150 °C.
How do I ensure I purchase genuine Fairchild components?
Purchase directly from Fairchild or from an Authorized Fairchild Distributor list available on their website.
What are the typical On-Resistance values reported in the datasheet?
At 20V (10A) and 500mA, the specified R(ON) is approximately 1.6 Ω at 25°C.
